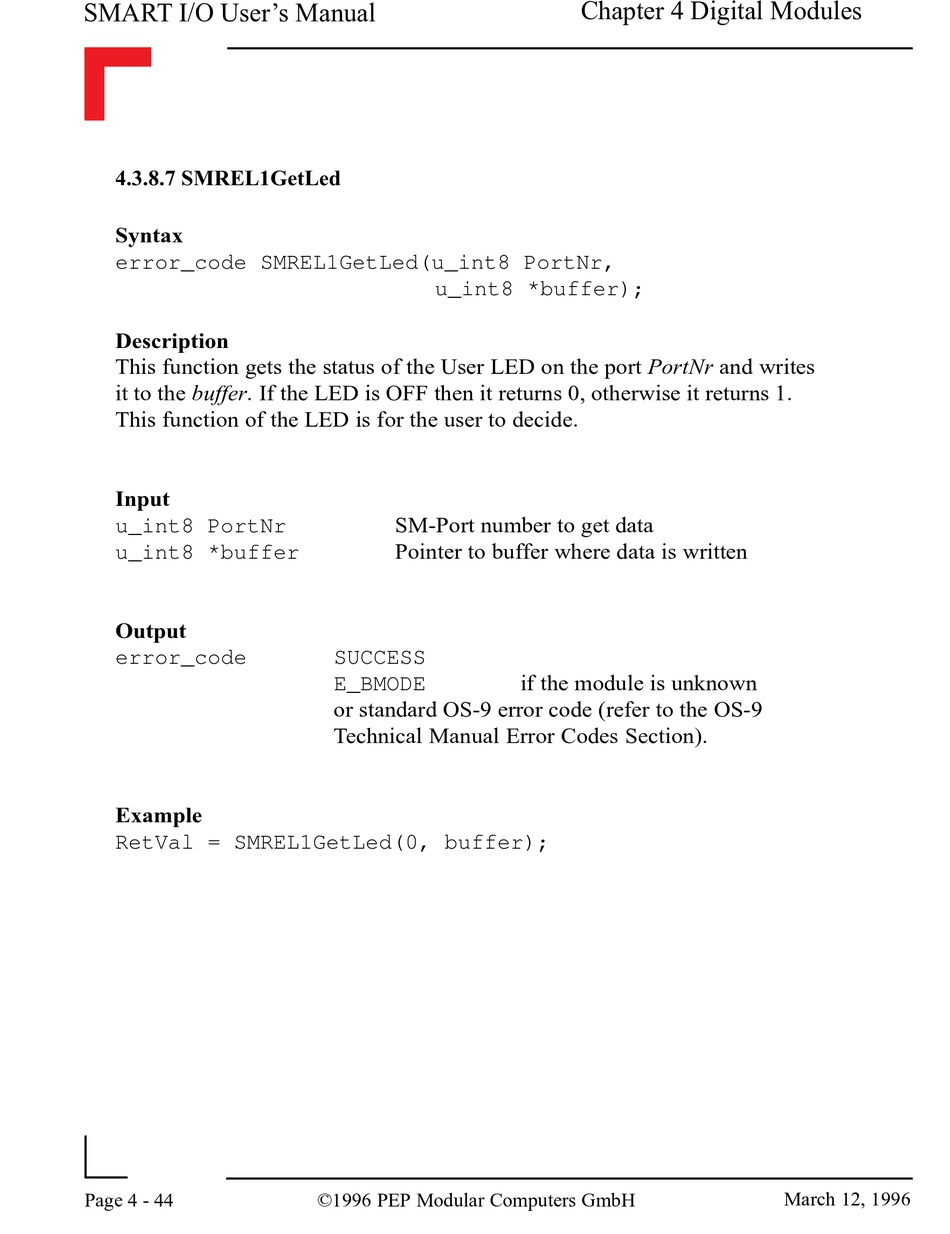

SMART I/O User's Manual
4.3.8.7 SMREL1GetLed
Syntax
error_code SMREL1GetLed(u_int8 PortNr,
Description
This function gets the status of the User LED on the port PortNr and writes
it to the buffer. If the LED is OFF then it returns 0, otherwise it returns 1.
This function of the LED is for the user to decide.
Input
u_int8 PortNr
u_int8 *buffer
Output
error_code
Example
RetVal = SMREL1GetLed(0, buffer);
Page 4 - 44
u_int8 *buffer);
SM-Port number to get data
Pointer to buffer where data is written
SUCCESS
E_BMODE
or standard OS-9 error code (refer to the OS-9
Technical Manual Error Codes Section).
©1996 PEP Modular Computers GmbH
Chapter 4 Digital Modules
if the module is unknown
March 12, 1996
