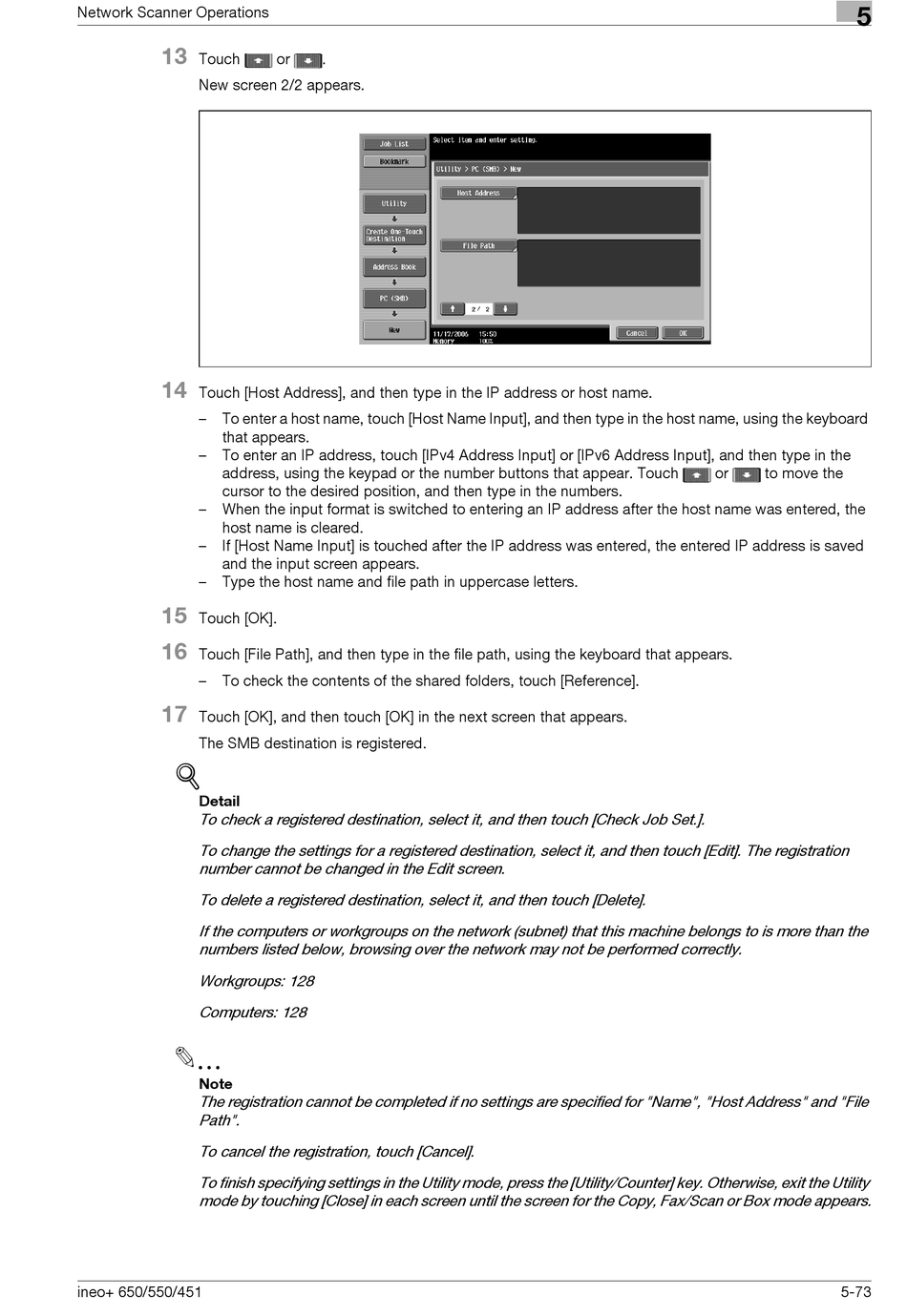

Develop ineo+ 451 User Manual page 403

Network Scanner Operations
13
Touch
New screen 2/2 appears.
14
Touch [Host Address], and then type in the IP address or host name.
– To enter a host name, touch [Host Name Input], and then type in the host name, using the keyboard
that appears.
– To enter an IP address, touch [IPv4 Address Input] or [IPv6 Address Input], and then type in the
address, using the keypad or the number buttons that appear. Touch
cursor to the desired position, and then type in the numbers.
– When the input format is switched to entering an IP address after the host name was entered, the
host name is cleared.
– If [Host Name Input] is touched after the IP address was entered, the entered IP address is saved
and the input screen appears.
– Type the host name and file path in uppercase letters.
15
Touch [OK].
16
Touch [File Path], and then type in the file path, using the keyboard that appears.
– To check the contents of the shared folders, touch [Reference].
17
Touch [OK], and then touch [OK] in the next screen that appears.
The SMB destination is registered.
!
Detail
To check a registered destination, select it, and then touch [Check Job Set.].
To change the settings for a registered destination, select it, and then touch [Edit]. The registration
number cannot be changed in the Edit screen.
To delete a registered destination, select it, and then touch [Delete].
If the computers or workgroups on the network (subnet) that this machine belongs to is more than the
numbers listed below, browsing over the network may not be performed correctly.
Workgroups: 128
Computers: 128
Note
The registration cannot be completed if no settings are specified for "Name", "Host Address" and "File
Path".
To cancel the registration, touch [Cancel].
To finish specifying settings in the Utility mode, press the [Utility/Counter] key. Otherwise, exit the Utility
mode by touching [Close] in each screen until the screen for the Copy, Fax/Scan or Box mode appears.
ineo+ 650/550/451
or .
5
or to move the
5-73
