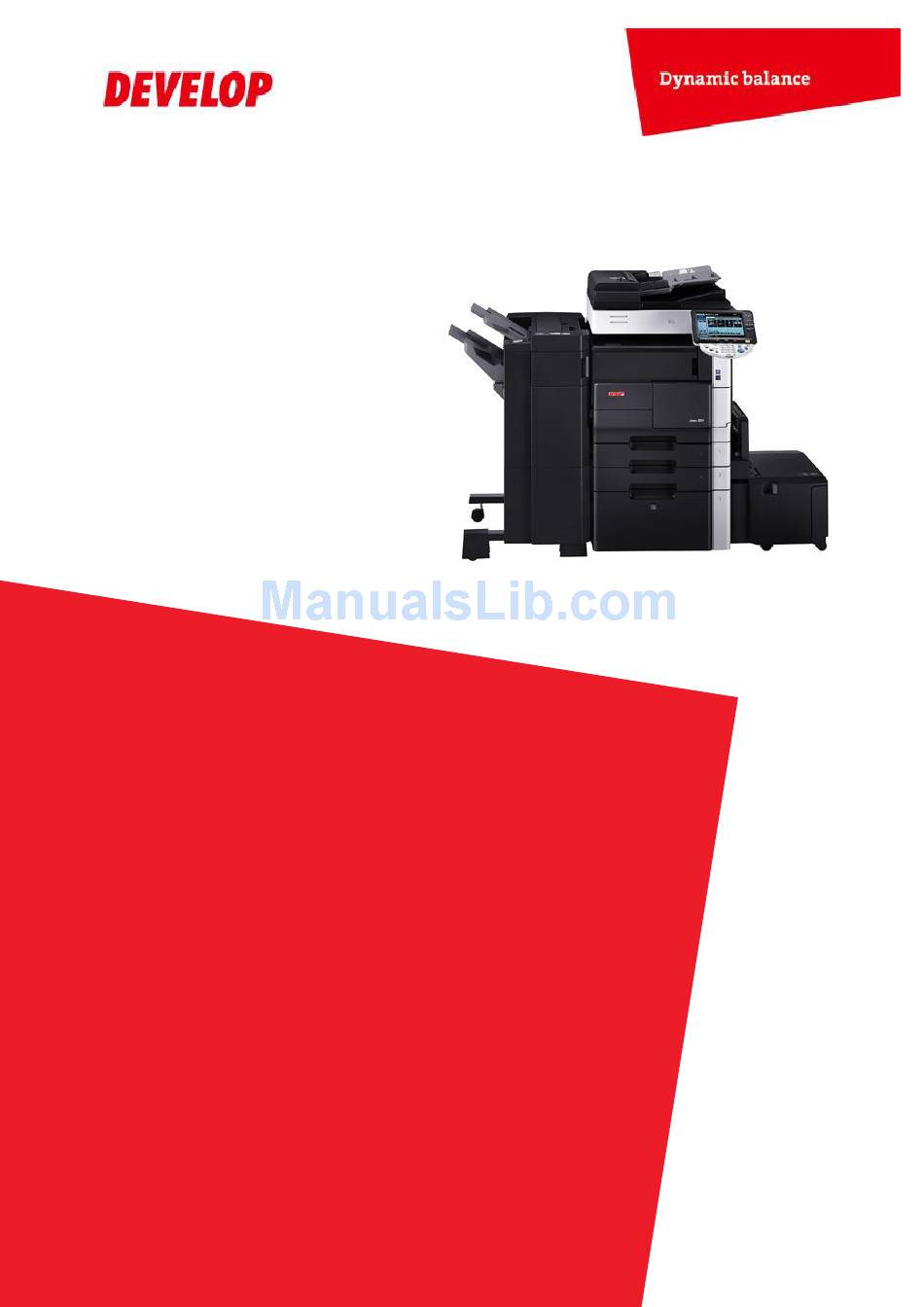

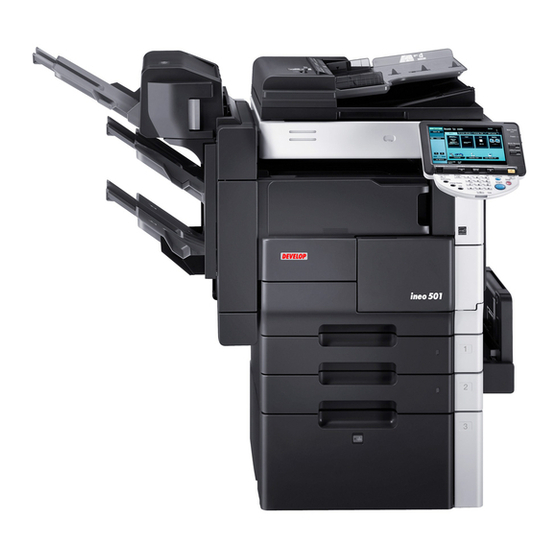

  • Page 1 Product Guide – ineo 361/421/501 Product Guide ineo 361/421/501 10.03.09...

  • Page 2: Table Of Contents

    Product Guide ineo 361/421/501 Table of contents Product Basic........................3 Product Configuration ......................4 System Specifications ......................8 Copier Specifications ......................17 Printer Specifications ......................20 Scanner Specifications......................26 Fax Specifications .......................28 Consumables........................34 Article Numbers and Compatibility ..................35 Service Part.........................37 Appendix..........................39 10.08.07...

  • Page 3: Product Basic

    Product Guide – ineo 361/421/501 MODEL DEVELOPMENT CODE Ganges M1 Ganges M2 Ganges M3 PROPOSED MODEL NAME ineo 501 ineo 421 ineo 361 SUCCESSOR MODEL FOR ineo 500 ineo 420 ineo 360 ESTIMATED SALES START 08/08 08/08 08/08 DATAQUEST SEGMENT...

  • Page 4: Product Configuration

    Product Guide ineo 361/421/501 SYSTEM DIMENSIONS...
  • Page 5 Product Guide ineo 361/421/501 SYSTEM DIMENSIONS...
  • Page 6 Product Guide ineo 361/421/501 SYSTEM DIMENSIONS...
  • Page 7 Product Guide ineo 361/421/501 SYSTEM CONFIGURATION...

  • Page 8: System Specifications

    Product Guide ineo 361/421/501 DOCUMENT FEEDER (DF-613) Availability Status Standard Original Size A5 – A3 Simplex: 35 ~ 128 g/m Original Weight Duplex: 50 ~ 128g/m Tray Capacity 80 originals (80 g/m Feeding Type Face up, upper sheet 50 opm/A4 size simplex (600 x 600 dpi)
  • Page 9 Product Guide ineo 361/421/501 TWO WAY PAPER CABINET (PC-206) cont.. Weight (kg) ? Remark To connect LU-203 either the PC-206 or the PC-407 is required. LARGE CAPACITY CABINET (PC-407) Availability Status Option Capacity 2,500 sheets (80 g/m Paper Format A4 crosswise Paper Weight 60 –...
  • Page 10 Product Guide ineo 361/421/501 DUPLEX UNIT Availability Status Standard Capacity one sheet duplex Paper Format A5 lengthwise – A3 Paper Weight 60 – 105 g/m BYPASS Availability Status Standard Capacity 150 sheets (80 g/m A6 – A3 (min.: 92 x 148 mm, max.: 297 x 431.8 mm) with automatic...
  • Page 11 Product Guide – ineo 361/421/501 ADDITIONAL FINISHER TRAY (OT-602) Availability Status Option for FS-522 Paper Format Bin Capacity 200 sheets Used for FS-522. For more details in regard to the capacity refer to the Remark chapter “Appendix” MAIL BIN TRAY (MT-502)
  • Page 12 Product Guide ineo 361/421/501 SADDLE STITCH UNIT (SD-507) cont… Weight (kg) 9.3 Remark 1 staple cartridge MS – 2C is included in the kit Either Saddle Stitch Unit or Mail Bin Tray can be installed to FS-522 PUNCH UNIT (PU-501)
  • Page 13 Product Guide ineo 361/421/501 STAPLE FINISHER (FS-523) (Floor Type) cont… Corner upper or lower – 1-point (45 degree diagonal) Stapling Modes Corner upper or lower – 1 point (parallel) Centre – 2 point Corner upper or lower – 1 point (parallel)
  • Page 14 Product Guide ineo 361/421/501 IMAGE CONTROLLER (IC-207) Availability Status Option Remark For details please refer to the chapter “Printer Specifications” FAX KIT (FK-502) Availability Status Option Remarks MK-708 is required to connect FK-502 to the machine. MULTI-LINE FAX KIT (ML-503) Availability Status Option Remarks Together with ML-503 and MK-708 a second FK-502 can be connected.
  • Page 15 Product Guide ineo 361/421/501 SECURITY CHIP (SC-505) Availability Status Option Remark For HDD data encryption i-Option Upgrade Kit (UK-202) Availability Status Option Articles included 1 GB memory, Stylus pen and function labels for the panel Remark UK-202 is required if i-Option...
  • Page 16 Product Guide ineo 361/421/501 LICENSE KEY (LK-101) Available for ineo 361/421/501 end of 2008 Availability Status Option Function Web Browser Function Remark EM-312 is required in addition. Planned to be be part of an UK? LICENSE KEY (LK-102) Available for ineo 361/421/501 end of 2008...

  • Page 17: Copier Specifications

    Product Guide ineo 361/421/501 ineo 501 ineo 421 ineo 361 WARM-UP TIME Main Power 60 sec. 30 sec. 30 sec. 3.2 sec. 3.6 sec. 3.6 sec. FIRST COPY 50 cpm A4 crosswise 42 cpm A4 crosswise 36 cpm A4 crosswise COPY SPEED (simplex &...
  • Page 18 Product Guide ineo 361/421/501 FEATURE LIST AMS/APS Yes / Yes 2 in 1 Original Separation N in 1 Yes, 2, 4, 8 in 1 also duplex Book Copy Booklet Creation Yes, also in combination with cover selection Page Insertion Yes, up to 30 inserts...
  • Page 19 Product Guide ineo 361/421/501 FEATURE LIST cont. Non-Image Area Erase OHP Interleaving Positive-Negative-Mode X/Y Independent Zoom Program Memory Yes (30) Proof Copy Separate Scanning Skip Job Program Job Enlarge Rotation Mixplex Setting...

  • Page 20: Printer Specifications

    Product Guide ineo 361/421/501 TYPE / Version Embedded ineo Controller as option Celeron 600 MHz PRINT SPEED 36 / 42 / 50 ppm A4 (crosswise) 23 / 23 / 27 ppm A3 600 x 600dpi, PRINT RESOLUTION 2400 / 1200 x 600 dpi (Smoothing Technology) Front: max.
  • Page 21 Product Guide ineo 361/421/501 PROTOCOLS… cont… TCP/IP Yes (LPR, RAW Socket) SNMP Yes. SMTP/POP3 Yes. HTTP Yes. Netware Yes NDPS Yes Ipd Yes IPP Yes Apple Talk Yes PRINTER DRIVER Windows 2000 Yes, for both PCL6, PCL5e, PS (native). Windows XP Yes, for both PCL6, PCL5e, PS (native).
  • Page 22 Product Guide ineo 361/421/501 NETWORK cont… Windows2000/XP/Server2003/Vista 32/64 Bit Support NOS Mac 9.2 or later, Mac OS 10.2, 10.3, 10.4 Novel Netware (3.x, 4.x, 5.x, 6.x Multi Protocol Automatic UTILITIES Net Care Yes (bundled with the ineo system) Network Setup Yes (bundled with the ineo system)
  • Page 23 Product Guide ineo 361/421/501 PRINTER DRIVER SPECIFICATIONS Copies 1 - 999 Printing Direction Portrait / Landscape Specify Original Size Yes Yes, with PCL / PS Visual driver Specify Print Size No, with PS (PPD) driver Zoom 25 % - 400 %...
  • Page 24 Product Guide ineo 361/421/501 PRINTER DRIVER SPECIFICATIONS CONT.. Secure Job Yes Store Job to HDD Yes User Authentication Yes Section Management Print Yes MixPlex Yes Image Shift Yes Smoothing Yes Specify Print Density Yes User Authentication Yes Specify Toner Save Yes OHP Overlay Non–Print Overlay / Print Overlay...
  • Page 25 Product Guide ineo 361/421/501 FINISHING Sorting Yes Stapling Yes Punching Yes Folding Yes Cover Insertion No Trimming No...

  • Page 26: Scanner Specifications

    Product Guide ineo 361/421/501 SCAN FUNCTIONS Network Twain Scan Yes (with HD-509) Scan to FTP Yes Scan to HDD (Scan to Mailbox) Yes (with HD-509) Scan to E-mail Yes Scan to PC (SMB) Yes Scan to USB Yes Scan to iFAX Yes (with HD-509 and IC-207)
  • Page 27 Product Guide ineo 361/421/501 SCAN TO FTP Protocol FTP Resolution 200x200 (default), 400x400, 600x600 dpi. 2100 (2000 single + 100 groups) Max. destinations 300 scan programs = Destination + Scan Setting (HD-509 required ) SCAN TO HDD (box) Resolution 200x200 (default), 400x400, 600x600 dpi.

  • Page 28: Fax Specifications

    Product Guide ineo 361/421/501 GENERAL DATA Group 3 (compliant to ITU-T T.30) Protocol F-Code communication Min Transmission Time (seconds) < 3 Sec. ITU-T V.34,JBIG (ITU No. 1) Max. Modem Speed / Compatibility 33,6 kbps / ECM, Super G3 Coding / Error Correction (ECM) MH, MR, MMR, JBIG Modulation Method V27ter, V29, (V33), V17, V8 and V34 Document Memory 32 MB (shared with scanner).
  • Page 29 Product Guide ineo 361/421/501 TRANSMISSION / INPUT Transmission Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi, 600 x 600 dpi Effective Scanning Width Max A3 Max. Size FBS (W x L) 216 x 356 mm Halftones Yes, 256 Number of Timers max.
  • Page 30 Product Guide ineo 361/421/501 RECEIVING / OUTPUT Receiving Resolution 203 x 98 dpi, 203 x 196 dpi, 406 x 392 dpi Effective Print Width (fax mode) A4 (3±2 mm margin) Smoothing Yes, for 203 x 98 dpi only Auto / Manual Reception Yes / Yes Storable RX Jobs Max.
  • Page 31 Product Guide ineo 361/421/501 REPORTS AND LISTS Telephone List Yes Key Setting List Yes (Soft key: Included in Machine Setting List) Transmission Report Yes Reception Result Report Yes Reservation Report Yes (Command List) Broadcast Report Yes (Transmission Confirmation Report) Error Report Yes (Transmission Confirmation Report)
  • Page 32 Product Guide – ineo 361/421/501 INTERNET FAX Transmission: SMTP Communication Protocol Reception: POP3, TCP/IP Communication Mode Full mode Encoding System MH/MR/MMR Original Size A3, B4, A4 Recording Size Max. A3 (Max. A3 long size original: 1000 mm with document feeder)
  • Page 33 Product Guide – ineo 361/421/501 SIP FAX Encoding System MH/MR/MMR Original Size A3, B4, A4 Recording Size Max. A3 (Max. A3 long size original: 1000 mm with document feeder) Interface Ethernet 10/100/1000Base-T Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi, 600 x 600 dpi...

  • Page 34: Consumables

    Units per carton 1 cartridge Remark With Toner Recycling DEVELOPER for ineo 501/421/361 Name DV-511 Weight 625 g 225 k copies prints ineo 361 Yield 250 k copies / prints ineo 421/501 Units per carton 1 PC-DRUM for ineo 501/421/361...

  • Page 35: Article Numbers And Compatibility

    Product Guide ineo 361/421/501 MACHINE Article Number ineo 361 A0R7121 A0R6121 ineo 421 A0R5121 ineo 501 Accessories Article Number Compatibiliy Document Feeder DF-613 --- (Standard) Paper Cabinet PC-206 A0RCW21 Large Capacity Tray PC-407 A0RCW22 2000 Sheet Tray LU-203 A0R9W21 Copy Desk DK-506...
  • Page 36 Product Guide ineo 361/421/501 Accessories cont. Article Number Compatibiliy Hard Disk Drive HD-509 9967000675 Security Chip SC-505 A0PAWY1 Working Table WT-502 A07EWW0 ineo 203/253/353/451/550/650 Biometric Authentication Unit AU-101 A09MWY1 ineo 203/253/353/451/550/650 IC Card Authentication Unit AU-201 A09NWY1 ineo 203/253/353/451/550/650 MIFARE IC Cards for AU-201...

  • Page 37: Service Part

    Product Guide ineo 361/421/501 Installation Installation Time Installation time is based on the following definition. Ø Place: At the environment with sufficient space to keep the package and packaging materials Ø Start of measurement: All packed products are prepared on the floor Ø...
  • Page 38 Product Guide ineo 361/421/501 Maintenance Maintenance Parts 250 k copies for ineo 421/501 and 225 k copies for ineo 361 Part No. Part Name Qty. 50GA-209 Drum Cleaning Blade Assy 50GA-336 Filter Mounting Plate Assy 50GA1031 Ozone Filter 40LAR70500 Suction Filter Assy...

  • Page 39: Appendix

    Product Guide ineo 361/421/501 Compatibility between ineo 361/421/501 vs. ineo 360/420/500 Accessories/Consumables Compatibility Remarks Document Feeder DF-613 colour Document Feeder DF-607 Paper Cabinet PC-206 colour, size Paper Cabinet PC-202 Paper Cabinet PC-407 colour, size Paper Cabinet PC-402 2000 sheet Tray LU-203...
  • Page 40 Product Guide ineo 361/421/501 Compatibility between ineo 361/421/501 vs. ineo 360/420/500 Accessories/Consumables Compatibility Remarks Job Separator JS-502 Output Tray OT-504 colour Output Tray OT-501 Image Controller IC-207 Image Controller IC-204 Local Interface Kit EK-703 Not available for ineo 360/420/500 Hard Disk Drive HD-509...
  • Page 41 Product Guide ineo 361/421/501 Maximum paper capacity of FS-522 with different configurations Non-Sort / Total Capacity Sort Staple Saddle Staple Sort / Group 200 sheets or Tray 200 sheets 20 sets 1200 sheets A4 Tray 500 / 250 sheets or 50...
  • Page 42 Product Guide ineo 361/421/501 Combination of Finishing Accessories FS-522 OT-602 MT-502 SD-507 PU-501 FS-523 JS-502 FS-522 OT-602 MT-502 SD-507 PU-501 FS-523 JS-502 Either MT-502 or SD-507 can be used with FS-522 Finishing Matrix for FS-522 Fold / Saddle FS-522 Punching...
  • Page 43 Product Guide – ineo 361/421/501 Stacking Capacity of FS-523 Sheets stapled Sets Sheets 3 - 5 6 - 10 11 - 20 1200 21 - 30 1800 31 - 40 2400 41 - 50 3000...
  • Page 44 Product Guide – ineo 361/421/501 Paper Weights Option / Feature 60 ~ 105 g/m 105 ~ 210 g/m Machine PC-206 ineo 361 ineo 421 PC-407 ineo 501 LU-203 Manual Feed Duplex Tray Tray FS-522 Additional Tray Mail Bin Yes (up to 90 g/m...
  • Page 45 Product Guide – ineo 361/421/501 Option Matrix Paper Exit Options JS-502 OT-504 FS-522 MT-502 SD-507 PU-501 OT-602 FS-523 RU-507 JS-502 must OT-504 must FS-522 MT-502 SD-507 PU-501 OT-602 must FS-523 RU-507 must Inner Options FK-502 FK-502 EM-312 IC-207 MK-708 ML-503...
  • Page 46 Product Guide ineo 361/421/501 Option Matrix continued Paper Feed Options PC-206 PC-407 Copy Desk LU-203 PC-206 PC-407 Copy Desk LU-203 must (either) Remark: The Finisher FS-523 has always to be combined with PC-206, PC-407 or with the Copy Desk in order to get the correct height for the paper entrance into the finisher.
  • Page 47 Product Guide – ineo 361/421/501 Function Matrix FK-502 + AU-101/ Function IC-207 HD-509 ML-503 SC-502 WT-502 MK-708 AU-201 Copy PCL/PS Print Yes (2 x Dual line fax FK-502) Scan-to-eMail/FTP/SMB Scan-to-Box/HDD/Twain Data encryption iFax IP-Address Fax ‫٭‬ SIP-Fax Authentication XPS scan/XPS print ‫٭‬...
  • Page 48 Product Guide – ineo 361/421/501 Function Enhancement with HD-509 ð Handling of larger data ð Account Control w Copying / Printing Features & w/o HDD 1000 accounts, w/o HDD 100 accounts ð Account Track by Password with 8 Characters One touch: 400 w HDD...
  • Page 49 Product Guide ineo 361/421/501 Functions, which require HD-509 Function Item Detail ð Saving copies, prints and scans in Boxes ð Saving Fax–TXs in Boxes: Bulletin Setting Polling Remark: When there is no HDD, data will be saved in memory Saving ð...
  • Page 50 Product Guide – ineo 361/421/501 Functions, which require HD-509… cont.. Function Item Detail ð TX Network TX: Scans, faxes, copies, prints Fax TX: Faxes ð Print Using Data in Boxes ð Printing scanning image (Printing Proof Copy) Remark: Only the first page is printed ð...
  • Page 51 Product Guide ineo 361/421/501 Productivity in accordance to BLI testing No. of ineo 361 ineo 421 ineo 501 copies 61.8 58.2 54.3 83.2 81.2 78.8 1 to 1 89.5 87.8 86.1 94.8 93.9 92.8 49.3 44.1 41.5 74.5 70.5 67.9 1 to 2 83.3...
  • Page 52 Product Guide – ineo 361/421/501 Utilities Application to control and enter the user’s information in the device Data Administrator (user list/account authentication information, address book, [mail address, fax number program registration]) S/W which can take image out of Box Box Operator...
  • Page 53 Product Guide – ineo 361/421/501 Utilities… cont.. System to collect various management information such as counter or maintenance information of former Develop MIF, former ineo Remote Care Develop MIF and integrated models using modem, fax or e-mail and controls it centrally at a sales company’s service centre.
  • Page 54 Product Guide – ineo 361/421/501 Utilities… cont.. By using the Device Manager in a Web browser, you can check the usage status of multiple MFPs and printers in real time. Also Utility for Download from Web Device Manager various settings can be specified collectively...
  • Page 55 Product Guide ineo 361/421/501 What is delivered with the machine? Parts Packed in Japan Added in Europe PC-Drum Developer Yes (mounted at factory side) Original Cover N / A N / A Copy Tray Operator Manual Face Sheets Labels...
  • Page 56 Specifications refer to maximum performance under standard conditions. No guarantee is provided in relation to any of the data supplied. Your Develop Marketing Develop GmbH Hessenstr. 1 30855 Langenhagen Germany Phone +49 (0)511 5334-50...
