Develop ineo 4422 Quick Reference

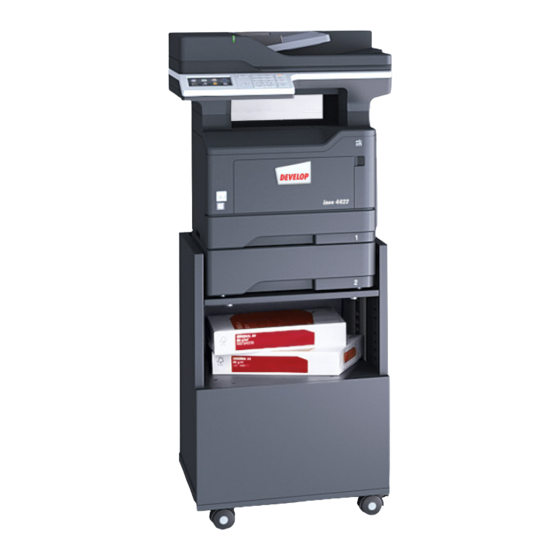

ineo 4422
How to use the system – Control Panel
Input a value
Touch panel Return to Home screen or a number
Adjust the speaker volume
Status indicator
Status indicator light
Off Off/Hibernate mode
Blue Ready/Processing data
Red User intervention required
Touch panel - Navigation
Create/search
shortcut
Screen name
Access
settings
Enable sleep mode
or hibernate mode
(Sleep button)
Clear a value/
Reset the settings
Stop a process
Start a process
Place a dial pause in
a fax number
Backspace button
Sleep button light
Off Off/Ready/Processing data
Solid amber Sleep mode
Blinking amber Hibernate mode
Open submenu
Execute action
Login/logout (if authentication
is configured)
Switch to Home screen
Switch back to previous
screen
Home screen*
Access network settings
Attendance
alert/warning
Home screen icons
Copy Access the copy menu and make copies.
E-mail Scan a document and send it to an e-mail address.
Fax Scan a document and send it to a fax number.
Status/Supplies View information about status/warning messages.
Job Queue Show current jobs.
Settings Access the device settings.
Address Book Access, create and organize contacts.
USB Drive Print documents from a flash drive / scan documents
and store them on a flash drive.
Held Jobs Show the print jobs that are held in the printer memory.
FTP Scan and save documents directly to an FTP server.
Scan Center Send scanned documents to one ore more destinations.
Shortcut Center Organize shortcuts.
* Your home screen may vary depending on your home screen customization settings,
administrative setup, and active embedded solutions.
Quick Reference 1/3
Login/logout
(if authentication is
configured)
Home screen icons
