1
1.8

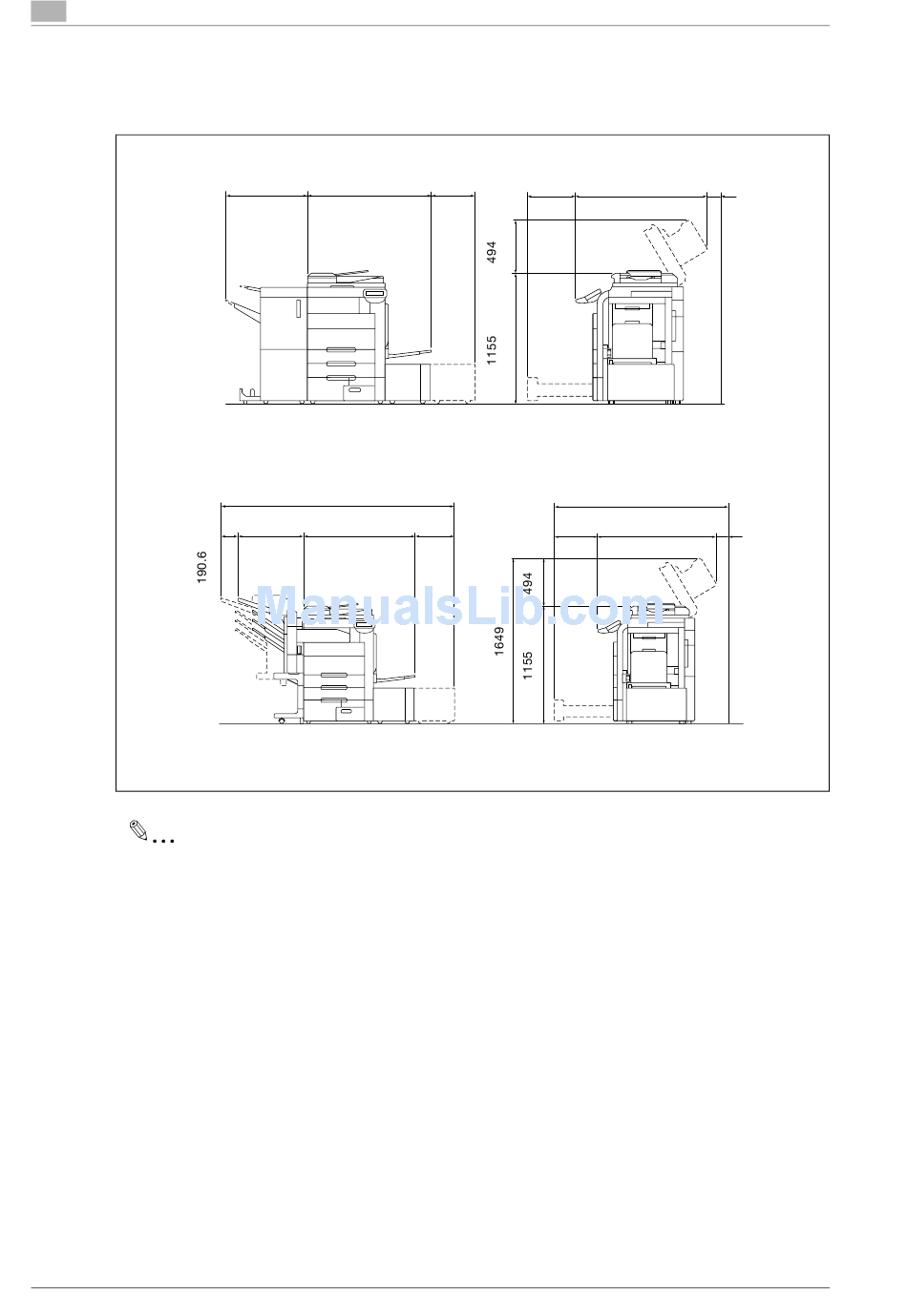

Space requirements
To ensure that machine operation, consumables replenishing, part replacement, and regular maintenance
can easily be performed, adhere to the recommended space requirements detailed below.
Reminder
Be sure to allow a clearance of 100 mm (4 in.) or more at the back of this machine for the ventilation
duct.
1-20
806.5
958.3
ineo+ 451/550/650+FS-608+LU-301(+PI-503)
2090.9
555
958.3
ineo+ 451+FS-519+SD-505+LU-301
387
391.9
387
391.9
Introduction
1130
50
Unit: mm
1571.9
50
1130
Unit: mm
ineo+ 650/550/451
