Notes

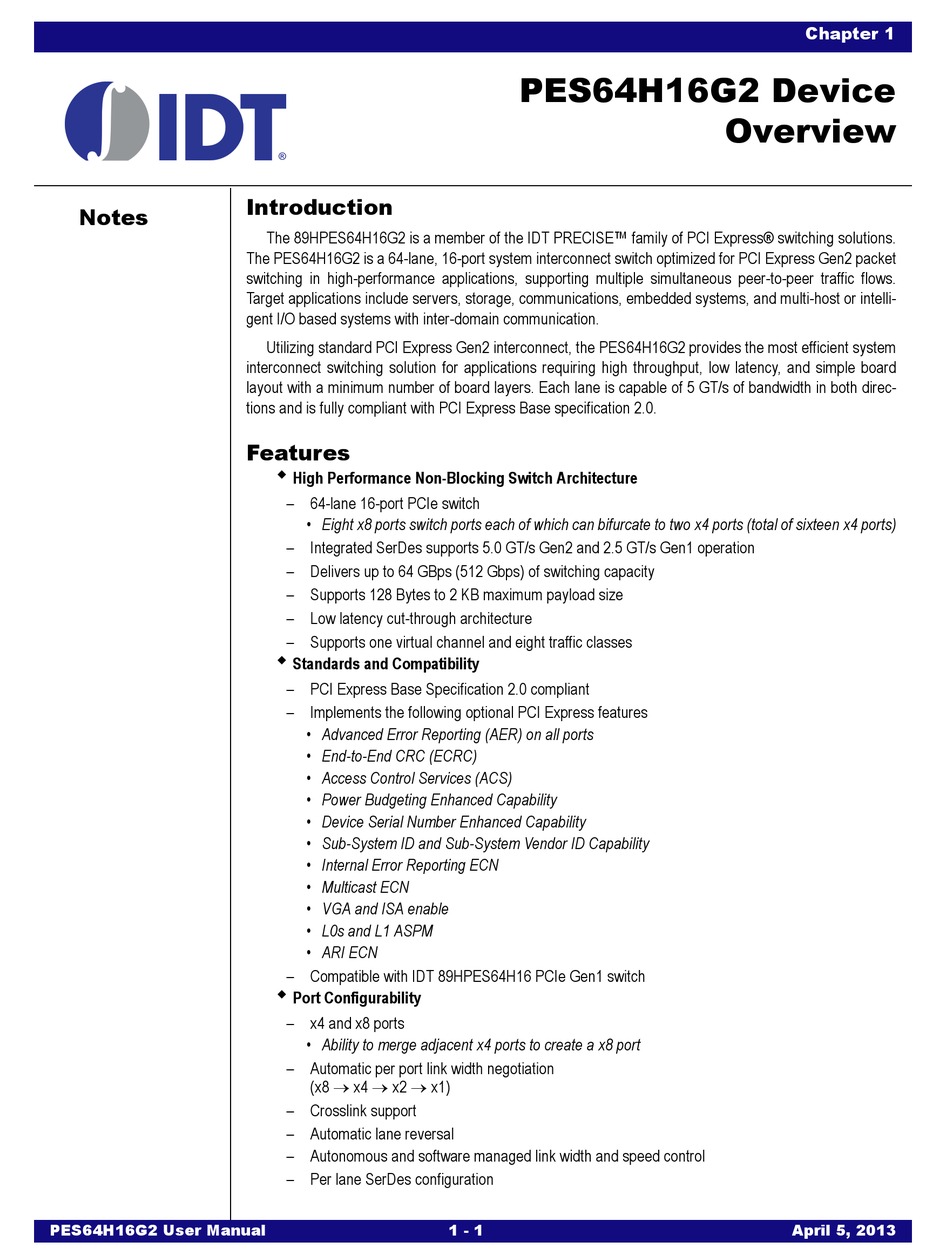

PES64H16G2 User Manual
®

Introduction

The 89HPES64H16G2 is a member of the IDT PRECISE™ family of PCI Express® switching solutions.
The PES64H16G2 is a 64-lane, 16-port system interconnect switch optimized for PCI Express Gen2 packet
switching in high-performance applications, supporting multiple simultaneous peer-to-peer traffic flows.
Target applications include servers, storage, communications, embedded systems, and multi-host or intelli-
gent I/O based systems with inter-domain communication.
Utilizing standard PCI Express Gen2 interconnect, the PES64H16G2 provides the most efficient system
interconnect switching solution for applications requiring high throughput, low latency, and simple board
layout with a minimum number of board layers. Each lane is capable of 5 GT/s of bandwidth in both direc-
tions and is fully compliant with PCI Express Base specification 2.0.

Features

High Performance Non-Blocking Switch Architecture

– 64-lane 16-port PCIe switch
• Eight x8 ports switch ports each of which can bifurcate to two x4 ports (total of sixteen x4 ports)
– Integrated SerDes supports 5.0 GT/s Gen2 and 2.5 GT/s Gen1 operation
– Delivers up to 64 GBps (512 Gbps) of switching capacity
– Supports 128 Bytes to 2 KB maximum payload size
– Low latency cut-through architecture
– Supports one virtual channel and eight traffic classes
 Standards and Compatibility
– PCI Express Base Specification 2.0 compliant
– Implements the following optional PCI Express features
• Advanced Error Reporting (AER) on all ports
• End-to-End CRC (ECRC)
• Access Control Services (ACS)
• Power Budgeting Enhanced Capability
• Device Serial Number Enhanced Capability
• Sub-System ID and Sub-System Vendor ID Capability
• Internal Error Reporting ECN
• Multicast ECN
• VGA and ISA enable
• L0s and L1 ASPM
• ARI ECN
– Compatible with IDT 89HPES64H16 PCIe Gen1 switch
 Port Configurability
– x4 and x8 ports
• Ability to merge adjacent x4 ports to create a x8 port
– Automatic per port link width negotiation
(x8  x4  x2  x1)
– Crosslink support
– Automatic lane reversal
– Autonomous and software managed link width and speed control
– Per lane SerDes configuration
PES64H16G2 Device
1 - 1
Chapter 1
Overview
April 5, 2013
