Ver. 1.2

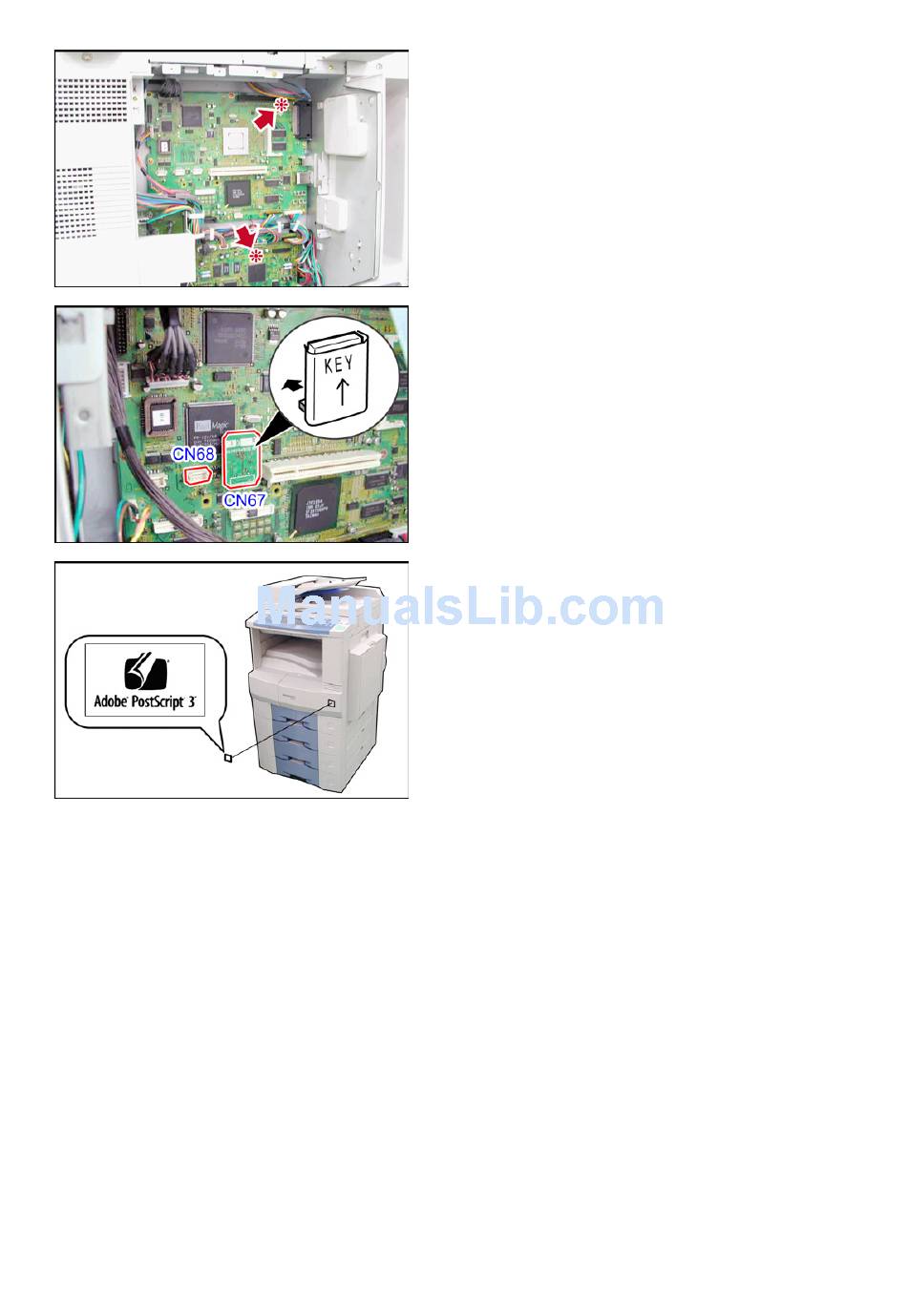

Caution:
If the LEDs on the SC and SPC PC Boards are lit
(ON), the Power to the machine is still ON.
Please read "8.3.2. Installation : CAUTION!" once
again.
(3) Install the Hardware Key into one of the two available
connectors (CN67, CN68) on the SC PC Board.
Note:
The connectors are keyed, to prevent damage to the
SC PC Board, install the Hardware Key as illustrated.
Do not force the Hardware Key into the connector if
facing the wrong way.
(4) Proceed with the installation of other options. If
finished, reinstall all Harnesses and Covers.
(5) Plug the AC Power Cord, and turn the Main Power
Switch on the Back and the Power Switch on the
Left Side of the machine to the ON position.
(6) Reconnect the Telephone Line / LAN Cable if
disconnected.
(7) Update the firmware of the unit to the PS/PCL Option
firmware. Refer to the attached "Service Notes".
(8) Install the PS/PCL6 Software into the PC with the
Operating Instructions by following the prompts of the
Installation Wizard.
(9) Attach the Adobe PostScript 3 Label to the Front
Cover as illustrated.
