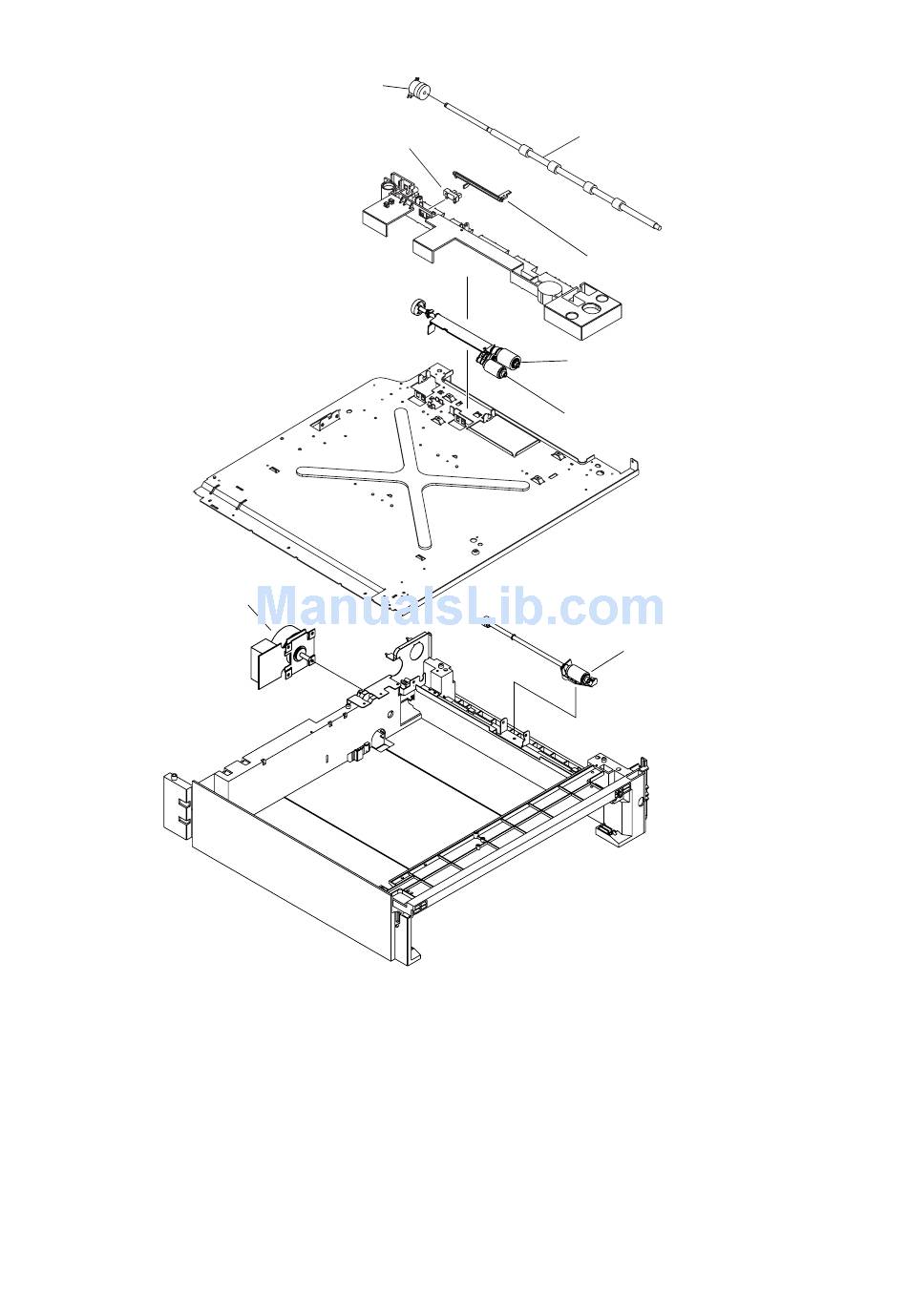

< Paper Feed Module (Optional) Operation >
Drive Motor
(2402)
a. When the printing operation begins, the Main Motor (907) and the Drive Motor (2402) start driving
the Gears.
b. The Clutch (1105) is energized for a specified period of time and turns ON. This activates the Paper
Feed Roller (1144). The paper is separated into individual sheets by the C25 Gear Roller (1145) and
transported by the Intermediate Roller (2306).
c. The paper is transported to the Registration Roller (1121), activating the Registration Sensor (1045).
After a specified period of time, the Clutch (1105) is turned ON and the Registration Roller (1121)
starts rotating. The paper is transported to the OPC drum area.
d. The paper passes through the Read Point Sensor (1045) and after a specified period of time, the
Clutch (1105) is turned OFF. The Registration Roller and the Registration Pinch Roller stop rotating.
Ver. 1.2
Clutch (957)
Registration Sensor(1045)
Intermediate Roller (3106)
Actuator 2 (3104)
Paper Feed Roller
(1144)
C25 Gear Roller
(1145)
237
C25 Gear Roller
(1145)
