3D PATIENT EXPOSURE
8 3D PATIENT EXPOSURE
8.1

Preparing X-ray system

8.1.1 Attaching patient supports
Attaching support bars
Support bars
Patient support table
18 Planmeca ProMax 3D Max with ProTouch
NOTE The available head supports are shown in section 6.3.1
"Head supports (A or B)" on page 9.

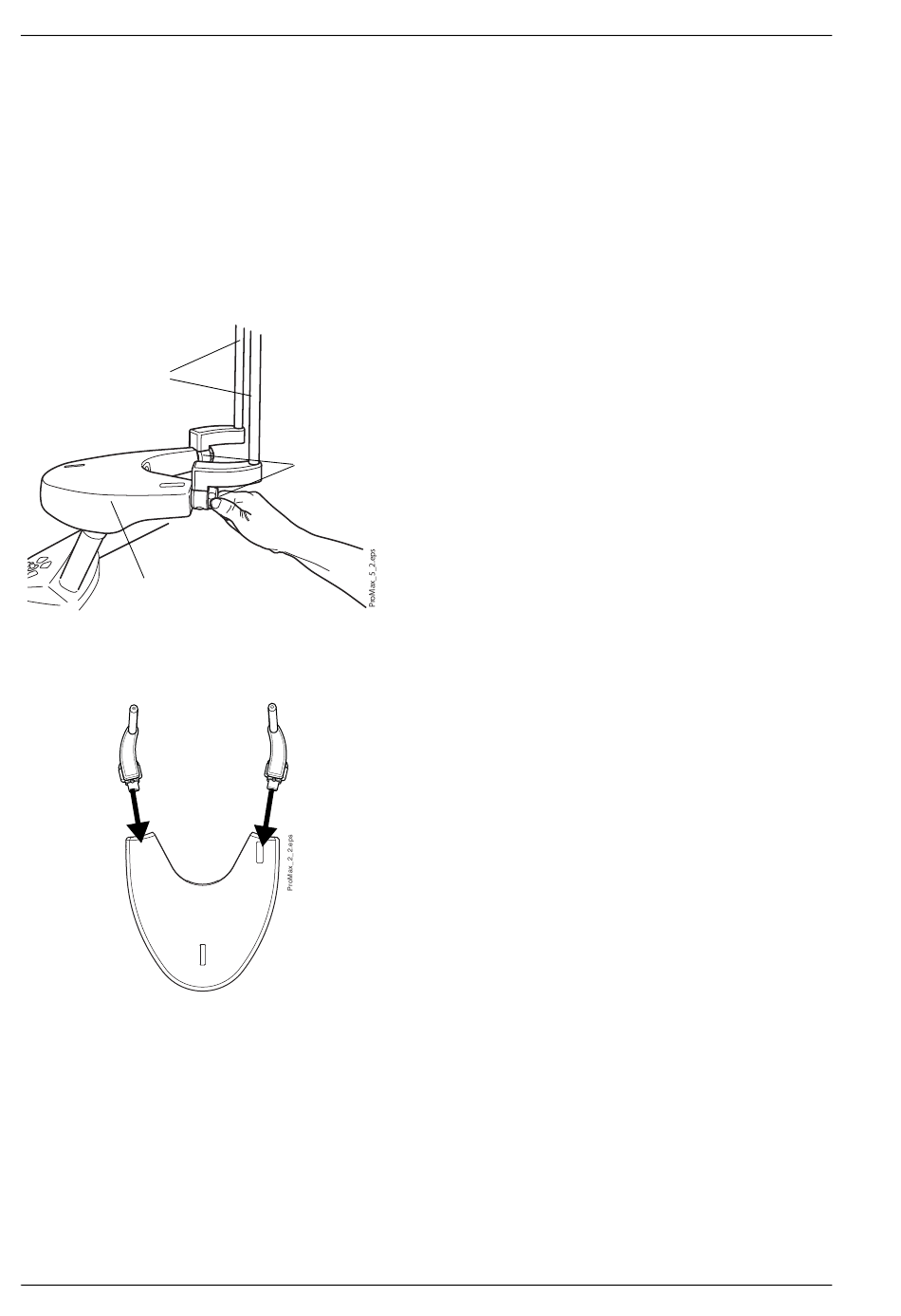

Insert the support bars into the holes in the patient
support table and secure them in position by tightening
the locking knobs.
Locking
knobs
NOTE Ensure that you insert the support bars the right way
round.
User's Manual
