Discharge Way Washing - MIMAKI UJF-3042 Maintenance Manual

Maintenance Manual > Operating Principle > Maintenance Function > Discharge way washing
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

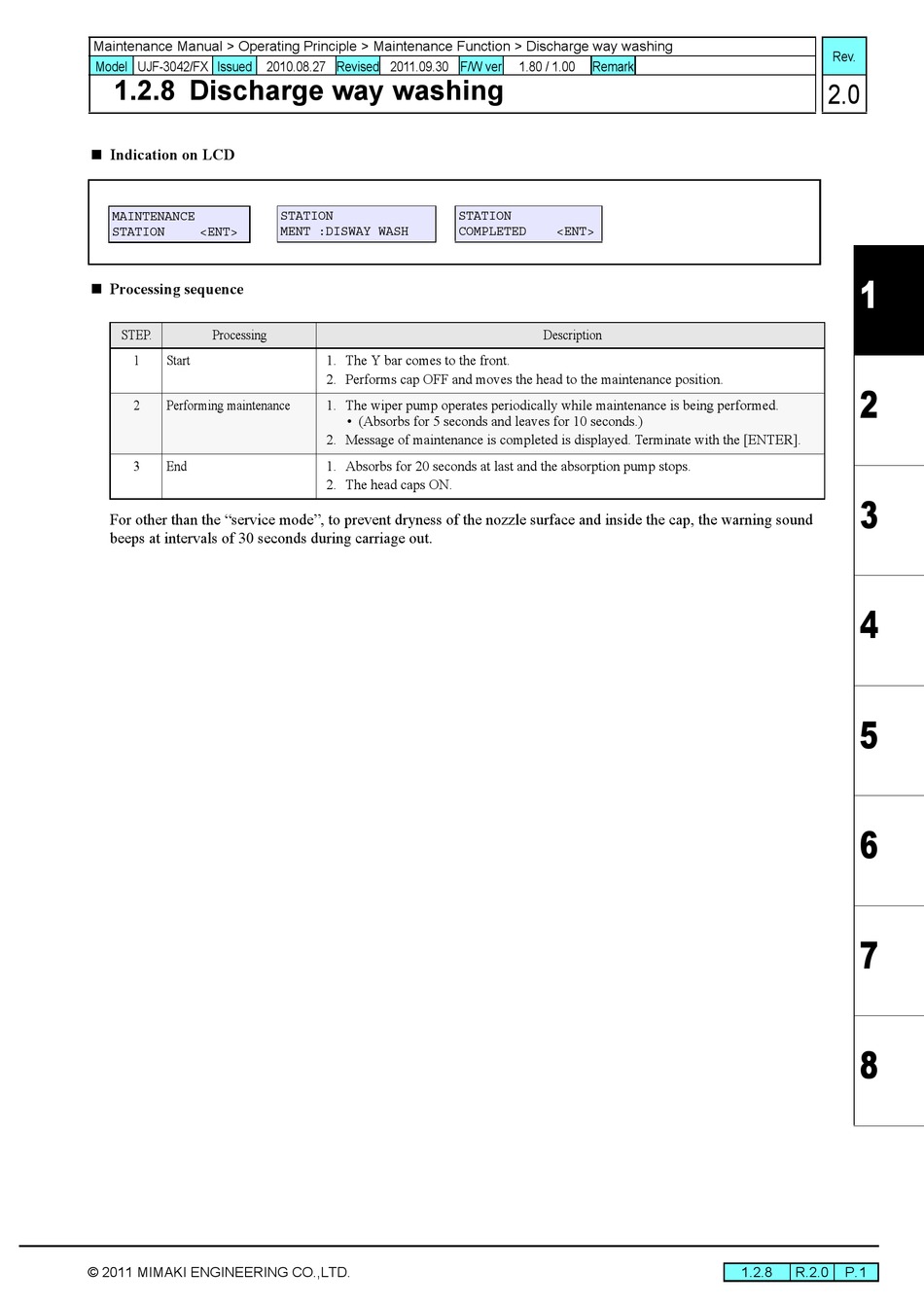

1.2.8 Discharge way washing

 Indication on LCD
MAINTENANCE
STATION <ENT>
 Processing sequence
STEP. Processing
1 Start
2 Performing maintenance
3 End
For other than the "service mode", to prevent dryness of the nozzle surface and inside the cap, the warning sound
beeps at intervals of 30 seconds during carriage out.
© 2011 MIMAKI ENGINEERING CO.,LTD.
STATION
MENT :DISWAY WASH
1. The Y bar comes to the front.
2. Performs cap OFF and moves the head to the maintenance position.
1. The wiper pump operates periodically while maintenance is being performed.
• (Absorbs for 5 seconds and leaves for 10 seconds.)
2. Message of maintenance is completed is displayed. Terminate with the [ENTER].
1. Absorbs for 20 seconds at last and the absorption pump stops.
2. The head caps ON.
1.80 / 1.00 Remark
STATION
COMPLETED <ENT>
Description
Rev.
2.0
1
2
3
4
5
6
7
8
1.2.8 R.2.0 P.1
