Chapter 4 Maintenance

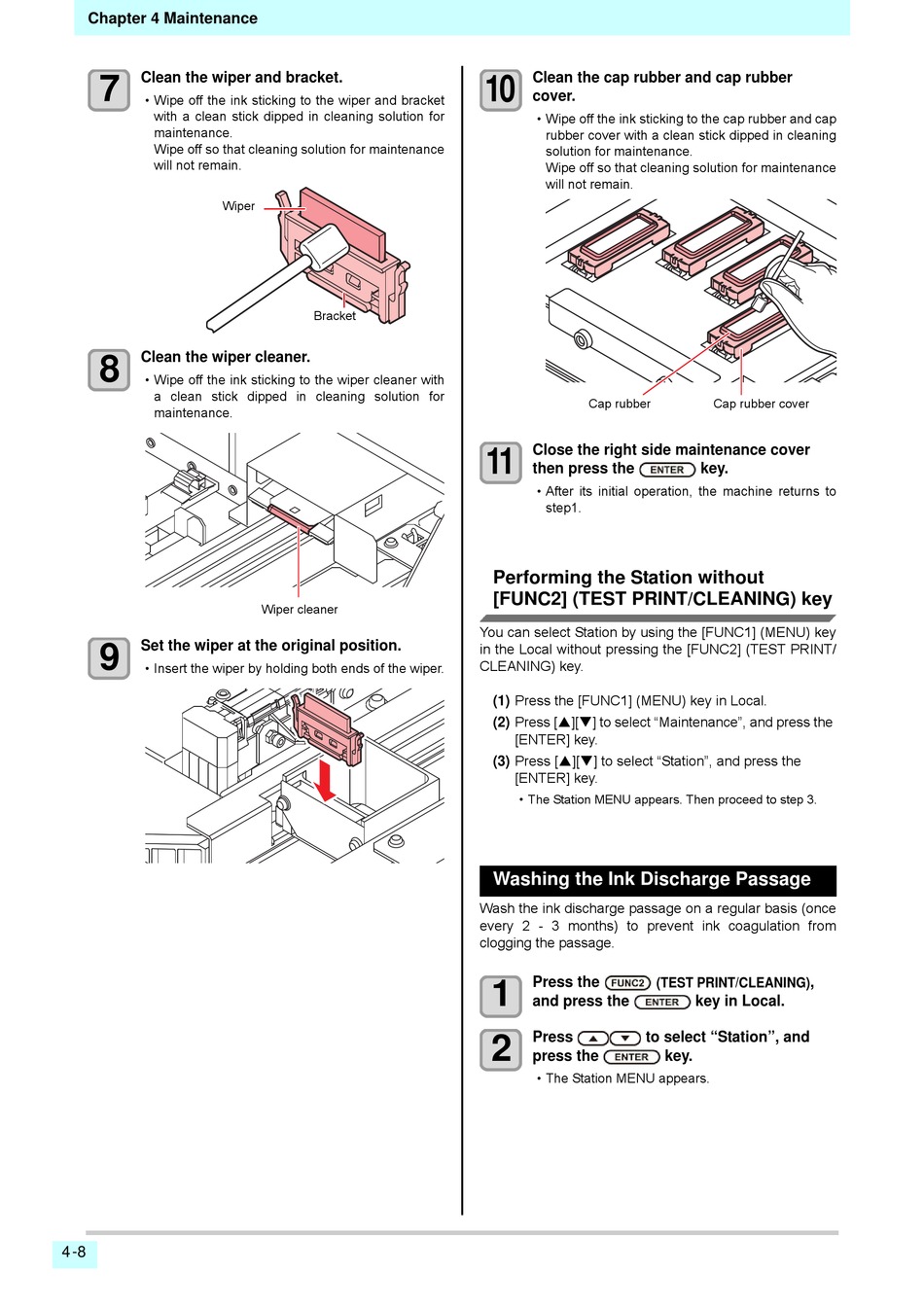

Clean the wiper and bracket.
7
• Wipe off the ink sticking to the wiper and bracket
with a clean stick dipped in cleaning solution for
maintenance.
Wipe off so that cleaning solution for maintenance
will not remain.
Wiper
Clean the wiper cleaner.
8
• Wipe off the ink sticking to the wiper cleaner with
a clean stick dipped in cleaning solution for
maintenance.
Set the wiper at the original position.
9
• Insert the wiper by holding both ends of the wiper.
4-8
Bracket
Wiper cleaner
Clean the cap rubber and cap rubber
10
cover.
• Wipe off the ink sticking to the cap rubber and cap
rubber cover with a clean stick dipped in cleaning
solution for maintenance.
Wipe off so that cleaning solution for maintenance
will not remain.
Cap rubber
Close the right side maintenance cover
11
then press the
• After its initial operation, the machine returns to
step1.
Performing the Station without
[FUNC2] (TEST PRINT/CLEANING) key
You can select Station by using the [FUNC1] (MENU) key
in the Local without pressing the [FUNC2] (TEST PRINT/
CLEANING) key.
(1) Press the [FUNC1] (MENU) key in Local.
(2) Press [][] to select "Maintenance", and press the
[ENTER] key.
(3) Press [][] to select "Station", and press the
[ENTER] key.
• The Station MENU appears. Then proceed to step 3.

Washing the Ink Discharge Passage

Wash the ink discharge passage on a regular basis (once
every 2 - 3 months) to prevent ink coagulation from
clogging the passage.
Press the
1
and press the
Press to select "Station", and
2
press the
• The Station MENU appears.
Cap rubber cover
key.
(TEST PRINT/CLEANING) ,
key in Local.
key.
