Industrial Products
Industrial Products
Product Guide
Tentative
version
2012/10/15
V0.91
Note: The information in this document is subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UJF-6042 and is the answer not in the manual?

Questions and answers

Related Manuals for MIMAKI UJF-6042

Summary of Contents for MIMAKI UJF-6042

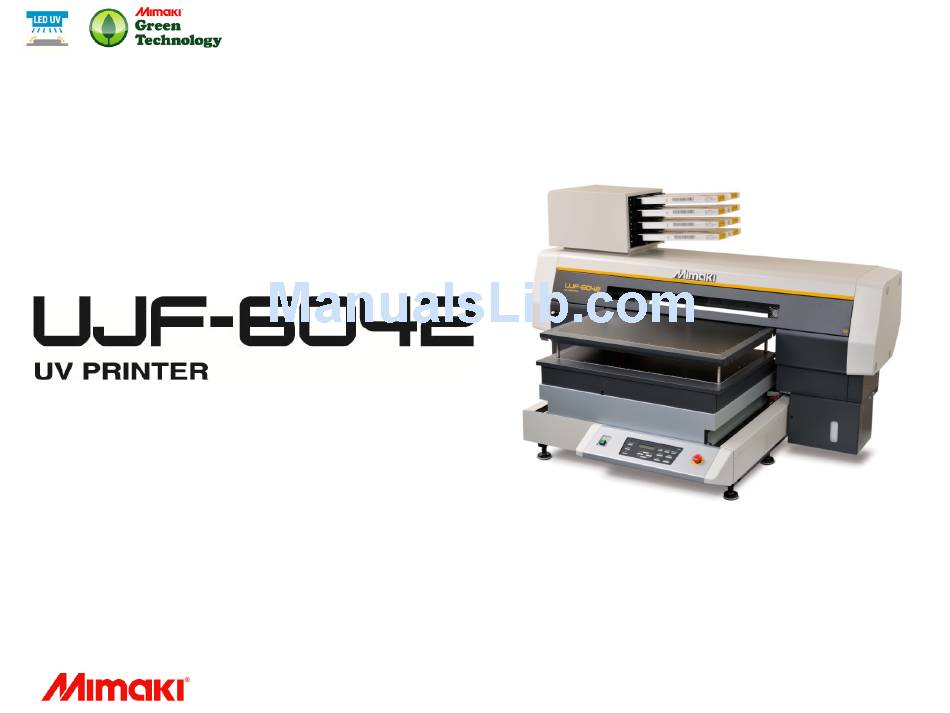

  • Page 1 Industrial Products Industrial Products Product Guide Tentative version 2012/10/15 V0.91 Note: The information in this document is subject to change without notice.
  • Page 2 The strong points of UJF-6042 ■ Eco-Friendly Supported environmentally conscious LED UV light, which is long lasting and low power consumption. Also, pro-environment printing which generates almost no VOC’s is achieved. ■ A2 Size ＆ 150mm Height Compared with UJF-3042HG, the width is broaden from 300mm to 610mm, allowing printing on A2 size media.

  • Page 3: System Configuration

    System Configuration ＜ Design software ＞ ＜RIP Software＞(Bundled) Corresponds with PS ,EPS, TIFF, BMP, JPEG, etc. ＜RIP＞ Output USB2.0 〈PC〉 5m(15ft) cable is recommended. Recommended Specification Core i3 3.3GHz Memory 2GB 500GB USB2.0 More than 4 ports Optical disk drive DVD-ROM 〈パソコン〉...

  • Page 4: Eco-Friendly

    93% Reduction 94% Reduction 【kWh】 * The data above is the comparison with Mimaki’s conventional printers. The figures may differ depending on the machine compared. ■ The reduction of the heat impact ・The temperature of the metal halide lamp reaches 70℃, causing media deformation. However, since the temperature of the LED UV lamp is the ordinary temperature, the heat-sensitive substrate which has been difficult to print on is now available.
  • Page 5 Eco-Friendly ■ Comparison of LED UV lamp with metal halide lamp Metal halide lamp LED UV lamp Uptime: about 5 minutes Uptime/Downtime Immediately Downtime: about 5minutes Temperature Room temperature The max temperature of 70℃ Life time About 10,000 hours About 1,000 hours Electric power 0.15kWh 2.4kWh...
  • Page 6 A2 Size ＆150mm Height ■Printable on substrates up to 610mm width and 150mm height The larger flatbed enables direct print on media with larger size. For example, for an A2 size photo album with a leather or acrylic cover that contains coated paper or cast-coated paper. Head Surface level difference: 2mm or under 3D objects...
  • Page 7 A2 Size＆150mm Height ■ Print Speed Condition : (Y)610mm x (X)420mm 10min 10min30sec 13min20sec 14min 20min 21min30sec 【Minute】 ■ The staggered arrangement makes the simultaneous printing possible, which utilizes the white ink. As the reverse printing method is adopted, the print speed of using the white ink only is the same as the print speed of the 2 layer printing, such as “Color to White”...
  • Page 8 Newly developed a ball screw type head ■新開発の送り機構 conveyance mechanism is adopted. This mechanism enhances the accuracy of the ink drop placement onto the substrate by 50% compared with conventional machine (UJF-3042) Error of dot placement realizing the more precise printing. Conventional machines UJF-6042...
  • Page 9 Easy Maintenance White Ink Circulation System：”MCT” * MCT stands for Mimaki Circulation Technology Carrying with the white ink circulation system, the settling of pigments in the lines is prevented, which enables the stable ink supply. The stable ink supply reduces the wasted ink, and leads to save the cost.

  • Page 10: Easy Maintenance

    Easy Maintenance ■ The nozzle recovery system Even if the nozzle clogging is not improved by the maintenance function, the continuous printing operation without losing image quality is possible by using the other normal nozzles. The example of registering clogged nozzles Registration The number of the State...
  • Page 11 LED UV INK Offering various ink sets from 3 types of UV inks, according to the application and the media. LH-100 LF-140 LF-200 •High weather resistance  Gradation reproducibility is improved by light color inks.  Hard coating ink which has  •200 percent flexibility Feature Also its flexibility enables post processing procedures  high‐solvent fastness. •High‐adhesiveness ‐ such as bending, and folding. flexible ink. Products which need Products which need  scratch resistance and Products which need bendability such as soft plastic  flexibility such as   solvent fastness such as Application products, leather products, panels, and photo prints. decorative film, membrane  boards, panels and switch and so on.  electronic chassis. Color 4‐color (K, C, M, Y) + W,CL,Pr 6‐color (K, C, M, Y, Lc, Lm) +  W, CL, Pr 4‐color (K, C, M, Y ) + WW...
  • Page 12 LED-UV INK LH-100 LED UV INK Hard LED UV Ink ） （ Suitable for printing on resin, plastic, etc. LH-100 has high resistant to chemicals and scratches. （Plastic in general, and various nameplates） LH-140 LED UV Ink （ Flexible LED UV Ink ） As adopting light colors such as Light Cyan, and Light Magenta, the granular appearance is reduced, and the quality of the gradation is enhanced.
  • Page 13 LED-UV INK ■The clear ink Add values to oneʼs product, and enhance profitability and ability to make proposals. “Multi layered print” is possible by printing several times on “Glossy finish”, which expresses a sense of high quality, or “Mat finish” which achieves muted matte effect.
  • Page 14 (Solution concentration 60% 40%） *1  Isopropyl Alcohol ○ ○ Xylene ○ ○ *1: Solution concentration that made a rubbing mark on a printed surface Note: The results above have been achieved by Mimaki and are not guaranteed. Please carry out a test beforehand.
  • Page 15 The Software RIP If it is too difficult to use, the high functional software is useless. New RasterLink pursued simplicity, and usability. The several new functions are added, so that anyone can have the more beautiful and the more sophisticated output easily. This is “Everyoneʼs RIP software”.
  • Page 16 Digital Workflow Receiving Data Edition Compilation Printing Taking away plate Full color printing Check only No Screen Data management at one time Setting the substrate only Setting the substrate only Storage of screen is Storage of screen is not necessary not necessary Print Make separation...

  • Page 17: Specifications

    UJF-6042 Specifications Contents Specifications Print head On demand piezo head 720 x 600 dpi・720 × 900dpi・720 × 1200dpi Resolution 1,440 x 1,200 dpi ・ 1,800 x 1,800 dpi LH-100 (C/M/Y/K/W/CL) Types LF-140 (C/M/Y/K/Lc/Lm/W) LF-200 (C/M/Y/K/W) Capacity 200ml cartridge / 600ml ink pack Inkjet primer PR-100 (200ml ink cartridge / 600ml ink pack）...
  • Page 18 http://www.mimaki.co.jp...
