Inkjet printer is the precision machine that has highly delicate mechanism.
Especially, little dust and paper powder may have effect on a head nozzle
firing ink, and may not get normal printing.
To use the inkjet printer in good condition, we recommend the following
daily care.
For safe operation ............................................................................. 2
Installation environment and Notes on cleaning ....................................... 2
Notes on cleaning ..................................................................................... 2
Cleaning exterior surfaces ........................................................................ 2
Cleaning the table ..................................................................................... 3
At the end of the daily work ............................................................. 4
Head cleaning ........................................................................................... 4
Nozzle washing ........................................................................................ 6
If defective printing does not improve ............................................ 8
The examples of defective printing ........................................................... 8
Cleaning of the wiper ................................................................................ 9
How to recover improper discharge from the nozzle .............................. 11
When the waste ink tank is full ...................................................... 12
Disposing of the ink in the waste ink tank ............................................... 12
Disposing of the waste ink in the wiper bottle ......................................... 14
Avoiding dripping of ink droplet at printing ................................. 16
How To Store ................................................................................... 18
Storage Of Antifreeze Liquid And Cleaning Solution .............................. 18
Storage Of Media ................................................................................... 18
Storage Of Ink Cartridge ......................................................................... 18

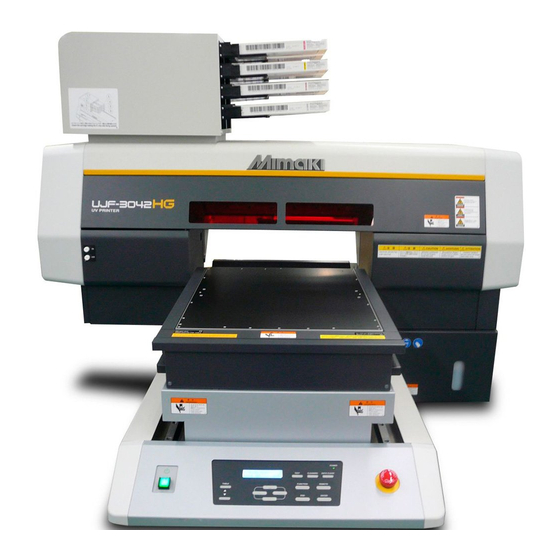

Daily Care Manual
Request for daily care
Table Of Contents
D202468-10
Advertisement
Table of Contents
Related Manuals for MIMAKI UJF-3042HG
Summary of Contents for MIMAKI UJF-3042HG
-
Page 1: Table Of Contents
Daily Care Manual Request for daily care Inkjet printer is the precision machine that has highly delicate mechanism. Especially, little dust and paper powder may have effect on a head nozzle firing ink, and may not get normal printing. To use the inkjet printer in good condition, we recommend the following daily care. -
Page 2: For Safe Operation
For safe operation Installation environment and Notes on cleaning • Use this machine in clean (less dust) environment. The use of fan and ventilator might because of dusty environment. They brow dust up dust around the machine. • As using UV curing ink, install this machine in a well-ventilated area. •... -
Page 3: Cleaning The Table
For safe operation Cleaning the table The table is easy to become dirt with lint, paper dust or the like after cutting media. For a conspicuous stain, wipe it off with a soft-hair brush, a dry cloth, a paper towel or the like. •... -
Page 4: At The End Of The Daily Work
At the end of the daily work To prevent nozzle clogging, execute head cleaning and nozzle washing at the end of the daily work. Head cleaning Press the key in the local CLEANING < L OC A L > mode. Select the head, set execution/non- # C L E A N I NG execution of cleaning, and press the... - Page 5 At the end of the daily work Select [normal] by pressing the # C L E A N I NG key, and press the key. T Y P E : n o r m a l ENTER Press the key. ENTER •...
-
Page 6: Nozzle Washing
Nozzle washing • Be sure to put on the supplied goggles and gloves. • UJ Cleaning swab (SPC-0386) • Gloves • Goggles Tools • F-200 / LF-200 Washing Liquid (SPC-0568) Press the key in the local FUNCTION < L OC A L > mode. - Page 7 At the end of the daily work Dip washing liquid into the cleaning Back swab, and wipe dirt of the wiper nozzle. Front • Wipe the places shown in the right. Put washing liquid into the dropper, and drop on the caps to fill them. •...
-
Page 8: If Defective Printing Does Not Improve
If defective printing does not improve In the following cases, clean the suction nozzle using the cleaning kit. • The station interior is severely contaminated. • Defective printing is not resolved after executing the head cleaning function ( P.4). • F-200 / LF-200 Washing Liquid (SPC-0568) Contents of the cleaning kit •... -
Page 9: Cleaning Of The Wiper
If defective printing does not improve Cleaning of the wiper The wiper sweeps ink stuck on the nozzle of the head. The wiper becomes tainted with ink or dusts during the operation of this machine. In order to keep the head in good condition, clean the wiper frequently. •... -
Page 10: Remove The Front Cover
Remove the front cover. (1) Push the both ends of the front cover. (2) Pull the cover to the front while opening upward. Dip the washing liquid into the clean- Back ing swab, and wipe dirt of the wiper nozzle. Front •... -
Page 11: How To Recover Improper Discharge From The Nozzle
If defective printing does not improve How to recover improper discharge from the nozzle When not using this machine for a long time or according to environmental temperature, the nozzle may be unstable in discharging. In this case, follow the procedures below to recover nozzle. •... -
Page 12: When The Waste Ink Tank Is Full
When the waste ink tank is full Waste ink used for head cleaning gathers in the waste ink tank and the wiper bottle. Periodically check the waste ink tank and the wiper bottle and when they are full, dispose of the ink. If warning message such as “!WS INKTANK CHK”... - Page 13 When the waste ink tank is full Open the waste ink box cover. • By pressing the cover lightly, the cover opens to the front. Remove the waste ink tank. • Lifting the tank slightly up, pull it to the front. Put the waste ink into a tank with a cover.
-
Page 14: Disposing Of The Waste Ink In The Wiper Bottle
Disposing of the waste ink in the wiper bottle Turn the power on. • After initializing, <LOCAL> is displayed. Press the key in the local FUNCTION < L O C A L > mode. Select the [MAINTENANCE] by F U N C T I O N pressing the key, and M A I N T E N A N C E... - Page 15 When the waste ink tank is full Set the wiper bottle. (1) Turn the bottle holding the cover, and close the cover. (2) Close the waste ink box cover. Press the key. ENTER S T A T I ON COMP L E T E D : e n t Press the key to finish.
-
Page 16: Avoiding Dripping Of Ink Droplet At Printing
Avoiding dripping of ink droplet at printing Ink droplets from the mist at drawing may arise on the bottom of the carriage. As the ink droplets may drip and stain the media or cause blur or dot missing, clean the bottom of the carriage periodically. •... - Page 17 Avoiding dripping of ink droplet at printing Dip the cleaning swab into the cleaning Light pointer solution, and clean the side surface of the head. • Do not wipe the nozzle face of the head. It may cause nozzle clogging. •...
-
Page 18: How To Store
How To Store Storage Of Antifreeze Liquid And Cleaning Solution Be sure to store the antifreeze liquid and the cleaning solution in a cold and dark place. Store them in a place that is out of the reach of children. Storage Of Media Media should be stored in the little dust area, and not in direct sunlight. - Page 19 D202468-10-13112012...
- Page 20 You can also download the latest daily care manual from our website. UJF-3042HG: FW:3.3 UJF-6042: FW:1.0...
