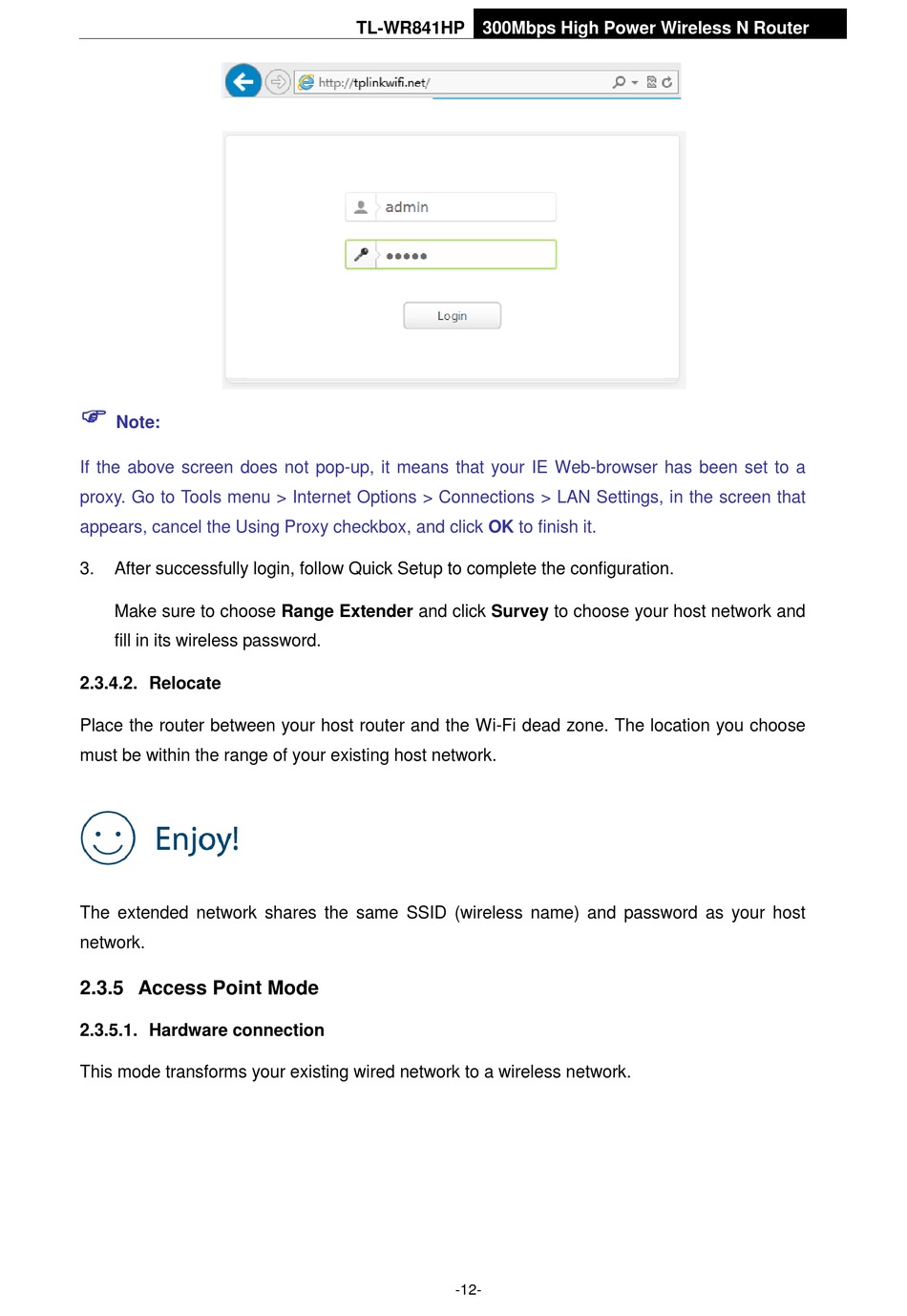

Access Point Mode - TP-Link TL-WR841HP User Manual


Note:
If the above screen does not pop-up, it means that your IE Web-browser has been set to a
proxy. Go to Tools menu > Internet Options > Connections > LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
3. After successfully login, follow Quick Setup to complete the configuration.
Make sure to choose Range Extender and click Survey to choose your host network and
fill in its wireless password.
2.3.4.2. Relocate
Place the router between your host router and the Wi-Fi dead zone. The location you choose
must be within the range of your existing host network.
The extended network shares the same SSID (wireless name) and password as your host
network.

2.3.5 Access Point Mode

2.3.5.1. Hardware connection
This mode transforms your existing wired network to a wireless network.
TL-WR841HP 300Mbps High Power Wireless N Router
-12-
