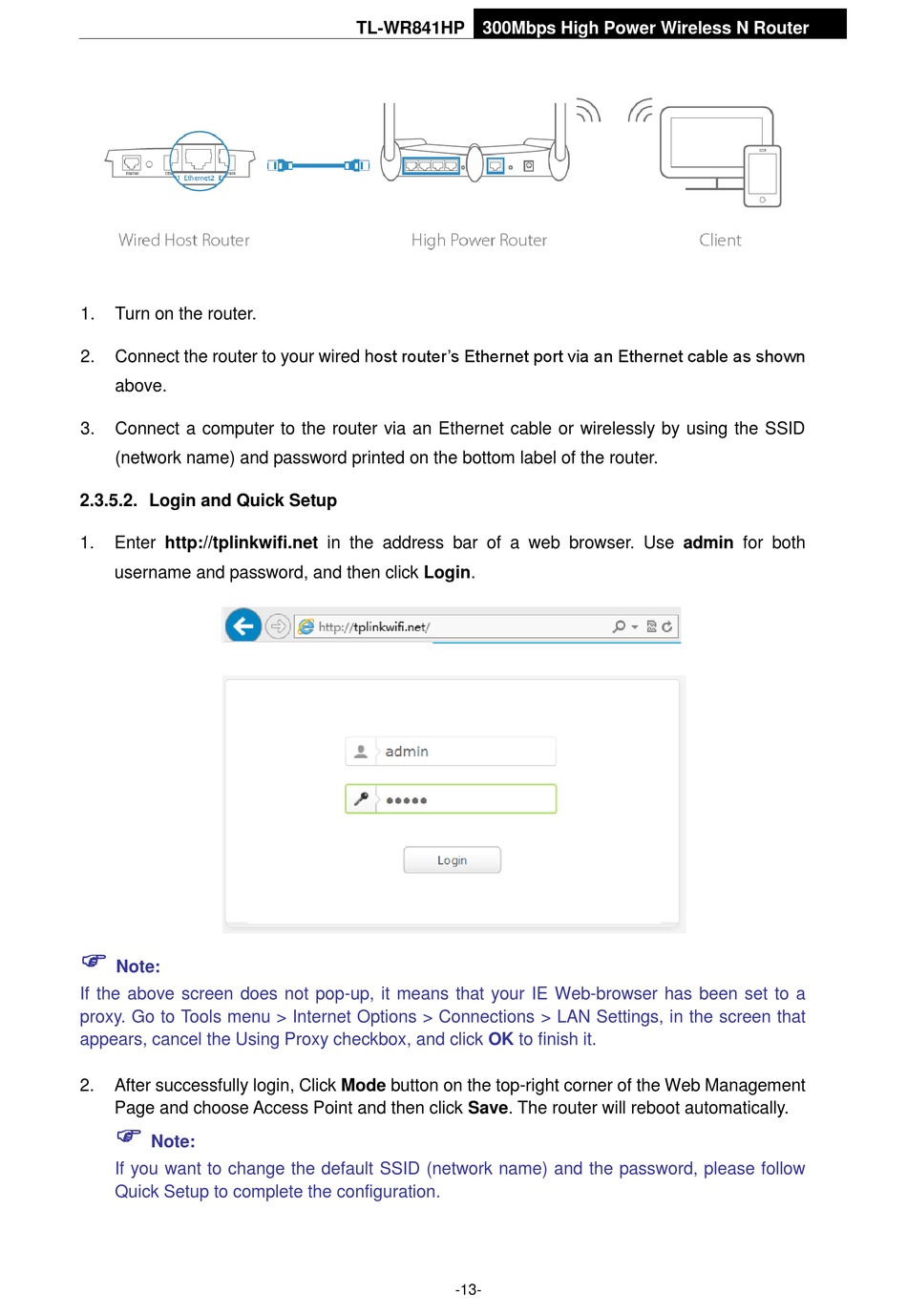

TP-Link TL-WR841HP User Manual page 22

1. Turn on the router.
Connect the router to your wired host router's Ethernet port via an Ethernet cable as shown
2.
above.
3. Connect a computer to the router via an Ethernet cable or wirelessly by using the SSID
(network name) and password printed on the bottom label of the router.
2.3.5.2. Login and Quick Setup
1. Enter http://tplinkwifi.net in the address bar of a web browser. Use admin for both
username and password, and then click Login.

Note:
If the above screen does not pop-up, it means that your IE Web-browser has been set to a
proxy. Go to Tools menu > Internet Options > Connections > LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully login, Click Mode button on the top-right corner of the Web Management
Page and choose Access Point and then click Save. The router will reboot automatically.

Note:
If you want to change the default SSID (network name) and the password, please follow
Quick Setup to complete the configuration.
TL-WR841HP 300Mbps High Power Wireless N Router
-13-
