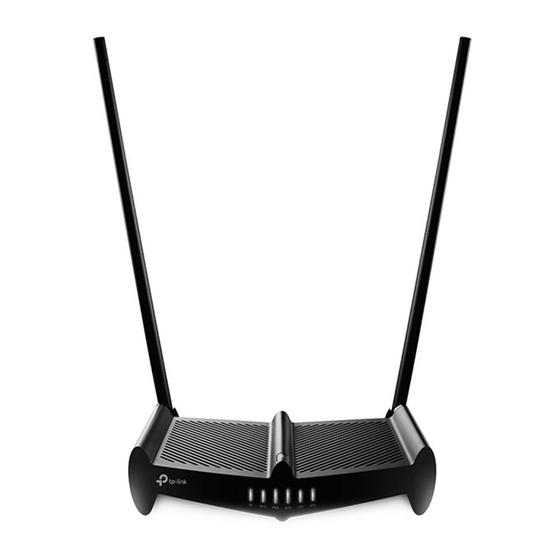

TP-Link TL-WR841HP Quick Installation Manual

Faster and Stronger
Quick Installation Guide
TL-WR841HP
Install the Antennas
Configure the Router
1.
B. Make sure that the
adjustable elbow is
facing up when
attached.
A. Insert and screw the
antenna into the antenna
socket.
Router Mode
This mode enables multiple users to share internet connection via an ADSL/Cable Modem. If your internet connection is through an Ethernet cable directly from the wall instead of through a
modem, connect the Ethernet cable to the router's Internet port, and skip Step 1, 2 and 3.
Modem
1
Turn off the modem, and
remove the backup battery if
any.
3
Turn on the modem and wait
about 2 minutes for it to
restart.
5
Connect your device to the router and check the LEDs.
Wired: Wireless:
Connect your computer to Connect wirelessly by using the SSID
the router's Ethernet port (network name) and Wireless Password
via an Ethernet cable.
printed on the label of the router.
RE Wi-Fi PWR WAN LAN WPS RE Wi-Fi PWR WAN
ON ON ON ON ON ON ON
2.
Slide the cap onto the
antenna until it fixes into place.
Please note that the router provides three working
modes: Router, Repeater and Access Point. You can
choose the mode to better suit your network needs
and follow the guide to complete the configuration.
2
Connect the modem to the
router's Internet port via an
Ethernet cable.
6
Configure the router.
1. Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the
address bar. Use admin for both username and password, and then click Log In.
2. Click Next to start the Quick Setup.
step-by-step instructions to complete the initial configuration.
If you have customized the SSID (network name) and wireless password during the
LAN WPS
configuration, you have to reconnect your wireless devices to the new wireless network.
3.
Position the antenna
vertically for best Wi-Fi
performance.
Router
4
Connect the power adapter to
the router and turn on the router.
Select Wireless Router and follow the
