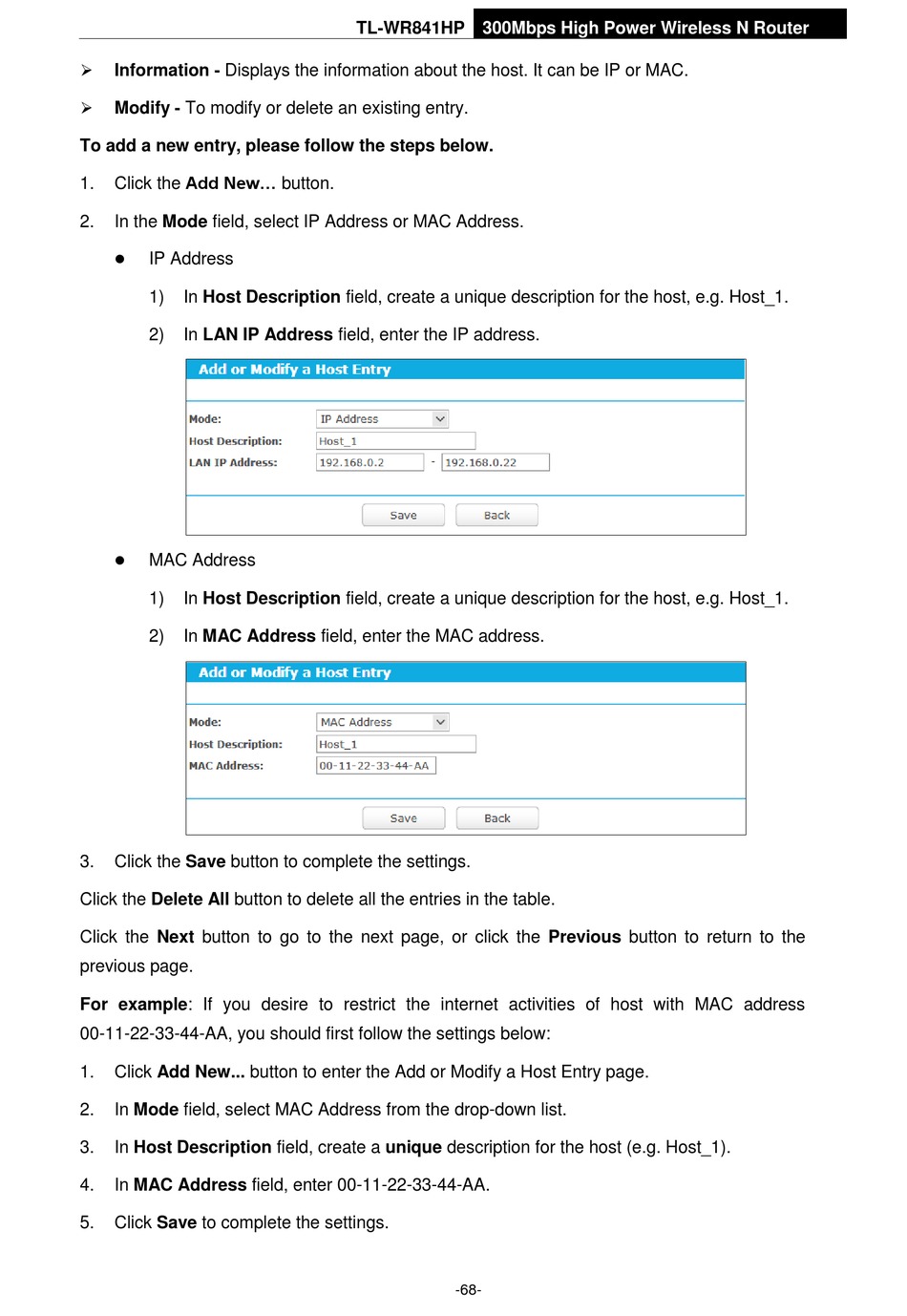

TP-Link TL-WR841HP User Manual page 77


Information - Displays the information about the host. It can be IP or MAC.

Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
Click the Add New... button.
1.
2. In the Mode field, select IP Address or MAC Address.

IP Address
1) In Host Description field, create a unique description for the host, e.g. Host_1.
2) In LAN IP Address field, enter the IP address.

MAC Address
1) In Host Description field, create a unique description for the host, e.g. Host_1.
2) In MAC Address field, enter the MAC address.
3. Click the Save button to complete the settings.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button to return to the
previous page.
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button to enter the Add or Modify a Host Entry page.
2. In Mode field, select MAC Address from the drop-down list.
3. In Host Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00-11-22-33-44-AA.
5. Click Save to complete the settings.
TL-WR841HP 300Mbps High Power Wireless N Router
-68-
