TP-Link TL-WR841N Quick Installation Manual

Quick Installation Guide

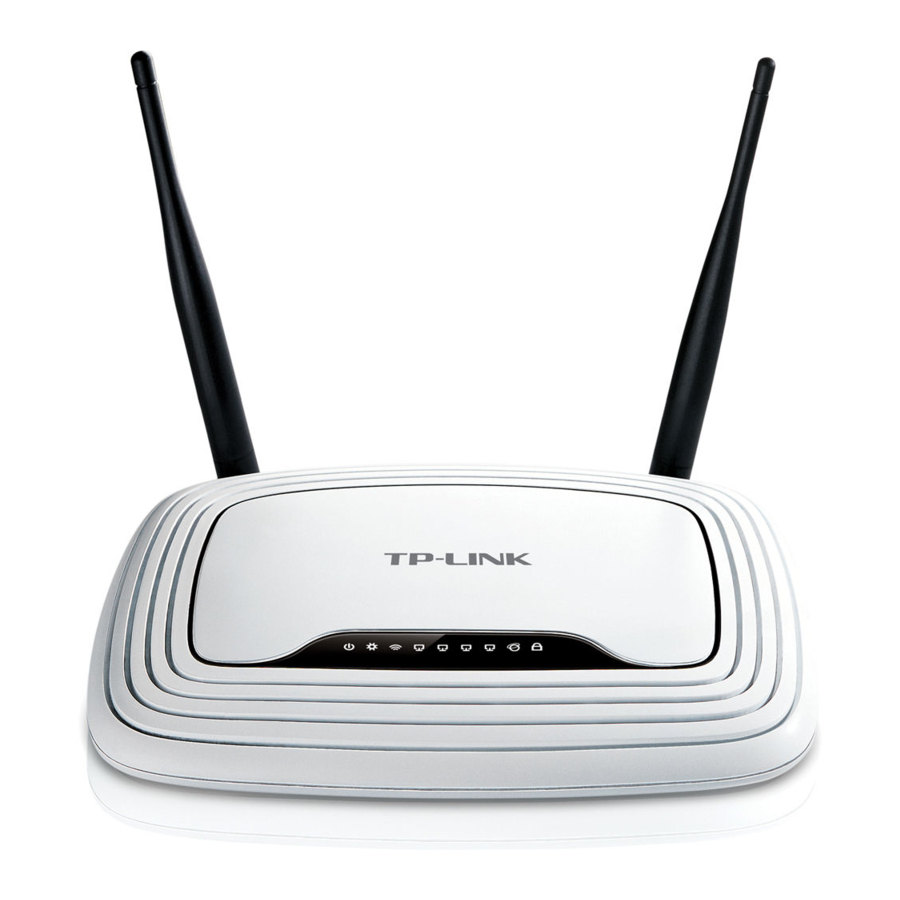

300Mbps Wireless N Router
TL - WR841N / TL - WR841ND
7106506140 REV7.0.1

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's WAN port, then follow steps 4 and 5 to
complete the hardware connection.
Internet
Power adapter
Power adapter
Modem
Router
4
Turn on the router.
1
Turn off the modem and
remove the backup battery
if it has one.
2
Connect an Ethernet cable from
the modem to the WAN port on
your router.
3
Turn on the modem and
then wait about 2 minutes
for it to restart.
5
Verify that the hardware
connection is correct by
checking these LEDs.
Power WLAN WAN
On On On
Note: If the WLAN LED is not on, please
press the WIFI ON/OFF button on the
back panel for 4 seconds and check the
LEDs again in a few seconds later.
