MBT-5003 L-Band Up/Down Converter System
Ethernet Management
6.5.5.3
Config Pages
Select the MBT, Utility, or Redundancy hyperlink to continue.
6.5.5.3.1
Config | MBT
Note: Low Noise Amplifier (LNA) operation is not supported by the MBT-5003. The Converter
A LNA and LPT, Converter B LNA and LPT, and Calibrate LNA Current sections of this
page are therefore nonfunctional.
The 'Config | MBT' page (Figure 6-6) provides the means to configure the communications,
operations, and alarms/faults handling for the MBT-5003 base unit and individual converters.

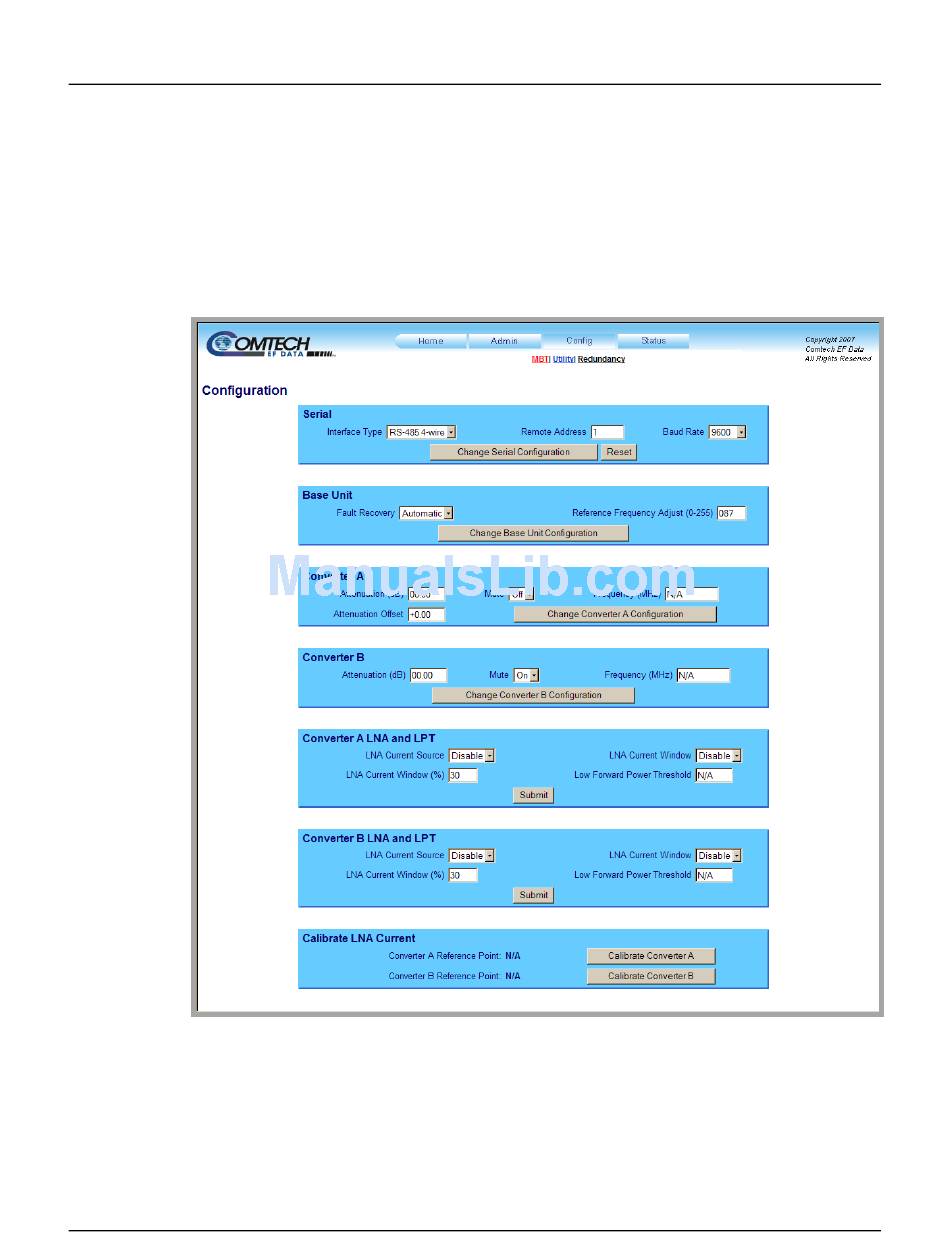

Figure 6-6. Config | MBT page
6–14
Revision 1
MN-MBT5003
