MBT-5003 L-Band Up/Down Converter System
Front Panel Operation
5.3
SELECT: (Main) Menu
SELECT: Config
Info Utility Test

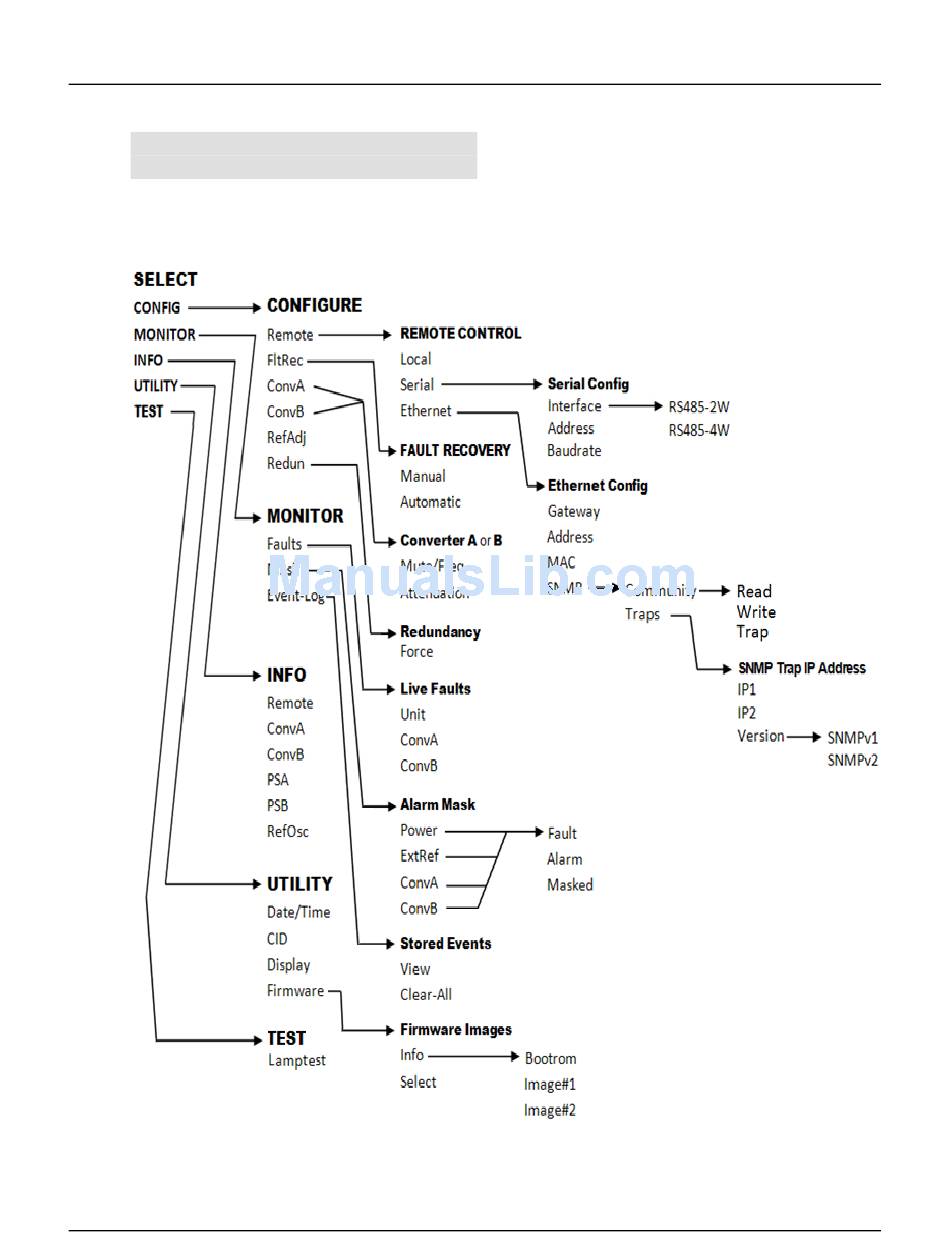

Figure 5-2 illustrates the hierarchal structure of the SELECT: (Main) menu tree. The converter
commands are in a tree structured menu format designed for access and execution of all control
functions, and to prevent the execution of an invalid entry by the operator.
Monitor
Figure 5-2. MBT-5003 Principal Menu Tree
5–5
Revision 1
MN-MBT5003
