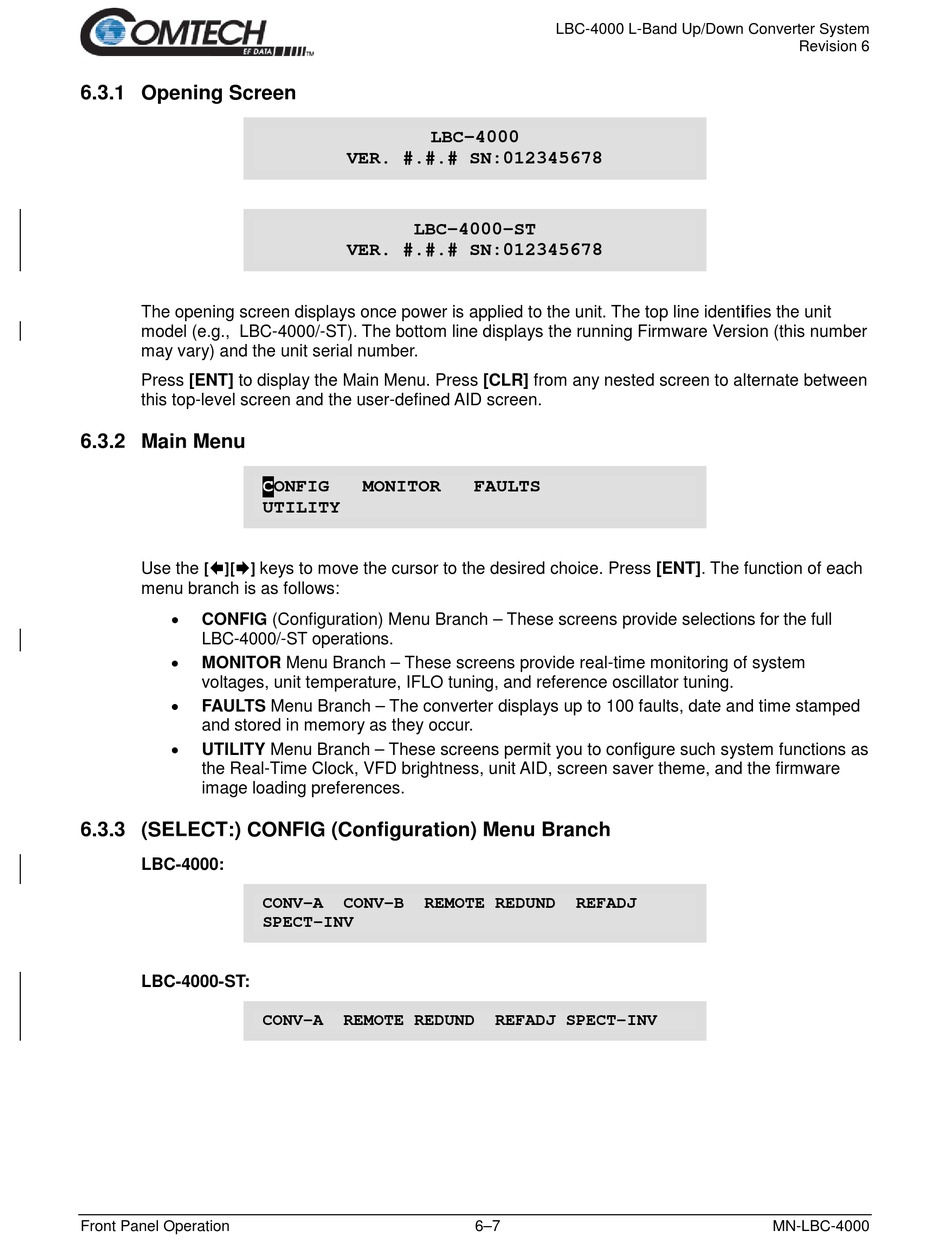

6.3.1 Opening Screen

The opening screen displays once power is applied to the unit. The top line identifies the unit
model (e.g., LBC-4000/-ST). The bottom line displays the running Firmware Version (this number
may vary) and the unit serial number.
Press [ENT] to display the Main Menu. Press [CLR] from any nested screen to alternate between
this top-level screen and the user-defined AID screen.

6.3.2 Main Menu

Use the [][] keys to move the cursor to the desired choice. Press [ENT]. The function of each
menu branch is as follows:
•
CONFIG (Configuration) Menu Branch – These screens provide selections for the full
LBC-4000/-ST operations.
•
MONITOR Menu Branch – These screens provide real-time monitoring of system
voltages, unit temperature, IFLO tuning, and reference oscillator tuning.
•
FAULTS Menu Branch – The converter displays up to 100 faults, date and time stamped
and stored in memory as they occur.
•
UTILITY Menu Branch – These screens permit you to configure such system functions as
the Real-Time Clock, VFD brightness, unit AID, screen saver theme, and the firmware
image loading preferences.

6.3.3 (SELECT:) CONFIG (Configuration) Menu Branch

LBC-4000:
LBC-4000-ST:
Front Panel Operation
LBC-4000
VER. #.#.# SN:012345678
LBC-4000-ST
VER. #.#.# SN:012345678
CONFIG MONITOR
UTILITY
CONV-A CONV-B REMOTE REDUND
SPECT-INV
CONV-A REMOTE REDUND
LBC-4000 L-Band Up/Down Converter System
FAULTS
REFADJ
REFADJ SPECT-INV
