MBT-5003 L-Band Up/Down Converter System
Ethernet Management
6.5.5.3.3
Config | Redundancy
For detailed information about 1:1 Redundant operations, see Appendix B.
MBT-5003 REDUNDANCY OPERATION.
IMPORTANT
The 'Config | Redundancy' page (Figure 6-8) is used to configure the MBT-5003's Redundancy
Switch operation.
Redundancy Mode
Use the drop-down menu to Enable or Disable Redundancy Mode, then click [Change
Redundancy Mode] to update MBT-5003 operation to the current Redundancy Mode status.
Redundancy Switch Override
Click [Force Converter A Offline] to force the Converter A into standby mode.

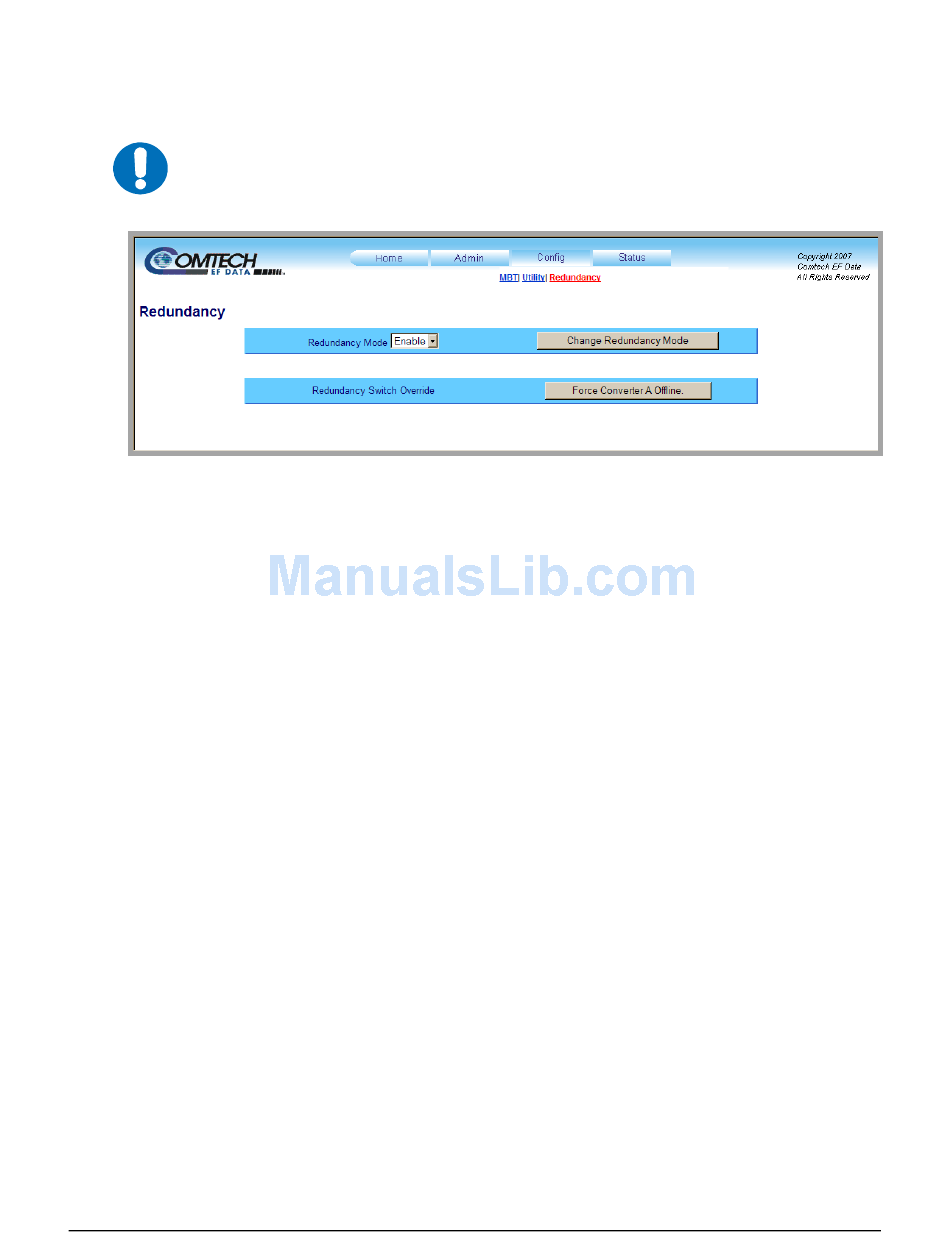

Figure 6-8. Config | Redundancy page
6–17
Revision 1
MN-MBT5003
