MBT-5003 L-Band Up/Down Converter System
Ethernet Management
6.5.5.2.2
Admin | SNMP
The 'Admin | SNMP' page (Figure 6-5) sets and returns administration information for the
MBT-5003 Simple Network Management Protocol (SNMP) feature.
Simple Network Management Operational Status: Using the drop-down menu, select the
Simple Network Management operational setting as Enabled or Disabled.
The SNMP Read and Write Community String fields can be any combination of characters and
a length of 0 - 20 characters:
•
The factory default for the Read Community String parameter is public.
•
The factory default Write Community String is private.
Enable Authentication Trap: Using the drop-down menu, select the Enable Authentication Trap
operational setting as Enabled or Disabled.
The Administrator can assign up to two SNMP Trap IP addresses and one SNMP Trap
Community String. The SNMP Trap Community String field can be any combination of
characters and a length of 0 - 20 characters:
•
The factory default for the Trap Community String is comtech.
Trap Version: Using the drop-down menu, select the SNMP Trap Version as SNMPv1 or
SNMPv2.
For details pertaining to the remaining configuration parameters available on this page, refer to
Sect. 6.3 SNMP INTERFACE.
Once the desired SNMP assignations have been made on this page, click [Submit SNMP] to save
these changes. Otherwise, click [Reset] if it is desired to revert back to the previously assigned
SNMP.

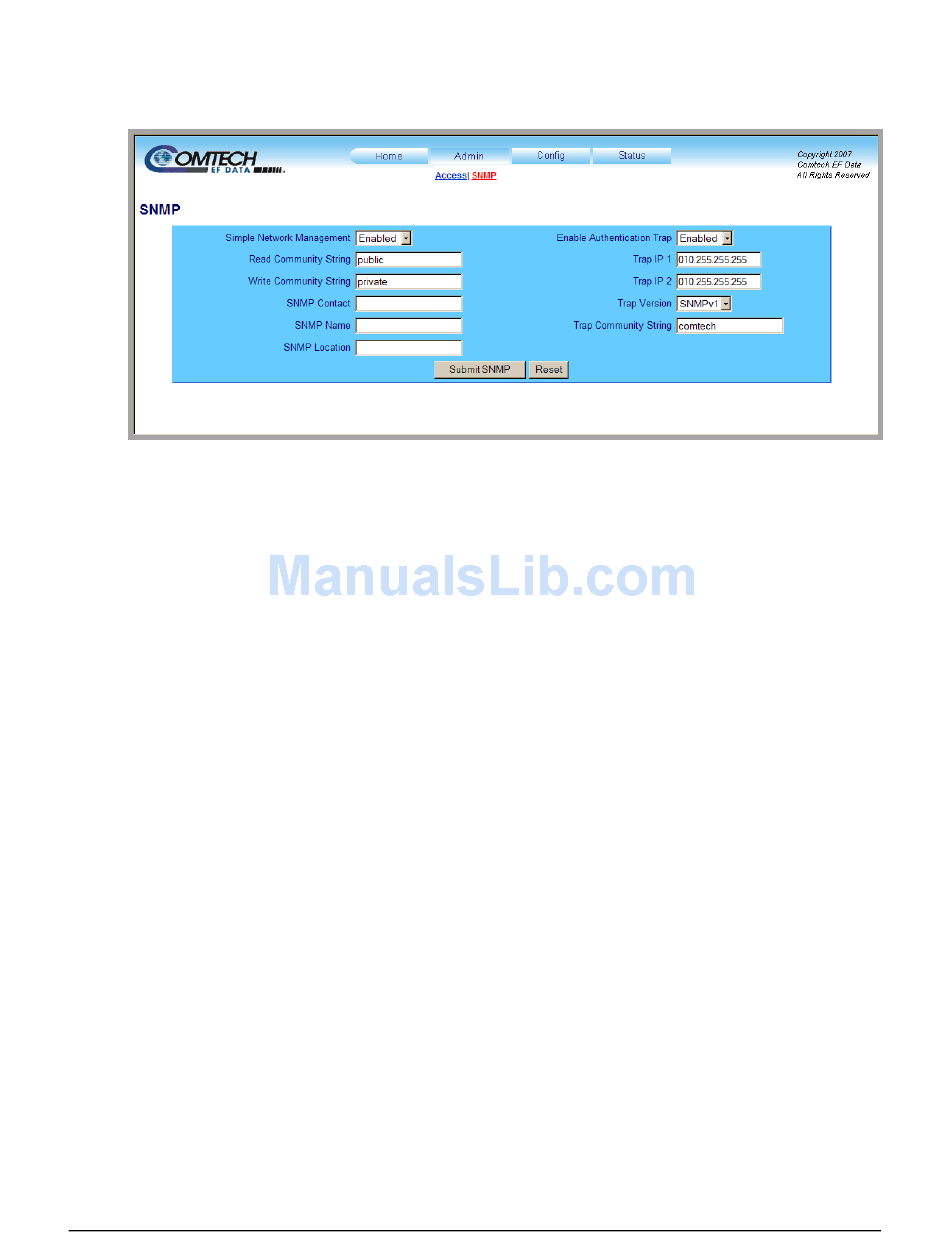

Figure 6-5. Admin | SNMP page
6–13
Revision 1
MN-MBT5003
