By clicking on the wizard icon, the Easy EDID Creator opens in a new window.
For further information, see the user's manual of Easy EDID Creator on the Lightware
website:

9.5. Terminal menu

This general-purpose serial terminal is intended mainly for testing and debugging
purposes. After a successful connection is established with a transmitter this terminal can
be used either via serial RS-232 or USB connection. All commands can be used here that
are discussed in the programmer's reference, chapter
typed directly.
By default commands are automatically surrounded by framing brackets. Every sent
command and every received response gets an arrow (-> or <-) prefix, and has different
font colors in order to help distinguishing.
The timecode in every row shows the exact time when the command was sent or the
response received.
If the "Command framing" checkbox is unchecked, you can send multiple commands
together, however in this case you have to type in the framing brackets manually.
Page 66 / 107
www.lightware.eu

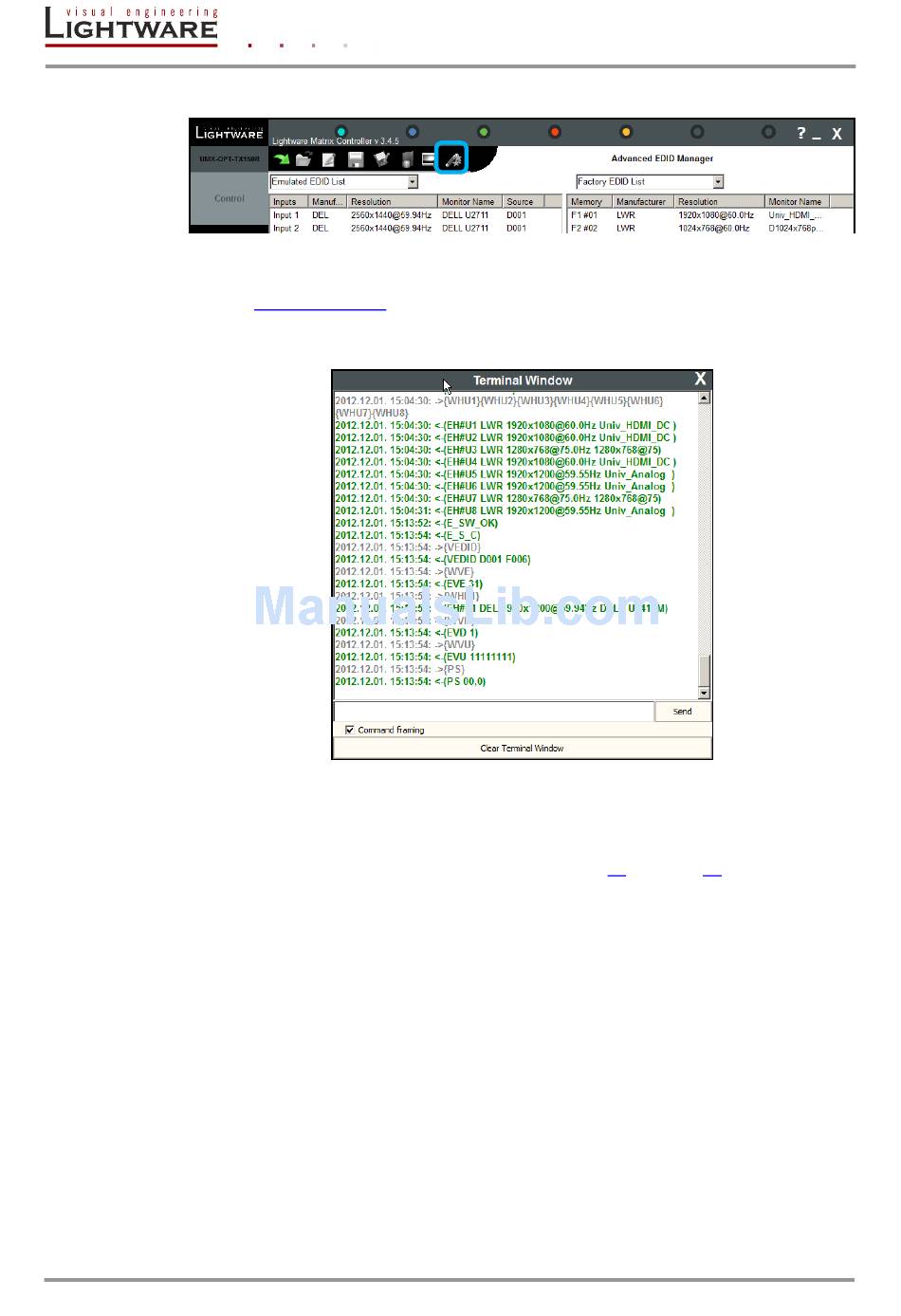

Figure 9-8. Terminal window
Section 9. Software control – Using the Lightware Matrix Controller
10 on page 69. The text can be
