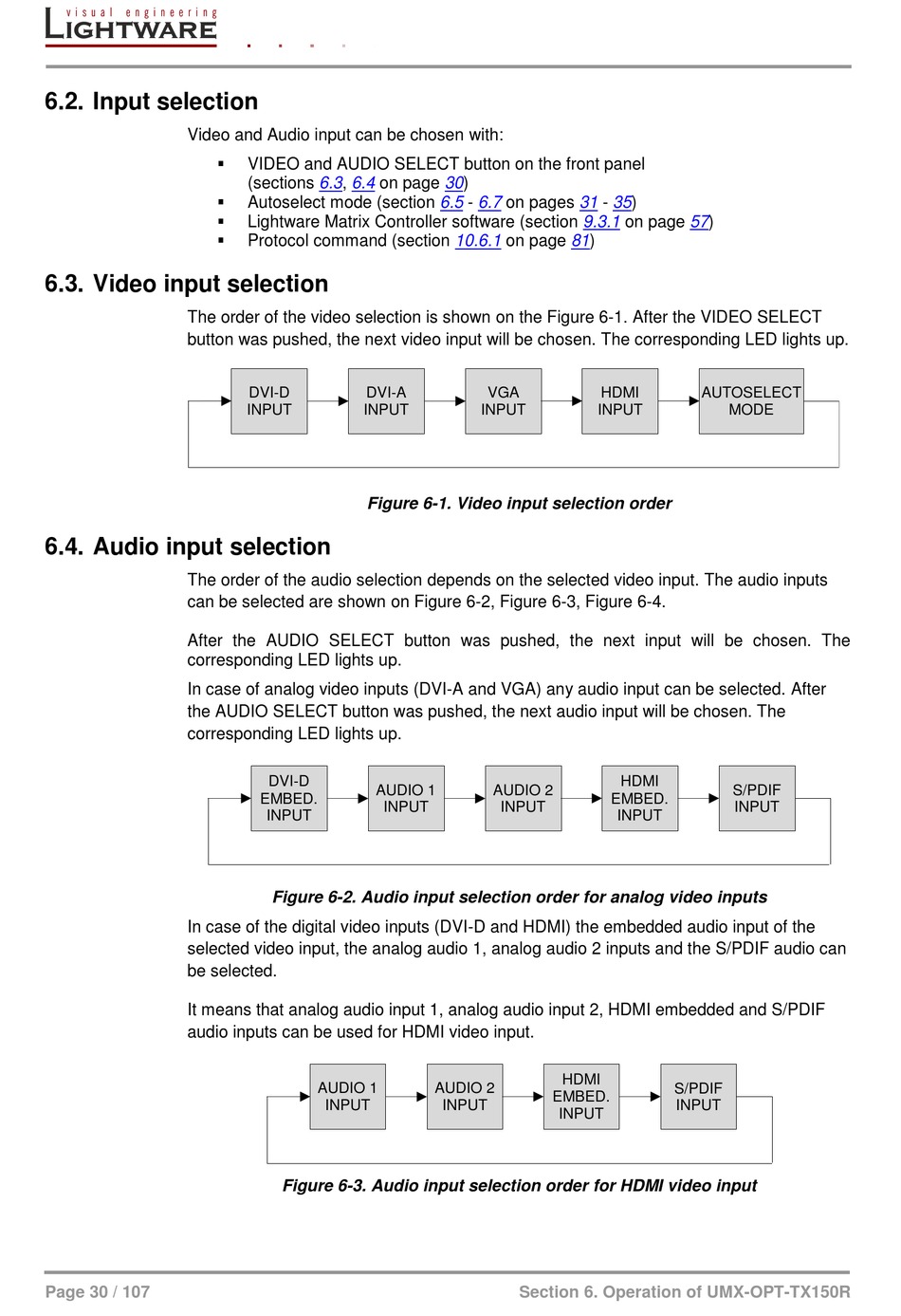

6.2. Input selection

Video and Audio input can be chosen with:

6.3. Video input selection

The order of the video selection is shown on the Figure 6-1. After the VIDEO SELECT
button was pushed, the next video input will be chosen. The corresponding LED lights up.

6.4. Audio input selection

The order of the audio selection depends on the selected video input. The audio inputs
can be selected are shown on Figure 6-2, Figure 6-3, Figure 6-4.
After the AUDIO SELECT button was pushed, the next input will be chosen. The
corresponding LED lights up.
In case of analog video inputs (DVI-A and VGA) any audio input can be selected. After
the AUDIO SELECT button was pushed, the next audio input will be chosen. The
corresponding LED lights up.
In case of the digital video inputs (DVI-D and HDMI) the embedded audio input of the
selected video input, the analog audio 1, analog audio 2 inputs and the S/PDIF audio can
be selected.
It means that analog audio input 1, analog audio input 2, HDMI embedded and S/PDIF
audio inputs can be used for HDMI video input.
Page 30 / 107

VIDEO and AUDIO SELECT button on the front panel
(sections 6.3, 6.4 on page 30)

Autoselect mode (section

Lightware Matrix Controller software (section

Protocol command (section
DVI-D DVI-A
INPUT INPUT
Figure 6-1. Video input selection order
DVI-D
AUDIO 1
EMBED.
INPUT
INPUT
Figure 6-2. Audio input selection order for analog video inputs
AUDIO 1
INPUT
Figure 6-3. Audio input selection order for HDMI video input
6.5 - 6.7 on pages 31 - 35)
9.3.1
10.6.1 on page 81)
VGA HDMI
INPUT INPUT
AUDIO 2
INPUT
HDMI
AUDIO 2
EMBED.
INPUT
INPUT
Section 6. Operation of UMX-OPT-TX150R
on page 57)
AUTOSELECT
MODE
HDMI
S/PDIF
EMBED.
INPUT
INPUT
S/PDIF
INPUT
