4.8. Analog audio connectors

Unbalanced analog audio 1 and audio 2 can be connected to the device with TRS (Tip,
Ring, and Sleeve) connectors. They are also known as (3,5 mm or approx. 1/8") audio
jack, phone jack, phone plug, and mini-jack plug.

4.9. DC +5V connection

The device has locking DC connector to establish robust and safe power connection.

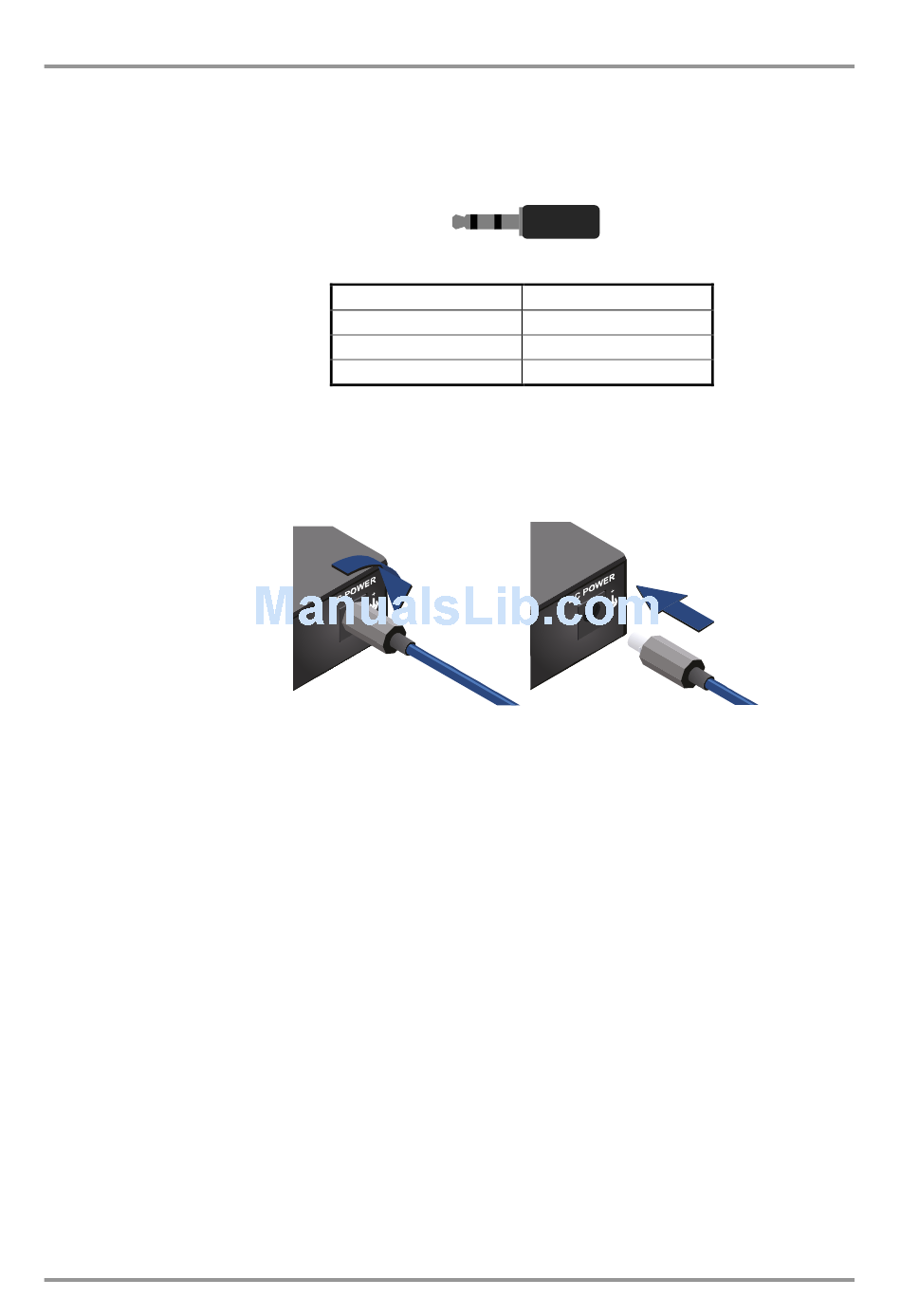

After plugging it in, turn the plug clockwise as you can see in the picture below.
Do not forget to turn the connector counterclockwise before trying to disconnect the
power adaptor.
Always use the supplied +5V power adaptor.
Warning! Warranty void if damage occurs due to use of a different power source.
Section 4. Electrical connections
1 2 3
3 pole TRS
1 Tip
2 Ring
3 Sleeve
Table 4-7. TRS connector pin assignment
Locking DC connector
TRS connector
Right channel
Left channel
GND
