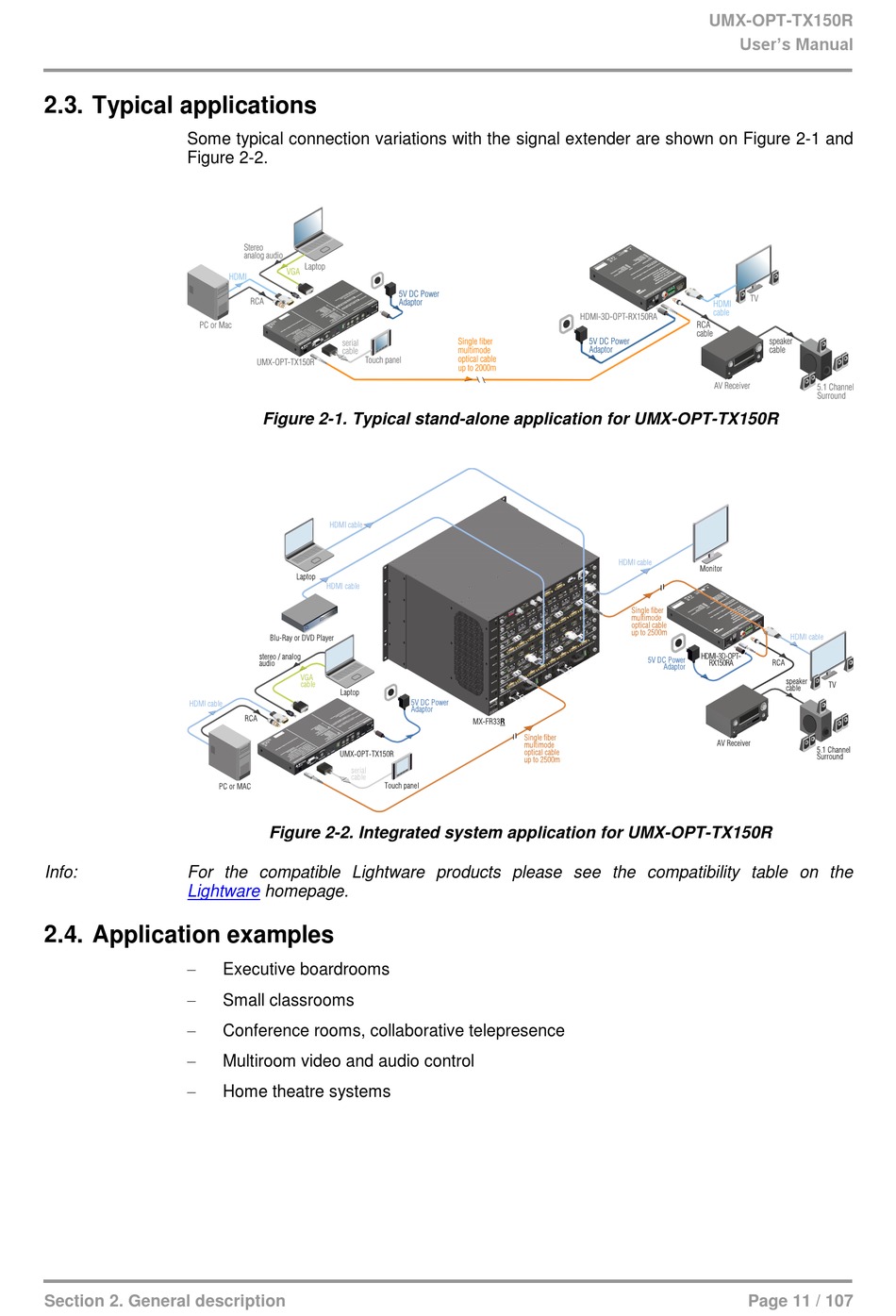

2.3. Typical applications
Some typical connection variations with the signal extender are shown on Figure 2-1 and
Figure 2-2.
Info:
For the compatible Lightware products please see the compatibility table on the
Lightware
2.4. Application examples
Section 2. General description
Figure 2-1. Typical stand-alone application for UMX-OPT-TX150R
Figure 2-2. Integrated system application for UMX-OPT-TX150R
homepage.
Executive boardrooms
Small classrooms
Conference rooms, collaborative telepresence
Multiroom video and audio control
Home theatre systems
UMX-OPT-TX150R
User's Manual
Page 11 / 107
