Video
Resolution, color depth and colorspace of the incoming signal are shown here.
The 'Timing type' and 'Timing ID' fields show which parameters are used to digitize the
incoming analog signal. The input port measures the incoming analog signal and
determines the timings. If the parameters need adjustment, it can be done on the right
side at 'analog options'. In this case the 'Timing ID' field changes to 'user modified' unless
the parameters are not saved.
Info: These fields are filled automatically by the device after the examination of the signal.
Audio
Information about the embedded audio signal is shown here. (Audio signal, audio type,
sampling frequency, channel allocation)
Info: These fields are filled automatically by the device after the examination of the signal.
Reload factory defaults
Current input: Reloads the default values to the currently selected input.
Analog video options
Analog video signals are digitized on the input. The timing parameters can be adjusted
here if needed. Timing presets can be saved for each resolution separately.
Screen position
Screen position is an easy way to fit the visible area of
the analog video signal and the sink device. Actually the
horizontal and vertical positions (H.Pos and V.Pos) can
be set with two different methods:
1. Click on the arrows to increase or decrease the
2. Move the mouse over the visible (grey) area. Click and hold with the left mouse
Section 9. Software control – Using the Lightware Matrix Controller

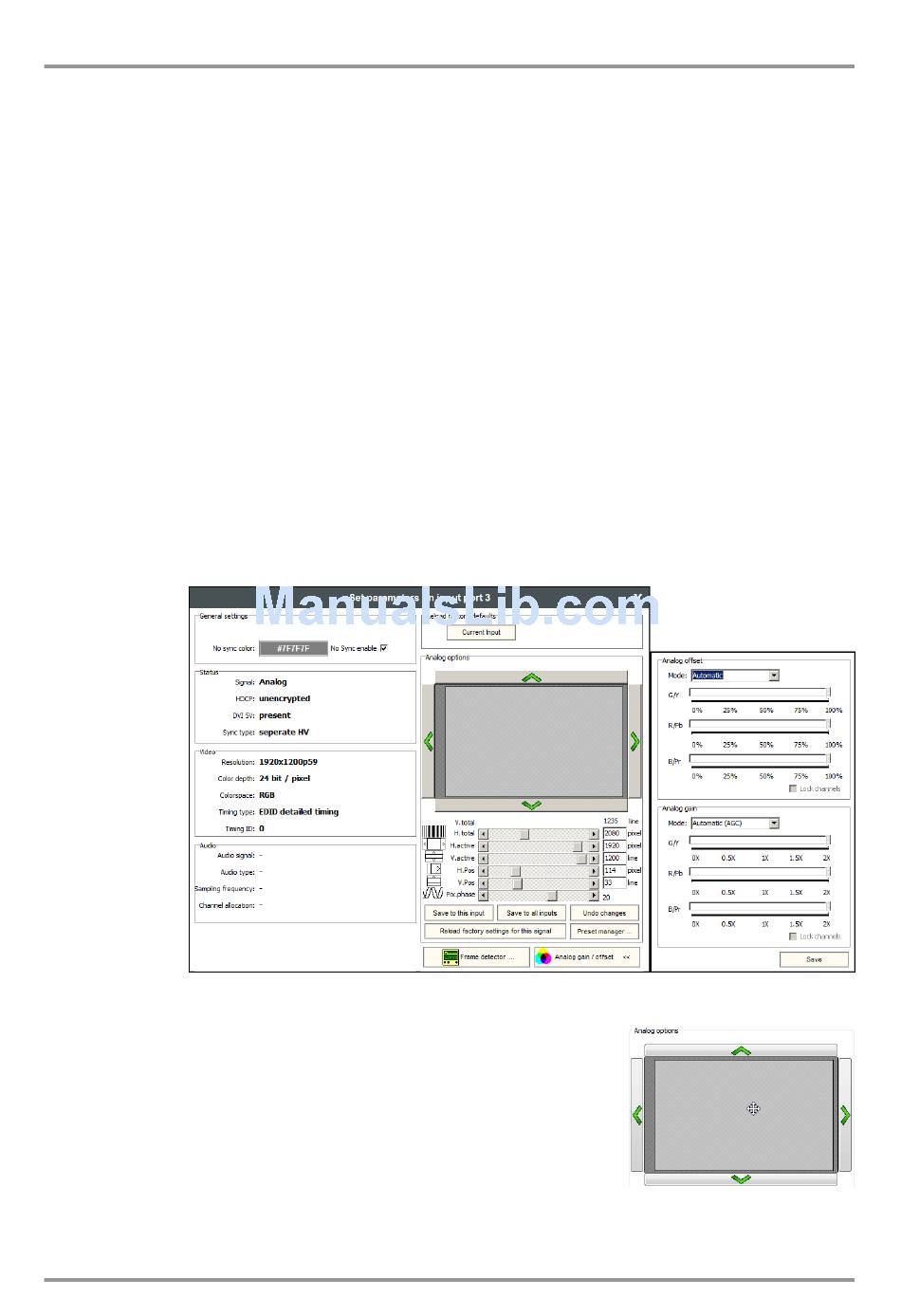

9-6. Input parameters for analog signal
H.Pos and V.Pos values,
OR
button. Drag the visible area to the desired position.
