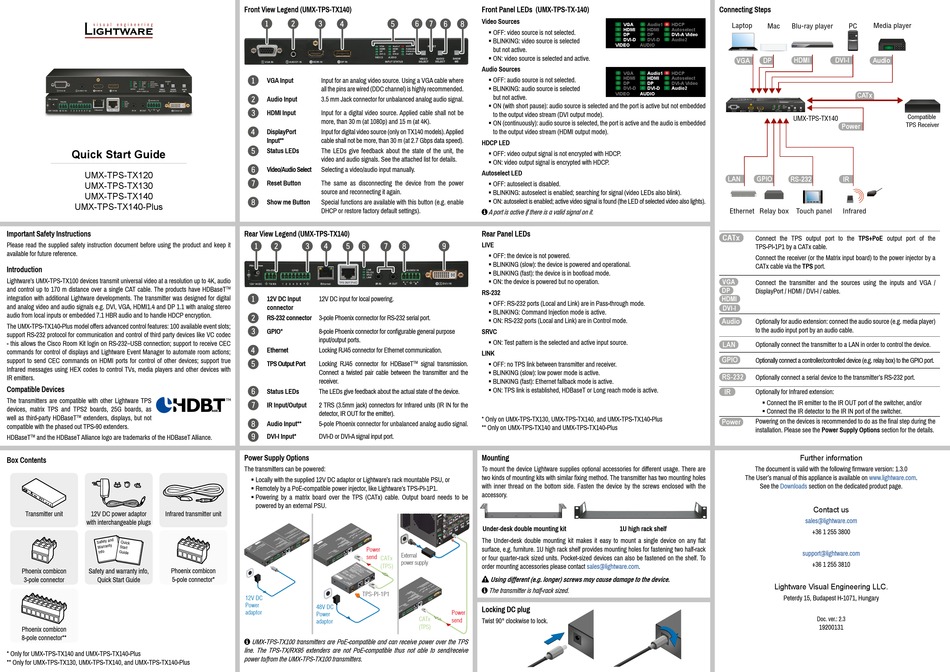

Lightware UMX-TPS-TX140 Quick Start Manual

Quick Start Guide
UMX-TPS-TX120
UMX-TPS-TX130
UMX-TPS-TX140
UMX-TPS-TX140-Plus

Important Safety Instructions

Please read the supplied safety instruction document before using the product and keep it
available for future reference.

Introduction

Lightware's UMX-TPS-TX100 devices transmit universal video at a resolution up to 4K, audio
and control up to 170 m distance over a single CAT cable. The products have HDBaseT
integration with additional Lightware developments. The transmitter was designed for digital
and analog video and audio signals e.g. DVI, VGA, HDMI1.4 and DP 1.1 with analog stereo
audio from local inputs or embedded 7.1 HBR audio and to handle HDCP encryption.
The UMX-TPS-TX140-Plus model offers advanced control features: 100 available event slots;
support RS-232 protocol for communication and control of third party devices like VC codec
- this allows the Cisco Room Kit login on RS-232–USB connection; support to receive CEC
commands for control of displays and Lightware Event Manager to automate room actions;
support to send CEC commands on HDMI ports for control of other devices; support true
Infrared messages using HEX codes to control TVs, media players and other devices with
IR emitters.

Compatible Devices

The transmitters are compatible with other Lightware TPS
devices, matrix TPS and TPS2 boards, 25G boards, as
well as third-party HDBaseT TM extenders, displays, but not
compatible with the phased out TPS-90 extenders.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM

Box Contents

Transmitter unit 12V DC power adaptor Infrared transmitter unit
with interchangeable plugs
Phoenix combicon Safety and warranty info, Phoenix combicon
5-pole connector*
3-pole connector Quick Start Guide
Phoenix combicon
8-pole connector**
* Only for UMX-TPS-TX140 and UMX-TPS-TX140-Plus
** Only for UMX-TPS-TX130, UMX-TPS-TX140, and UMX-TPS-TX140-Plus

Front View Legend (UMX-TPS-TX140)

1 2 3 4 5
1
VGA Input Input for an analog video source. Using a VGA cable where
all the pins are wired (DDC channel) is highly recommended.
2 Audio Input 3.5 mm Jack connector for unbalanced analog audio signal.
3
HDMI Input Input for a digital video source. Applied cable shall not be
more, than 30 m (at 1080p) and 15 m (at 4K).
4
DisplayPort Input for digital video source (only on TX140 models). Applied
Input** cable shall not be more, than 30 m (at 2.7 Gbps data speed).
5
Status LEDs The LEDs give feedback about the state of the unit, the
video and audio signals. See the attached list for details.
6
Video/Audio Select Selecting a video/audio input manually.
7
Reset Button The same as disconnecting the device from the power
source and reconnecting it again.
8
Show me Button Special functions are available with this button (e.g. enable
DHCP or restore factory default settings).

Rear View Legend (UMX-TPS-TX140)

1 2 3 4 5 6 7 8
TM
1
12V DC Input 12V DC input for local powering.
connector
2
RS-232 connector 3-pole Phoenix connector for RS-232 serial port.
3
GPIO* 8-pole Phoenix connector for configurable general purpose
input/output ports.
4
Ethernet Locking RJ45 connector for Ethernet communication.
5
TPS Output Port Locking RJ45 connector for HDBaseT
Connect a twisted pair cable between the transmitter and the
receiver.
6
Status LEDs The LEDs give feedback about the actual state of the device.
7
IR Input/Output 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
detector, IR OUT for the emitter).
8
Audio Input** 5-pole Phoenix connector for unbalanced analog audio signal.
9
DVI-I Input* DVI-D or DVI-A signal input port.

Power Supply Options

The transmitters can be powered:
ƒ Locally with the supplied 12V DC adaptor or Lightware's rack mountable PSU, or
ƒ Remotely by a PoE-compatible power injector, like Lightware's TPS-PI-1P1.
ƒ Powering by a matrix board over the TPS (CATx) cable. Output board needs to be
powered by an external PSU.
IN I-I IN
2 IN DV I-I 2 IN DV
AU DIO AU DIO
Power
LIVE 232 LIVE RS- C 232
RS- SRV C OU T SRV T OU
LINK IN IR LINK IN IR
IR IR
External
send
IO IO CATx
GP GP
2
-23 2 -23
RS mm RS power supply
: 2.1 mm : 2.1
PIN RX PIN TX RX
TX (TPS)
DC
1A DC 1A
12V 12V
TPS-PI-1P1
12V DC
Power
48V DC
adaptor
Power
2
RS -23
mm
: 2.1
PIN TX RX
adaptor DC
1A
12V
 UMX-TPS-TX100 transmitters are PoE-compatible and can receive power over the TPS
line. The TPS-TX/RX95 extenders are not PoE-compatible thus not able to send/receive
power to/from the UMX-TPS-TX100 transmitters.
Front Panel LEDs (UMX-TPS-TX-140)
Video Sources
6 7 6 8
ƒ OFF: video source is not selected.
ƒ BLINKING: video source is selected
but not active.
ƒ ON: video source is selected and active.
Audio Sources
ƒ OFF: audio source is not selected.
ƒ BLINKING: audio source is selected
but not active.
ƒ ON (with short pause): audio source is selected and the port is active but not embedded
to the output video stream (DVI output mode).
ƒ ON (continuously): audio source is selected, the port is active and the audio is embedded
to the output video stream (HDMI output mode).
HDCP LED
ƒ OFF: video output signal is not encrypted with HDCP.
ƒ ON: video output signal is encrypted with HDCP.
Autoselect LED
ƒ OFF: autoselect is disabled.
ƒ BLINKING: autoselect is enabled; searching for signal (video LEDs also blink).
ƒ ON: autoselect is enabled; active video signal is found (the LED of selected video also lights).
 A port is active if there is a valid signal on it.
Rear Panel LEDs
9 LIVE
ƒ OFF: the device is not powered.
ƒ BLINKING (slow): the device is powered and operational.
ƒ BLINKING (fast): the device is in bootload mode.
ƒ ON: the device is powered but no operation.
RS-232
ƒ OFF: RS-232 ports (Local and Link) are in Pass-through mode.
ƒ BLINKING: Command Injection mode is active.
ƒ ON: RS-232 ports (Local and Link) are in Control mode.
SRVC
ƒ ON: Test pattern is the selected and active input source.
LINK
TM signal transmission. ƒ OFF: no TPS link between transmitter and receiver.
ƒ BLINKING (slow): low power mode is active.
ƒ BLINKING (fast): Ethernet fallback mode is active.
ƒ ON: TPS link is established, HDBaseT or Long reach mode is active.
* Only on UMX-TPS-TX130, UMX-TPS-TX140, and UMX-TPS-TX140-Plus
** Only on UMX-TPS-TX140 and UMX-TPS-TX140-Plus

Mounting

To mount the device Lightware supplies optional accessories for different usage. There are
two kinds of mounting kits with similar fixing method. The transmitter has two mounting holes
with inner thread on the bottom side. Fasten the device by the screws enclosed with the
accessory.
Under-desk double mounting kit
The Under-desk double mounting kit makes it easy to mount a single device on any flat
surface, e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack
or four quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To
order mounting accessories please contact sales@lightware.com.
 Using different (e.g. longer) screws may cause damage to the device.
 The transmitter is half-rack sized.
2 IN I-I IN
DIO DV
AU
LIVE
RS- 232 C
SRV LINK IR OU T
IR IN
Locking DC plug
GP IO
Power
CATx
send
Twist 90° clockwise to lock.
(TPS)

Connecting Steps

VGA Audio1 HDCP Laptop Mac Blu-ray player
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
HDMI
VGA DP
VGA Audio1 HDCP
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
HDMI VGA Audio1 HDMI Autoselect HDCP RESET
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
VIDEO AUDIO
VGA IN AUDIO1 IN HDMI IN DP IN INPUT STATUS SELECT SELECT
UMX-TPS-TX140
LAN GPIO RS-232
Ethernet Relay box
DVI
CATx
Connect the TPS output port to the TPS+PoE output port of the
TPS-PI-1P1 by a CATx cable.
Connect the receiver (or the Matrix input board) to the power injector by a
CATx cable via the TPS port.
VGA
Connect the transmitter and the sources using the inputs and VGA /
DP
DisplayPort / HDMI / DVI-I / cables.
HDMI
DVI-I
Audio
Optionally for audio extension: connect the audio source (e.g. media player)
to the audio input port by an audio cable.
LAN Optionally connect the transmitter to a LAN in order to control the device.
GPIO
Optionally connect a controller/controlled device (e.g. relay box) to the GPIO port.
RS-232
Optionally connect a serial device to the transmitter's RS-232 port.
IR
Optionally for Infrared extension:
ƒ Connect the IR emitter to the IR OUT port of the switcher, and/or
ƒ Connect the IR detector to the IR IN port of the switcher.
Power Powering on the devices is recommended to do as the final step during the
installation. Please see the Power Supply Options section for the details.
The document is valid with the following firmware version: 1.3.0
The User's manual of this appliance is available on www.lightware.com.
See the Downloads
1U high rack shelf
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
PC Media player
DVI-I
Audio
CATx
SHOW
ME
Compatible
Power TPS Receiver
IR
Touch panel Infrared
Further information
section on the dedicated product page.
Contact us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Doc. ver.: 2.3
19200131
