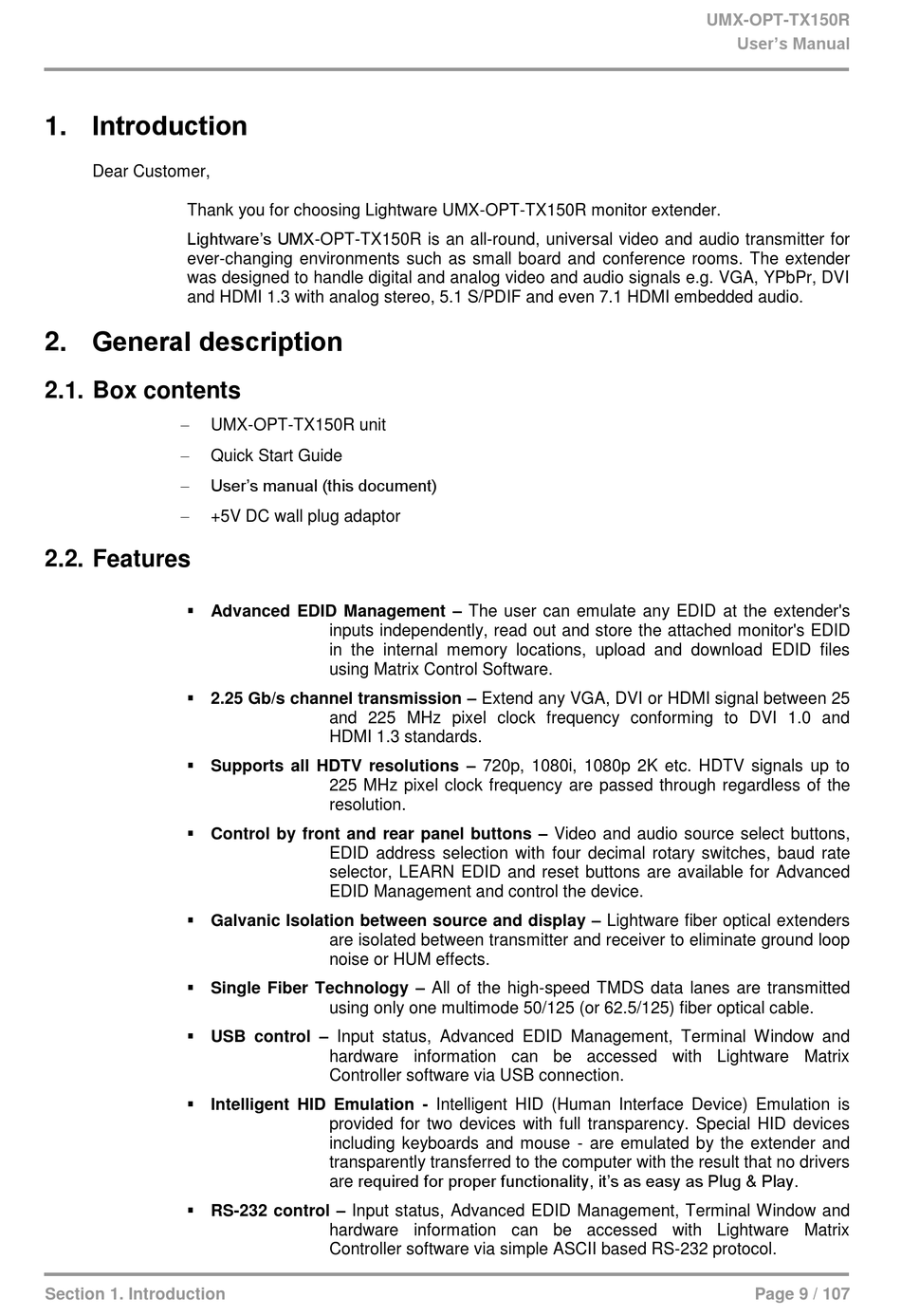

1. Introduction

Dear Customer,
Thank you for choosing Lightware UMX-OPT-TX150R monitor extender.
Lightware's UMX-OPT-TX150R is an all-round, universal video and audio transmitter for
ever-changing environments such as small board and conference rooms. The extender
was designed to handle digital and analog video and audio signals e.g. VGA, YPbPr, DVI
and HDMI 1.3 with analog stereo, 5.1 S/PDIF and even 7.1 HDMI embedded audio.

2. General description

2.1. Box contents


UMX-OPT-TX150R unit

Quick Start Guide

User's manual (this document)

+5V DC wall plug adaptor

2.2. Features

 Advanced EDID Management – The user can emulate any EDID at the extender's
 2.25 Gb/s channel transmission – Extend any VGA, DVI or HDMI signal between 25
 Supports all HDTV resolutions – 720p, 1080i, 1080p 2K etc. HDTV signals up to
 Control by front and rear panel buttons – Video and audio source select buttons,
 Galvanic Isolation between source and display – Lightware fiber optical extenders
 Single Fiber Technology – All of the high-speed TMDS data lanes are transmitted
 USB control – Input status, Advanced EDID Management, Terminal Window and
 Intelligent HID Emulation - Intelligent HID (Human Interface Device) Emulation is
 RS-232 control – Input status, Advanced EDID Management, Terminal Window and
Section 1. Introduction
inputs independently, read out and store the attached monitor's EDID
in the internal memory locations, upload and download EDID files
using Matrix Control Software.
and 225 MHz pixel clock frequency conforming to DVI 1.0 and
HDMI 1.3 standards.
225 MHz pixel clock frequency are passed through regardless of the
resolution.
EDID address selection with four decimal rotary switches, baud rate
selector, LEARN EDID and reset buttons are available for Advanced
EDID Management and control the device.
are isolated between transmitter and receiver to eliminate ground loop
noise or HUM effects.
using only one multimode 50/125 (or 62.5/125) fiber optical cable.
hardware information can be accessed with Lightware Matrix
Controller software via USB connection.
provided for two devices with full transparency. Special HID devices
including keyboards and mouse - are emulated by the extender and
transparently transferred to the computer with the result that no drivers
are required for proper functionality, it's as easy as Plug & Play.
hardware information can be accessed with Lightware Matrix
Controller software via simple ASCII based RS-232 protocol.
