Step 5. To run Lightware matrix control software find the shortcut
Uninstalling
To uninstall the control software double click on: Start menu  Programs  Lightware 
LW_matrix_controller_v3_4_5  Uninstall

9.2. Establishing the connection

Info: Lightware Matrix Controller can works with two baud rates: 9600 Baud or 57600 Baud.
The software is able to recognize and set the appropriate baud rate from the two values
mentioned above, but these values cannot set or changed by the user. If the computer
has different serial communication settings (e.g. 19200 Baud) the Matrix Controller
software cannot connect to the device.
Step 1. Connect the device and the computer either via
Info: Upon connecting the matrix to the computer with USB, the operating system recognizes
the device as a standard USB Input device (HID) and installs the required driver.
Step 2. Start the application
To run the CONTROL SOFTWARE double click on the icon of the software on the
desktop or select proper shortcut from Start Menu  Programs  Lightware folder.
Section 9. Software control – Using the Lightware Matrix Controller
icon in Start menu
LW_matrix_controller_v3_4_5 or on the desktop, and double
click:

Serial port, with an RS-232 Male to Female cable
(straight through)
 USB port, with a Mini USB-B cable

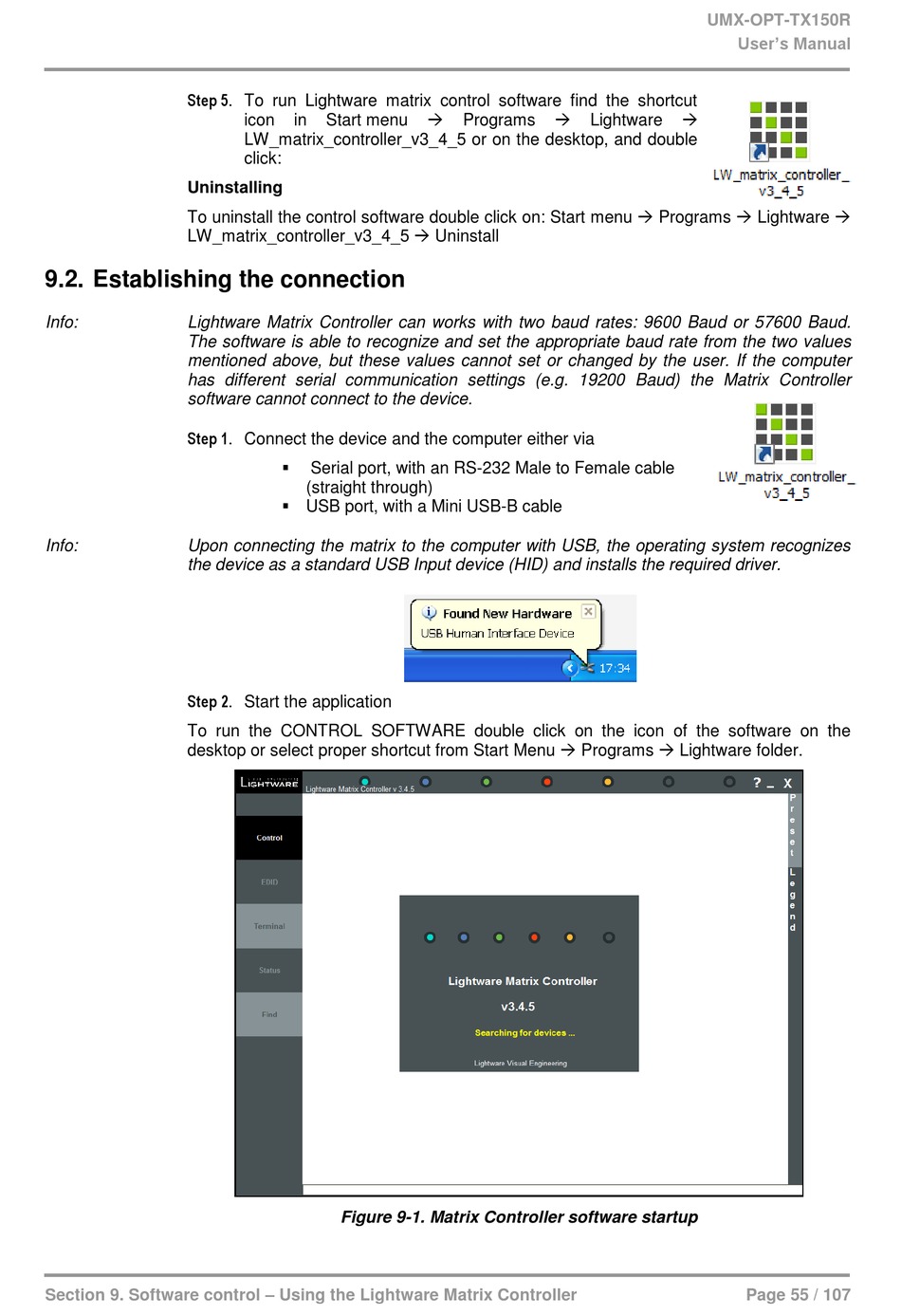

Figure 9-1. Matrix Controller software startup
 
Programs Lightware
