The DVI-D embedded audio, analog audio input 1, analog audio input 2 and S/PDIF
audio inputs can be used for DVI-D video input.

6.5. The Autoselect mode

The Autoselect function means UMX-OPT-TX150R can recognize the incoming valid
video and audio signals on all the input ports and can choose one automatically, without
user intervention. Autoselect searching starts after an event. It can be the stepping into
Autoselect mode, plugging or unplugging a video or audio cable or appearing or
disappearing a valid video or audio signal.

6.6. Video input in Autoselect mode

Info: DVI-D, VGA and HDMI video inputs are available for video autoselect. DVI-A input can be
choosen manually only.
The video Autoselect mode can work in three ways:
Section 6. Operation of UMX-OPT-TX150R
DVI-D
AUDIO 1
EMBED.
INPUT
INPUT

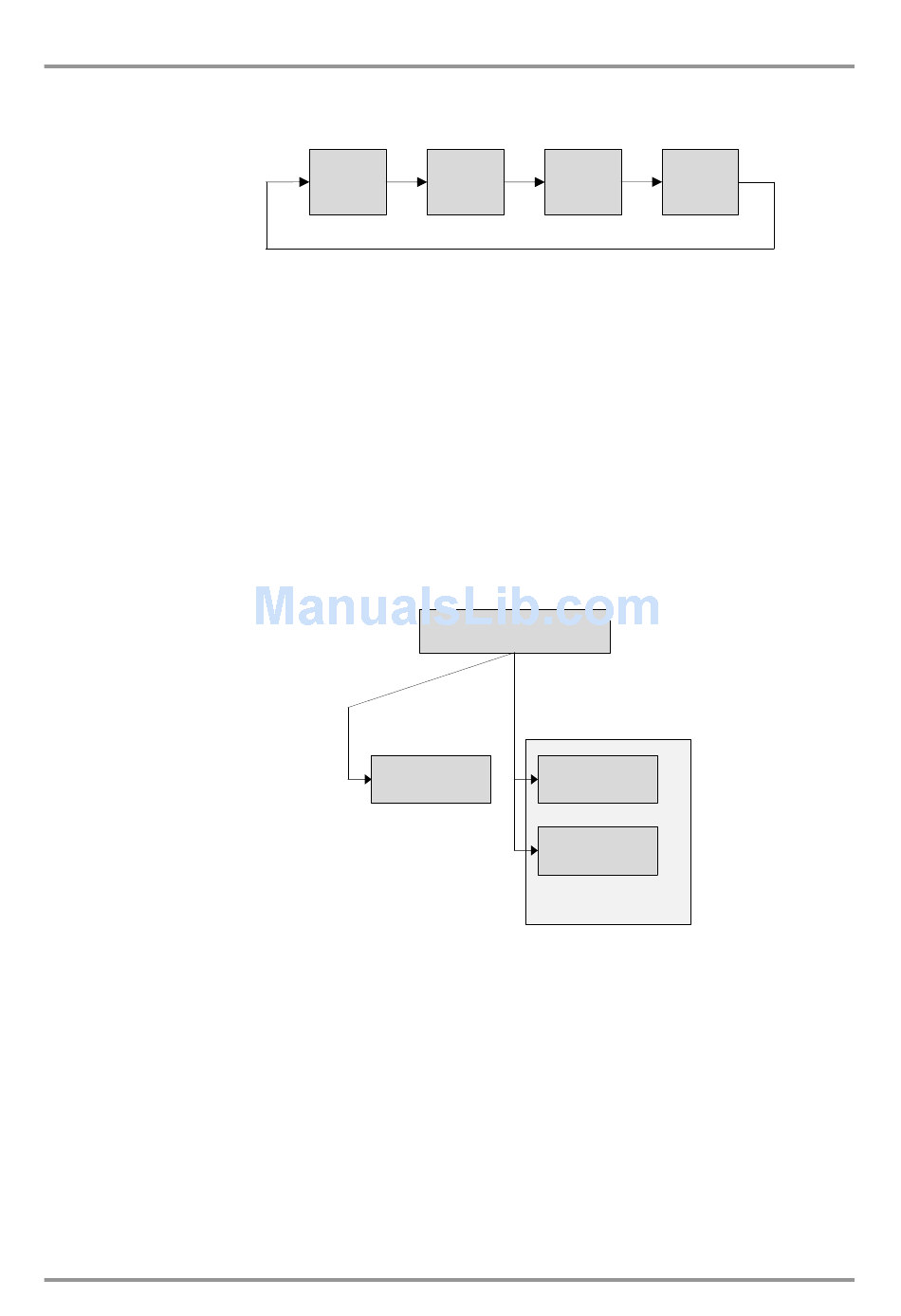

Figure 6-4. Audio input selection order for DVI-D video input
VIDEO AUTOSELECT
Non-priority
First detect
Figure 6-5. Autoselect for video inputs
AUDIO 2 S/PDIF
INPUT INPUT
Priority detect
DVI-D
Priority detect
HDMI
Priority – Digital priority
