Lightware WP-UMX-TPS-TX-120-US Quick Start Manual

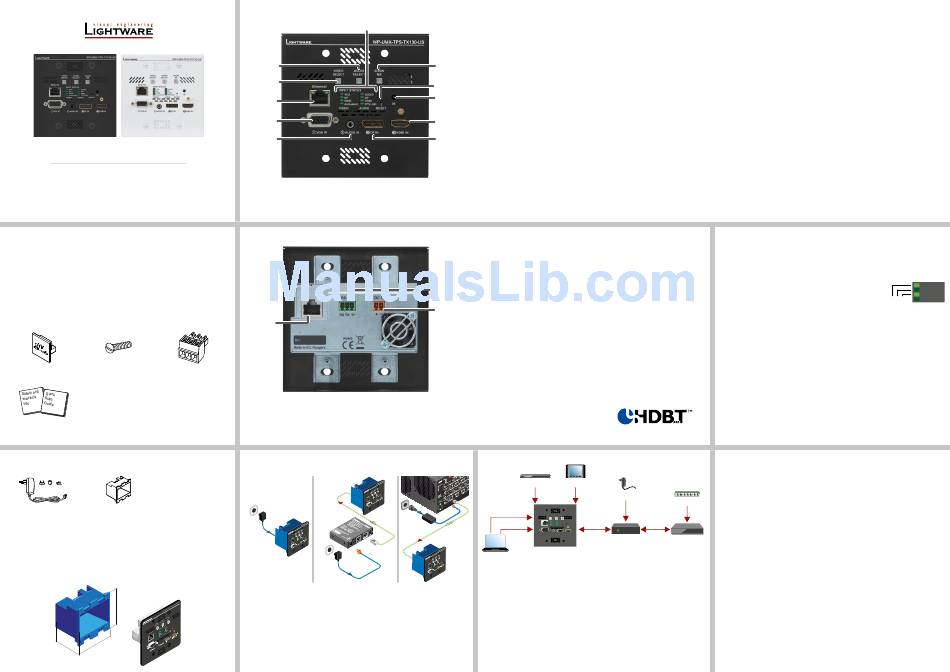

Quick Start Guide
WP-UMX-TPS-TX-120-US Black, White
WP-UMX-TPS-TX130-US Black, White
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
Lightware's WP-UMX-TPS wall plates transmit universal video at a resolution up to 4K, audio
and control up to 170 m distance over a single CATx cable. The products have HDBaseT
integration with additional Lightware developments. This transmitter was designed for digital
and analog video and audio signals e.g. DVI, VGA, YPrPb, HDMI1.4 and DP 1.1 with analog
stereo audio from local inputs or embedded 7.1 HBR audio and to handle HDCP encryption.
Box Contents
Transmitter unit Fixing screws for mounting Phoenix Combicon
(4 pcs. 6-32 x 1", oval head) 3-pole connector
Safety and Warranty Info,
Quick Start Guide
Optional Accessories
The following accessories can be purchased separately:
48V DC power adaptor with Switch/outlet box
interchangeable plugs (B225R) for mounting
Compatible devices
The transmitters are compatible with all Lightware TPS receivers, matrix boards and third-
party devices based on HDBase-T technology.
TM
Mounting options
The transmitter can be easily mounted into an industrial standard switch/outlet box (B225R):
109.2
100.6
70.6
Front View
1
w
q
9
8
7
Rear View
TM
1
 Please note that the 48V power adaptor is an optional accessory which can be purchased
separately.
Power Supply Options
The transmitter can be powered by any of the following ways:
Power
send
CATx
TPS-PI-1P1
(TPS)
External
power supply
48V DC
Power
adaptor
48V DC
Power
adaptor
1. Local adaptor 2. Remote power injector
 TPS-TX/RX90 and TPS-TX/RX95 are not PoE-compatible, thus not able to remote power
the WP-UMX-TPS-TX100 series and vica versa. WP-UMX-TPS-TX100 series contains PoE-
compatible remote power function, RX95 and TX95 extenders can be remote powered only
by each other.
 Warranty void if damage occurs due to the usage of a different power source.
Front View Legend
1
Status LEDs The LEDs give feedback about the state of the unit, the
video and audio signals. See the attached list for details.
2
Show me Button Special functions are available with this button (e.g. enable
DHCP or restore factory default settings).
2
3
Reset Button The same as disconnecting the device from the power
source and reconnecting it again.
3
4
IR Detector IR Detector can sense IR light which can be forwarded to
4
the receiver side or use for controlling functions.
5
HDMI Input Input for a digital video source. Applied cable shall not be
more, than 30 m (at 1080p) and 15 m (at 4K).
5
6
DisplayPort Input Input for digital video source (only on TX130 models). Applied
cable shall not be more, than 30 m (at 2.7 Gbps data speed).
6
7
Audio Input 3.5 mm Jack connector for unbalanced analog audio signal.
8
VGA Input Input for an analog video source. Using a VGA cable where
all the pins are wired (DDC channel) is highly recommended.
9
Ethernet Locking RJ45 connector for Ethernet communication.
q
Video Select Manual switching between the video inputs.
w
Audio Select Manual switching between the audio inputs.
Rear View Legend
1
TPS Output Port Locking RJ45 connector. Connect a twisted pair cable
between the transmitter and the receiver. Remote powering
also happens through this connector.
2
RS-232 Port 3-pole Phoenix connector for RS-232 serial port.
2
3
DC Input Power the device remotely by a PoE-compatible power
injector (TPS-PI-1P1). If the device has to be powered by
3
a local adaptor (PSU-48VP1), connect the output to the
2-pole Phoenix
The product is compatible with any HDBaseT TM
third party devices.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM
Connecting Steps (when using a Remote Power Injector)
Blu-ray Player Touch Panel
HDMI 3 RS-232 5
VGA 3
1
CATx cable
CATx 4
CATx
(TPS)
Power send
WP-UMX-TPS
Laptop
Transmitter
Connect the TPS output port to the "TPS+PoE" output port of the TPS-PI-1P1 by a
1
CATx cable.
3. Matrix board
2 Connect the receiver (or the Matrix input board) to the power injector by a CATx cable
via the TPS port.
3 Connect the desired source(s) to the input port(s) of the transmitter.
4 Optionally connect the transmitter to a Local Area Network (LAN) in order to control
the device. Connect the controller device as well, e.g. a computer.
5 Optionally connect a serial device to the transmitter's RS-232 port.
Power on the devices.
6
Front Panel LEDs
Video sources
ƒ OFF: video source is not selected.
ƒ BLINKING: video source is selected but not active.
ƒ ON: video source is selected and active.
Audio sources
ƒ OFF: audio source is not selected.
ƒ BLINKING: audio source is selected but not active.
ƒ ON (with short pause): audio source is selected and the port is active but not embedded
to the output video stream.
ƒ ON: audio source is selected, the port is active and the audio is embedded in the video.
 When Autoselect is enabled and video signal is not present at all, video LEDs blink.
Autoselect LED
ƒ OFF: autoselect is disabled.
ƒ BLINKING: autoselect is enabled; searching for signal (video LEDs also blink).
ƒ ON: autoselect is enabled; active video signal is found.
 A port is active if there is a valid signal on it.
TPS LINK
ƒ OFF: no TPS link between transmitter and receiver.
ƒ BLINKING (slow): low power mode is active.
ƒ BLINKING (fast): Ethernet fallback mode is active.
ƒ ON: TPS link is established, HDBaseT or Long Reach mode is active.
Powering On
After the transmitter is powered on, the LEDs show the version of the currently valid firmware
(TX130 with firmware 1.0.3):
1. Autoselect LED blinks twice.
2. All the LEDs are lit for a second.
3. VGA, DP and HDMI video LEDS are off for 1 sec.
4. VGA LED blinks once - this is the first number (1).
5. DP LED stays dark - showing the second number (0).
6. HDMI LED blinks three times - showing the third number (3).
® connector on the rear of the wall plate. 7. Front panel LEDs are off for a second.
8. Last state of the device is restored and displayed on the LEDs.
The document is valid with the following firmware version: 1.1.1
The User's manual of this appliance is available on www.lightware.eu.
See the
Power Adaptor
Ethernet
6
2 CATx
2
CATx cable
TPS-PI-1P1 Compatible
PoE-compatible Receiver or
TPS Power Injector Output Board
Lightware Visual Engineering LLC.
VGA
DP
HDMI
1.0.3
Autoselect
Further Information
Downloads section on the website of the product.
Contact Us
sales@lightware.eu
+36 1 255 3800
support@lightware.eu
+36 1 255 3810
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.1
19200045
