Lightware HDMI-TP-TX100R Quick Start Manual

Introduction
The HDMI-TP-TX100R is a HDMI 1.3a compatible Twisted Pair transmitter. It includes EDID
management function, which is configurable on the front panel.

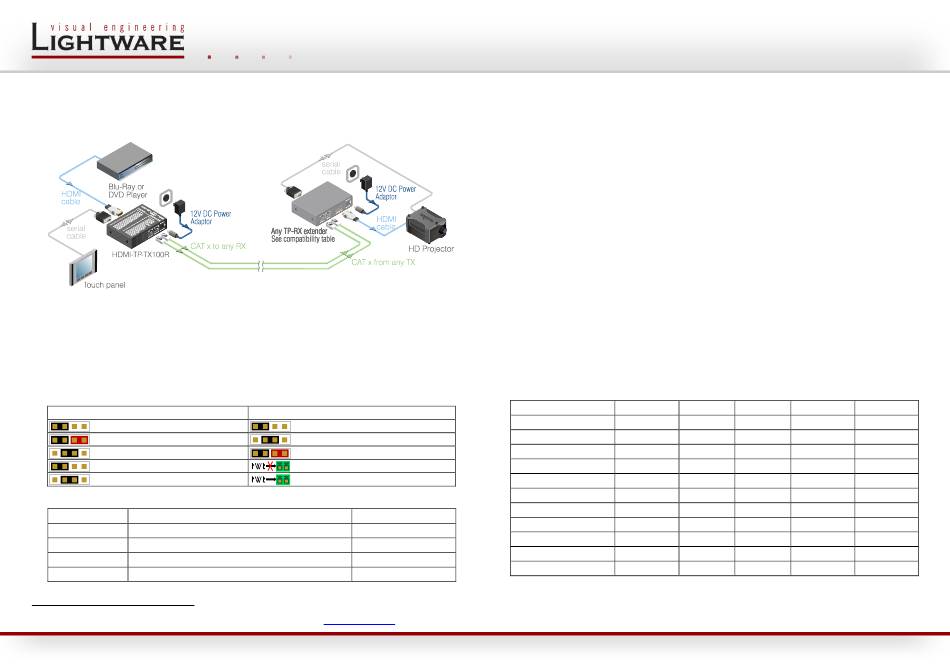

Typical application
HDMI-TP-TX100R and RX extender pair
Installation
1. Connect the source to the HDMI INPUT connector,
2. Connect the receiver or a compatible Lightware device
a. VIDEO OUT with a Twisted Pair cable
b. DDC OUT with another Twisted Pair cable
3. Supply the unit with +12V 1A DC. The available power supply settings:
TX jumper configuration
only local adaptor
local adaptor + remote send to RX
only remote receive from RX
only local adaptor
only remote receive from Input Board
Status LEDs
Function:
EDID Status N Selected EDID is invalid
EDID Status Y Selected EDID is valid
HPD Hotplug detected
SRC +5V Source connected: +5V present on input
1
Please check the TP Extension System Cross Compatibility Table in the
www.lightware.eu
For technical support contact support@lightware.eu
1
to the
RX jumper or Matrix Input Board configuration
only local adaptor
only remote receive from TX
local adaptor + remote send to TX
12V DC IN not connected to Input Board
12V DC IN connected to Input Board
Blinking function:
EDID learn failure
EDID learn success
—
—
www.lightware.eu website
Selecting an EDID
1. Turn the EDID ADDRESS rotary switches to the desired position.
The available factory preset EDIDs are listed on the top of the device.
2. The EDID Status LEDs provide feedback:
Red: an empty memory or invalid EDID is selected.
Green: valid EDID is present at input.
3. Now the selected EDID is reported at the HDMI INPUT.
EDID Memory
The factory preset EDIDs are listed on the top of the device (#01..#49). Address #00
contains a copy of the last attached and recognized monitors' EDID, and memory range
#51..#99 is user programmable. The #30..#45 memories and #49 (universal EDID) contain
EDIDs supporting various embedded audio formats, for HDMI audio.
Learning EDID
1. Turn the EDID ADDRESS rotary switches to the desired memory location where you want to
store the attached display's EDID (between user addresses #51..#99),
2. Connect the desired display device to the HDMI OUTPUT,
3. Press and hold the LEARN button for approximately 3 seconds,
4. The EDID STATUS LEDs provide feedback:
Red: the learn process failed from the output.
Green: the learn process was successful from the output.
Maximum cable length
Resolution TMDS Freq CAT5e UTP CAT6 UTP CAT6 S/FTP CAT7 S/FTP
640 x 480 25,2 MHz
800 x 600 40,0 MHz
1024 x 768 65,0 MHz
1280 x 720p 74,4 MHz
1920 x 1080i 74,4 MHz
1280 x 1024 108,2 MHz
1920 x1080p 149,1 MHz
1920 x 1200 153,4 MHz
1600 x 1200 162,4 MHz
1920 x 1080p 30 bit 186,3 MHz
1920 x 1080p 36 bit 223,6 MHz
NR: Not Recommended
Info: The unit shows its 3 digit firmware version after powering on with red and green blinks
(FW 1.3.8 is: 1x red, 3x green, 8x green)
HDMI-TP-TX100R
Quick Start Guide
65 m 75 m 80 m 80 m
65 m 70 m 75 m 75 m
60 m 65 m 75 m 75 m
60 m 65 m 75 m 75 m
60 m 65 m 75 m 75 m
50 m 65 m 70 m 70 m
30 m 55 m 65 m 65 m
20 m 50 m 65 m 65 m
NR 45 m 65 m 65 m
NR NR 40 m 60 m
NR NR 10 m 20 m
Firmware version: 1.3.8
Document revision: 1.0
