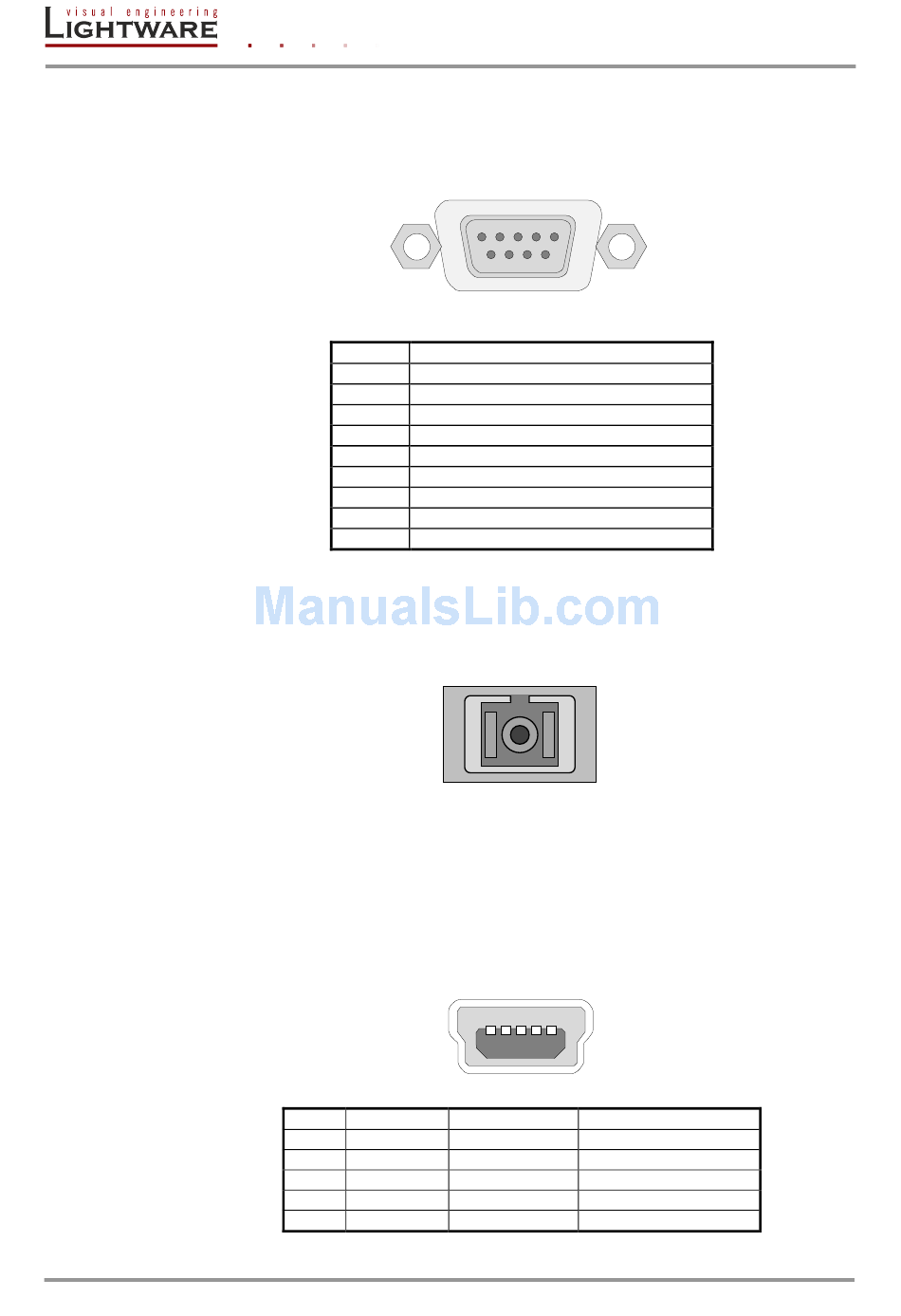

4.5. RS-232 port

UMX-OPT-TX150R has RS-232 pass-through function or can be remote controlled
through industry standard 9 pole D-SUB female connector. The extender uses RS-232

port.

4.6.

Fiber optical output

UMX-OPT-TX150R has SC fiber connector. Always use high quality fiber cable for
connecting transmitters and receivers.
Info: Fiber optic cables can be easily damaged if they are improperly handled or installed.
Handle the optical cables with care to avoid damage and/or limiting their usefulness.
Warning! Avoid exposure to beam! Direct intrabeam viewing normally hazardous.
4.7.

USB connector

UMX-OPT-TX150R has standard Mini USB Type B receptacle.
Page 20 / 107
D-SUB 9 pole female connector (DE9F)
Pin nr.
1 NC - non connected
2 TX data transmit (output)
3 RX data receive (input)
4 DTR
5 GND signal ground (shield)
6
DSR
7 RTS
8 CTS
9 NC - non connected
Table 4-5. D-sub connector pin assignment for standard RS-232
Pin Name
1 VBUS
2
D -
3 D +
4 ID
5 GND
Table 4-6. Mini USB B connector pin assignments
5 1
9 6
RS-232
(Internally connected to Pin 6)
(Internally connected to Pin 4)
(Internally connected to Pin 8)
(Internally connected to Pin 7)
SC fiber receptacle
1 5
Mini USB B connector
Cable color Signal description
Red
White
Green
None
Black
Section 4. Electrical connections
+5V
Data -
Data +
Not connected
Signal ground
