xStack® DES-3200 Series Layer 2 Ethernet Managed Switch WEB UI Reference Guide
Errors
The Web Manager allows port error statistics compiled by the Switch's management agent to be viewed as either a
line graph or a table. Four windows are offered.
Received (RX)
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use
the real-time graphic of the Switch at the top of the Web page by simply clicking on a port.
To view the following graph of error packets received on the Switch, click Monitoring > Errors > Received (RX):

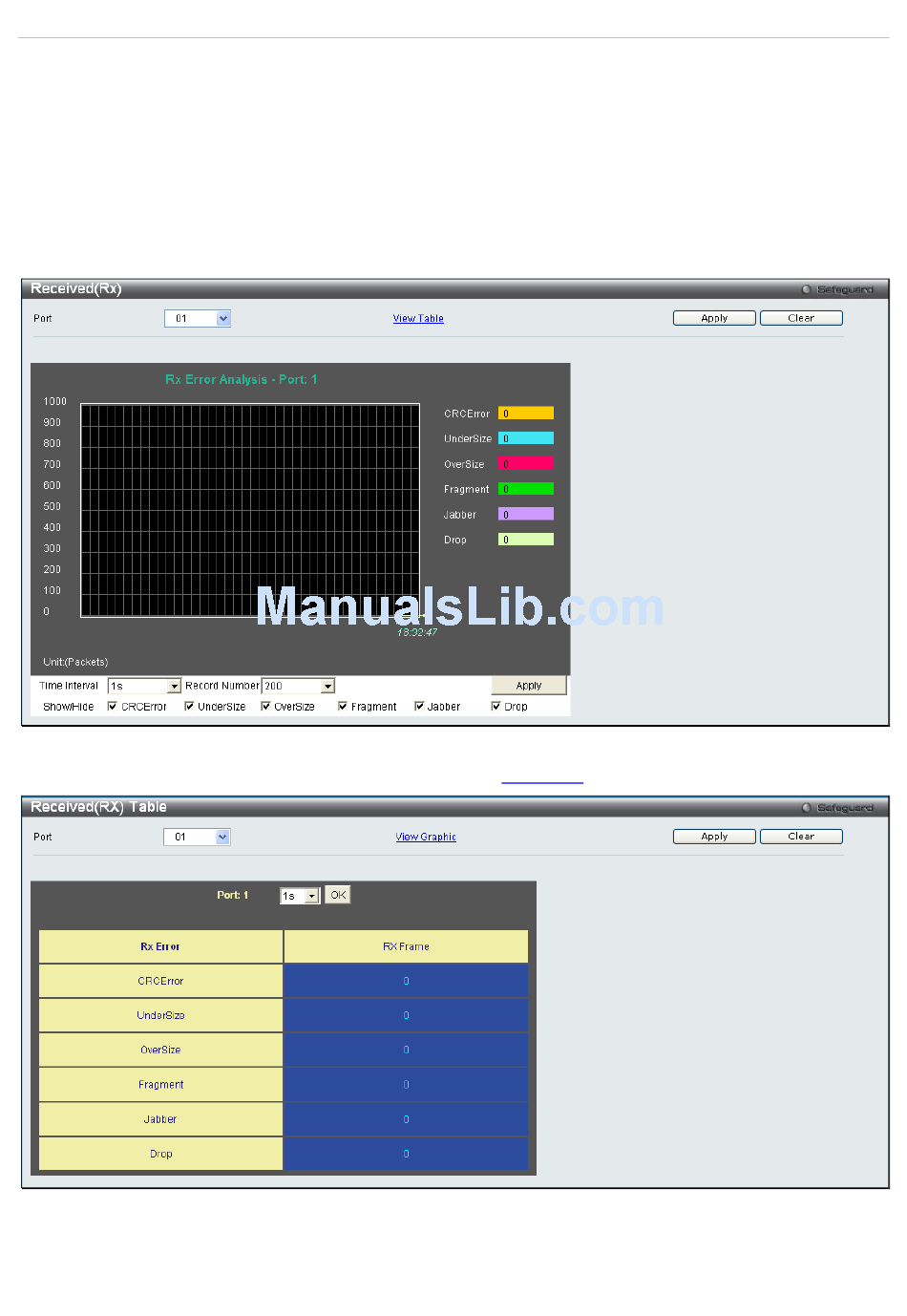

Figure 7 - 13. Received (Rx) window (for errors)
To view the Received (Rx) Table window for errors, click the link
View
Table, which will show the following table:
Figure 7 - 14. Received (Rx) Table window (for errors)
219
