xStack® DES-3200 Series Layer 2 Ethernet Managed Switch WEB UI Reference Guide
To add a multicast VLAN to a profile that has been created, click the corresponding hyperlinked
the following window:

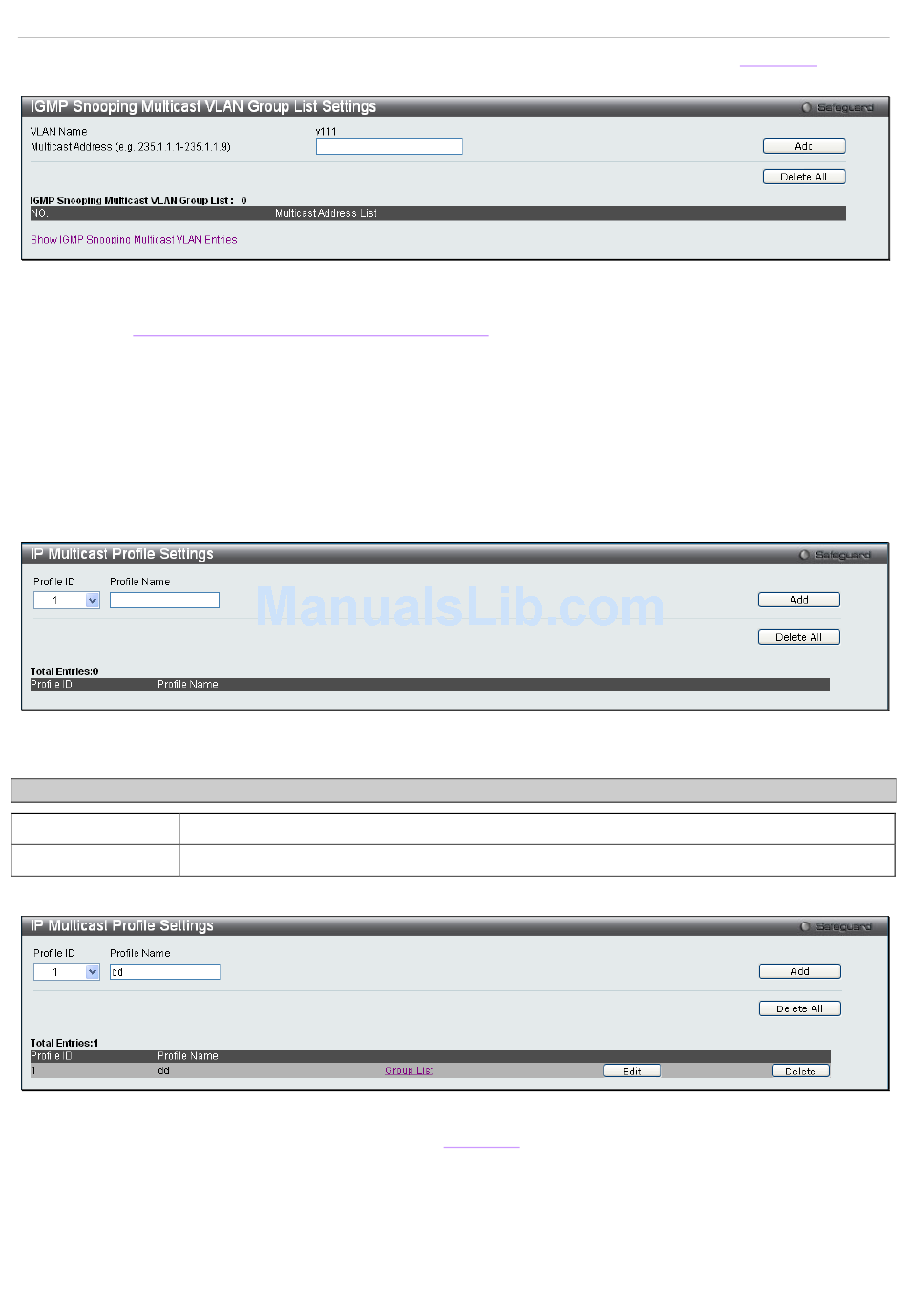

Figure 3 - 31. IGMP Snooping Multicast VLAN Group List Settings window
Enter a Multicast Address and click Add. The new information will be displayed in the table at the bottom of the
window. Click Show IGMP Snooping Multicast VLAN Entries
Settings window. Click Delete All to remove all the entries on this window.

IP Multicast Profile Settings

This window allows the user to add a profile to which multicast IP address reports are to be received on specified
ports on the Switch. This function will therefore limit the number of reports received and the number of multicast
groups configured on the Switch. The user may set an IP Multicast address or range of IP Multicast addresses to
accept reports (Permit) or deny reports (Deny) coming into the specified switch ports.
To view this window, click L2 Features > IGMP Snooping > IP Multicast Profile Settings:
The following fields can be set
Parameter Description
Profile ID Use the drop-down menu to choose a Profile ID.
Profile Name Enter a name for the IP Multicast Profile.
To edit and entry click the corresponding Edit button and to delete an entry click the corresponding Delete button.
To configure the Group List Settings click the hyperlinked
Figure 3 - 32. IP Multicast Profile Settings window
Figure 3 - 33. IP Multicast Profile Settings (Edit) window
to return to the IGMP Snooping Multicast VLAN
Group List. The following window will appear:
88
Group List to reveal
