How to Install, Connect, or Replace the NM-1VSAT-GILAT Network Module
Align the replacement network module with the guides in the chassis walls or slot divider and slide it
Step 8
gently into the slot. (See
Figure 33-9
ETHE RNET 0
Using the network module handle, push the NM-1VSAT-GILAT network module into place until you
Step 9
feel the edge connector seat securely into the connector on the router backplane. The network module
faceplate should contact the chassis rear panel.
Using a number 1 Phillips or flat-blade screwdriver, tighten the captive mounting screws on the network
Step 10
module faceplate.
Caution Make sure that the external power supply is disconnected from the NM-1VSAT-GILAT network module
before connecting or disconnecting cables from the RF-IN or RF-OUT connectors. If the external power
supply is connected to the ODU PWR connector while you connect or disconnect cables from the RF-IN
or RF-OUT connectors, you might short-circuit the NM-1VSAT-GILAT network module F connectors.
This may cause the network module to reset itself or lose data.
Connect the RF cables to the RF-IN and RF-OUT connectors on the NM-1VSAT-GILAT network
Step 11
module.
Connect the power supply cable to the ODU PWR connector on the NM-1VSAT-GILAT network
Step 12
module.
Confirm that the network module LEDs come on. For more information about the LEDs, see the
Step 13
"NM-1VSAT-GILAT Network Module LEDs" section on page
Initiate a console session with your router.
Step 14
Enter satellite interface configuration mode, and enable the satellite interface:
Step 15
Router> enable
Router# configure terminal
Router(config)# interface satellite slot /0
Router(config-if)# no shutdown
Router(config-if)# end
Router#
Cisco Network Modules Hardware Installation Guide
33-16

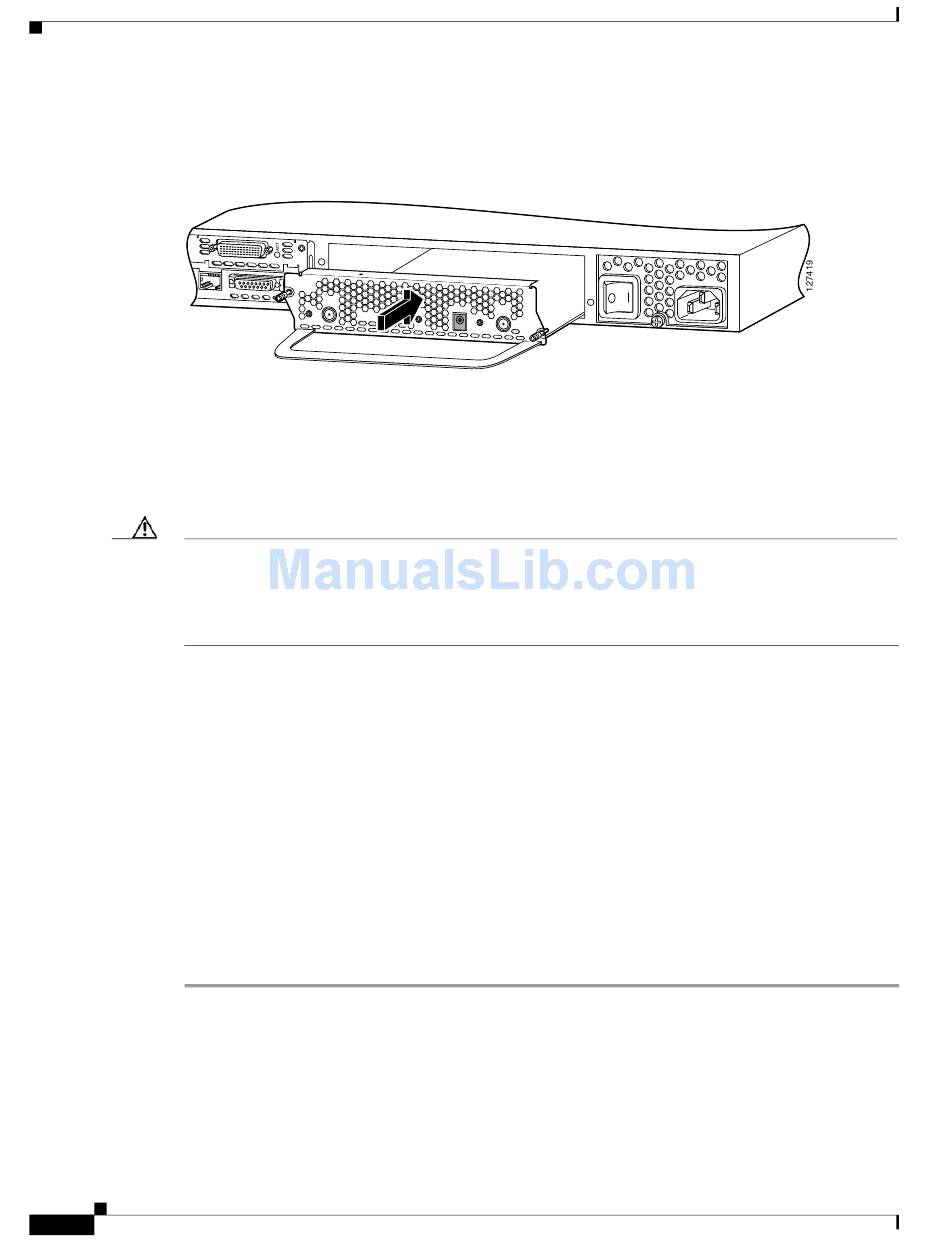

Figure 33-9.)
