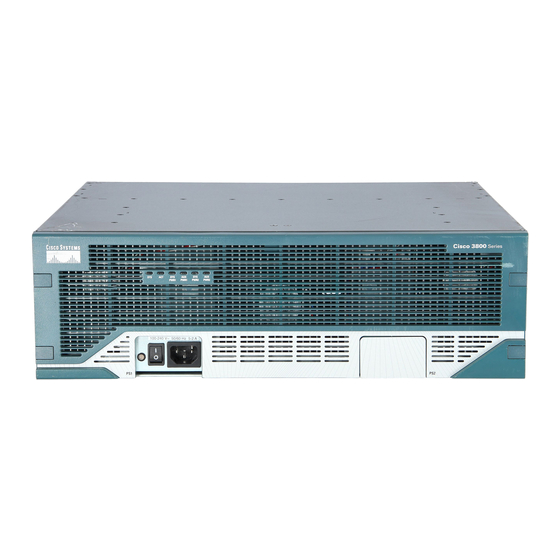

Cisco 3845 - Security Bundle Router Quick Start Manual

3800 series security bundle router
Hide thumbs Also See for 3845 - Security Bundle Router:

Advertisement

Cisco 3800 Series Integrated Services Routers Quick Start Guide
INCLUDING LICENSE AND WARRANTY
1
2
Overview, Page 3
3
4
5
6
7
8
9
10
11
12
13
Quick Start Guide

Advertisement

Table of Contents
loading

Summary of Contents for Cisco 3845 - Security Bundle Router

  • Page 1: Table Of Contents

    Quick Start Guide Cisco 3800 Series Integrated Services Routers Quick Start Guide INCLUDING LICENSE AND WARRANTY Cisco One-Year Limited Warranty Terms, Page 2 Overview, Page 3 Documents, Equipment, and Tools, Page 4 Install Chassis, Page 5 Connect Cables, Page 16...
  • Page 2: Cisco One-Year Limited Warranty Terms

    • Regulatory compliance and safety information Product Serial Number Location The serial number label for Cisco 3825 and Cisco 3845 routers is located on the rear of the chassis, on the right side, as shown in Figure 1 and Figure 2.
  • Page 3 100 0 11x 3x Ba se- Tx SN: XXXNNNNXXXX For detailed product serial number location on the chassis, see the online Cisco 3800 series hardware installation documentation at the following URL: http://cisco.com/en/US/products/ps5855/prod_installation_guides_list.html Cisco Product Identification Tool The Cisco Product Identification tool provides detailed illustrations and descriptions showing where to locate serial number labels on Cisco products.
  • Page 4: Documents, Equipment, And Tools

    Step 1 All the documents referenced in this quick start guide are available on Cisco.com. See the “Where to Go Next” section on page 34. To view or print an online document in its original page format, click the PDF icon.
  • Page 5: Install Chassis

    Safety Information For safety information you must know before working on your Cisco router, see the Cisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information document that accompanied this device. This document contains translations of the warnings that appear in this quick start guide.
  • Page 6 Attention IMPORTANTES INFORMATIONS DE SÉCURITÉ Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents.
  • Page 7 Varning! VIKTIGA SÄKERHETSANVISNINGAR Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Se översättningarna av de varningsmeddelanden som finns i denna publikation, och se de översatta säkerhetsvarningarna som medföljer denna anordning.
  • Page 8 Aviso INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.
  • Page 9 Warning Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord. Statement 1...
  • Page 10: Installing The Router

    Installing the Router You can install any Cisco 3800 series router in a rack. See the applicable instructions in the following sections. Cisco 3800 series routers are normally ordered with modules and interface cards. Before you remove or install any...
  • Page 11 Rack-Mounting the Router Cisco 3800 series routers can be installed in 19-inch (48.26-cm) racks. Use the standard brackets for mounting the chassis in a 19-inch (48.26-cm) rack. If you choose to install your Cisco router in a 23-inch (58.42-cm) rack, you must acquire a 23-inch (58.42-cm) rack Note adapter from the rack manufacturer.
  • Page 12 Do not overtorque the screws. The recommended torque is 10–12 inch-lb (1.1–1.4 N-m) for the Cisco 3825 router Caution and 15–18 inch-lb (1.7–2.0 N-m) for the Cisco 3845 router. Your chassis installation must allow unrestricted airflow for chassis cooling. Caution...
  • Page 13 Figure 7 Bracket Installation for Center Mounting with Front Panel Forward Left bracket for 23-inch rack Left bracket for 19-inch rack Right bracket for 19-inch rack Right bracket Use six screws on each side. for 23-inch rack Figure 8 Bracket Installation for Center Mounting with Rear Panel Forward NM - ES W- Fas tEth...
  • Page 14: Grounding The Chassis

    You can attach the cable management bracket to either the upper or the lower threaded hole. See Figure 9 for attachment locations. Figure 9 Attaching the Cable Management Bracket to the Cisco 3825 Router NM D- ES W -...
  • Page 15: Connect Cables

    (0.9 to 1.1 N-m). Step 4 Connect the other end of the ground wire to a suitable grounding point at your site. Figure 10 NEBS-Compliant Chassis Ground Connection on Cisco 3825 Chassis NM D- ES W - GE 1...
  • Page 16: Power Connections

    Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables. Statement 1021 Warning Hazardous network voltages are present in WAN ports regardless of whether power to the router is OFF or ON.
  • Page 17: Connecting The Router To Dc Power

    This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 60 VDC, 30 A. Statement 1005 60 VDC, 20 A applies to DC power in Cisco 3825 routers and 60 VDC, 30 A applies to DC power in Cisco 3845 Note routers.
  • Page 18 A Cisco 3800 series router with a DC-input power supply requires copper wire for the power connections. Table 1 and Table 2 summarize the DC wiring requirements. If you connect dual DC power sources to a Cisco 3825 router, both sources must be the same polarity and voltage.
  • Page 19 DC-input power source wire extends from the terminal block plug. Statement 122 Do not overtorque the terminal block screws. The recommended torque is 10.0 ± 0.5 in-lb (1.1 ± 0.05 N-m). Caution Figure 12 DC Power Connections for Cisco 3825 Routers (Typical) -DC, input A Return, input A Return, input A...
  • Page 20 A input and one source to the B input. Both sources must be the same polarity (with respect to ground) and voltage (within 0.25 volts). Do not connect –DC grounded and +DC grounded dual sources to a Cisco 3825 series integrated router.
  • Page 21 Figure 16 Connecting to One Source Only—Source A or Source B In Figure 17, source A and source B share common negative terminal connections. Figure 17 Connecting Source A and Source B with Common Negative Terminals In Figure 18, source A and source B share common positive terminal connections. This is allowed only if Va equals Vb (within 0.25 V).
  • Page 22 Connecting the Router to Backup Power The Cisco 3845 router operates in redundant mode when two power supplies are installed. The Cisco 3825 router has one internal power supply and a connector for mating to an external backup power source.
  • Page 23 PVD M2 PVD M3 WAN, LAN, and Voice Connections The connections and cables listed in Table 3 are described in detail in the Cisco 3800 series hardware installation documents at the following URL: http://cisco.com/en/US/products/ps5855/prod_installation_guides_list.html An Ethernet cable is typically provided with the router. Additional cables and transceivers can be ordered from Cisco. For Note ordering information, contact customer service.
  • Page 24 GR-1089-CORE, Issue 4) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. Table 3 summarizes some typical WAN, LAN, and voice connections for the Cisco 3800 series routers. Table 3...
  • Page 25: Power Up The Router

    Caution Checklist for Power Up You are ready to power up the Cisco 3800 series router after the following steps are completed: • Chassis is securely mounted and grounded. (See the “Install Chassis” section on page 5.) • Power and interface cables are connected. (See the “Connect Cables” section on page 15.) •...
  • Page 26 Make sure that your PC is powered up and connected as described in the “Checklist for Power Up” section on page 25. Step 1 Move the power switch to the ON position on the router. The SYS LED blinks green on both the Cisco 3825 and Cisco Step 2 3845 routers.
  • Page 27 Table 5 Cisco 3800 Series LED Indicators (continued) Cisco Cisco 3825 3845 Router Router Color and State Meaning SYS PWR2 — Front Power system 2 not present Steady green Present and enabled Amber Present and malfunctioning AUX PWR Front —...
  • Page 28 Table 5 Cisco 3800 Series LED Indicators (continued) Cisco Cisco 3825 3845 Router Router Color and State Meaning GE0: Speed Rear Rear Blinking green Blink frequency indicates port speed GE1: Link Rear Rear No link Green Ethernet cable present, link established...
  • Page 29: Port Numbering

    1. The interfaces listed are examples only; other possible interface types are not listed. 2. Interface card slot numbers for double-width interface-card slots are 1 and 3 only. 3. Network module slot numbers are 1 and 2 for the Cisco 3825 router; 1, 2, 3, and 4 for the Cisco 3845 router.
  • Page 30: Perform Initial Configuration

    Note On the Cisco 3825 and Cisco 3845 routers, the interface numbering scheme is the same for asynchronous interfaces as other types of interfaces. To configure the line associated with an async interface, simply use the interface number to specify the async line.
  • Page 31: Initial Configuration Using The Setup Command Facility

    If the messages above do not appear, SDM and the Cisco Router and Security Device Manager (SDM) Quick Start Guide were not shipped with your router. If you want to use SDM, you can download the latest version of SDM and instructions for installing it on your router from the following location: http://www.cisco.com/pcgi-bin/tablebuild.pl/sdm...
  • Page 32: Console Port

    Community string [public]: A summary of the available interfaces appears. Note The interface numbering that appears is dependent on the type of Cisco modular router platform and on the installed interface modules and cards. Current interface summary Controller Timeslots D-Channel Configurable modes Status...
  • Page 33 If these messages do not appear, SDM and a default configuration file were installed on the router at the factory. To use SDM to configure the router, see the “Initial Configuration Using Cisco Router and Security Device Manager (SDM)” section on page 30.
  • Page 34: Where To Go Next

    • To verify that you configured the correct hostname and password, enter the show configuration command. When you complete and verify the initial configuration, your Cisco router is ready to configure for specific functions. See the “Where to Go Next” section on page 34 for information about locating documentation for advanced configuration procedures.
  • Page 35: Obtaining Documentation

    For Cisco IOS software documentation, start on Cisco.com at http://www.cisco.com, and click the Technical Documentation link under Quick Links. Under the Product Documentation heading, navigate to the Cisco IOS software documentation for the Cisco IOS software release that is installed on your router.
  • Page 36: Obtaining Technical Assistance

    For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
  • Page 37: Obtaining Additional Publications And Information

    Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan • Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam • Zimbabwe Copyright © 2004 Cisco Systems, Inc. All rights reserved. CCSP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.;...
