Connecting Cisco Analog Video Gateway
Network Modules
This document provides hardware information about the EVM-IPVS-16A network module, which
enables Cisco integrated services routers to capture analog video signals. The EVM-IPVS-16A network
module supports up to 16 simultaneous composite video inputs, such as video surveillance cameras. The
EVM-IPVS-16A network module also provides alarm input detection, control relay outputs, and RS-485
serial communication interfaces.
Figure 39-1
EVM
IPVS-16A
Tip To determine whether your Cisco router supports a specific network module, see
Contents
•
•
•
OL-2485-20
Cisco Analog Video Gateway Network Module (EVM-IPVS-16A) Faceplate
20
3210
Information About the EVM-IPVS-16A Network Module, page 39-2
How to Install, Connect, or Replace the EVM-IPVS-16A Network Module, page 39-5
Related Documents, page 39-12

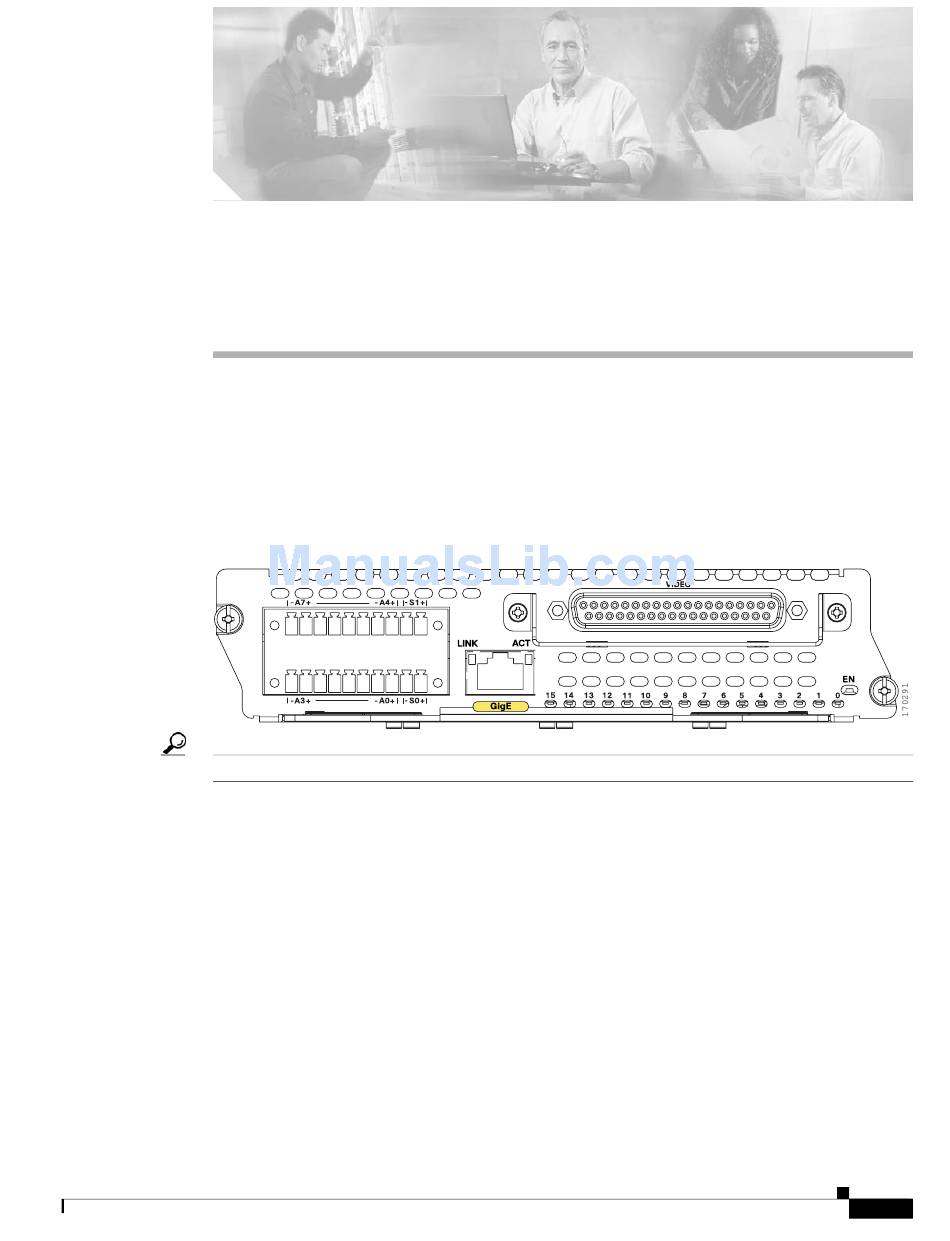

Figure 39-1 shows the EVM-IPVS-16A network module faceplate.
