Omron SYSMAC CJ - REFERENCE MANUAL 01-2008 Reference Manual page 1243

Block Programming Instructions
Description
1204
Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

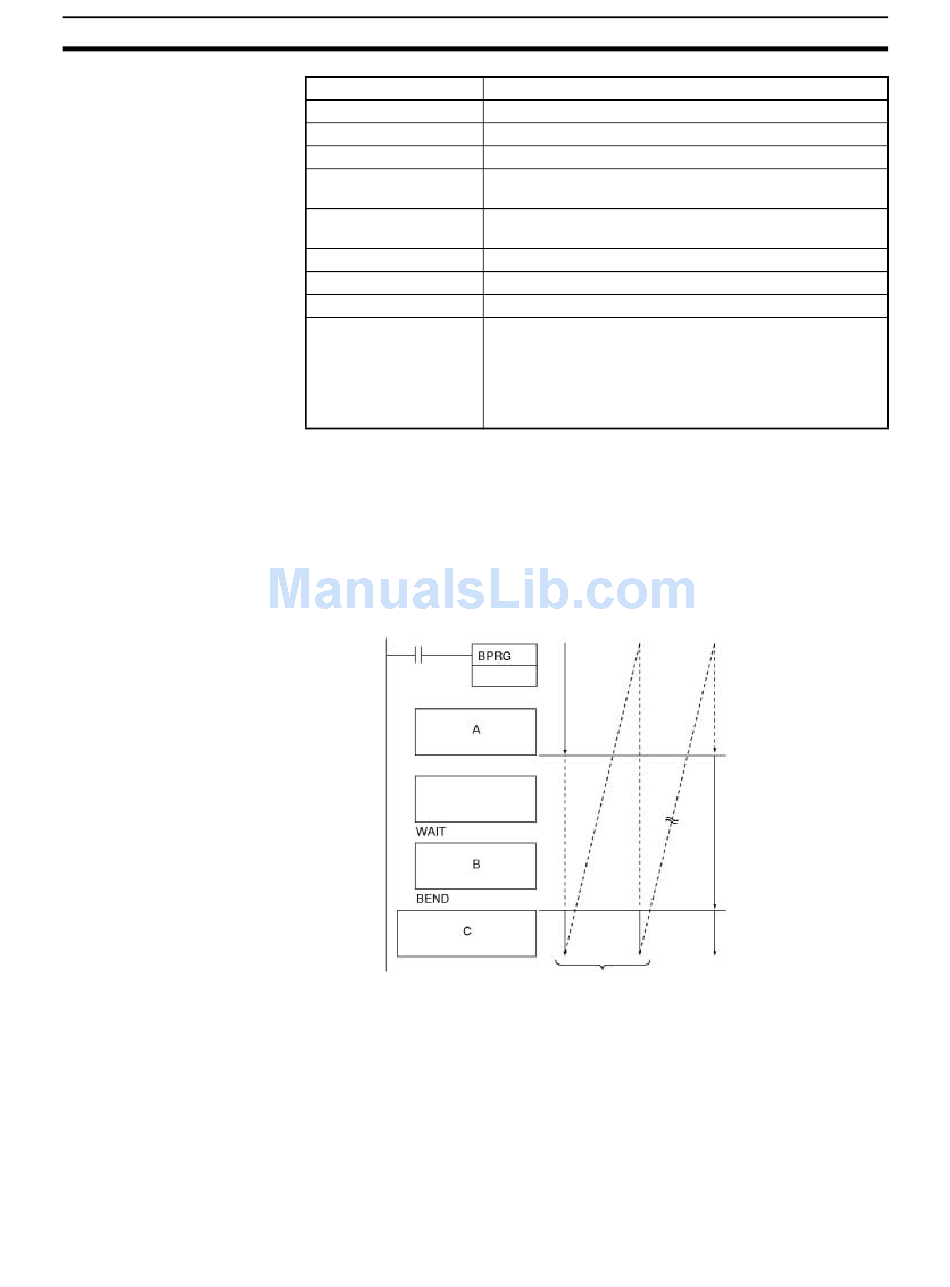

Operation without an Operand
If an operand bit is not specified, an execution must be created before
WAIT(805)/WAIT(805 NOT starting with LD. If the execution condition is ON
for WAIT(805), the rest of the instruction in the block program will be skipped.
In the next cycle, none of the block program will be executed except for the
execution condition for WAIT(805). When the execution condition goes ON,
the instruction from WAIT(805) to the end of the program will be executed.
Execution
condition
---
---
---
---
---
---
---
---
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Execution
Execution
condition
condition
OFF
OFF
"A"
executed.
"C" "C"
executed. executed.
Wait
Section 3-32
B
Execution
condition
ON
"B" executed.
"C" executed.
