Other Instructions

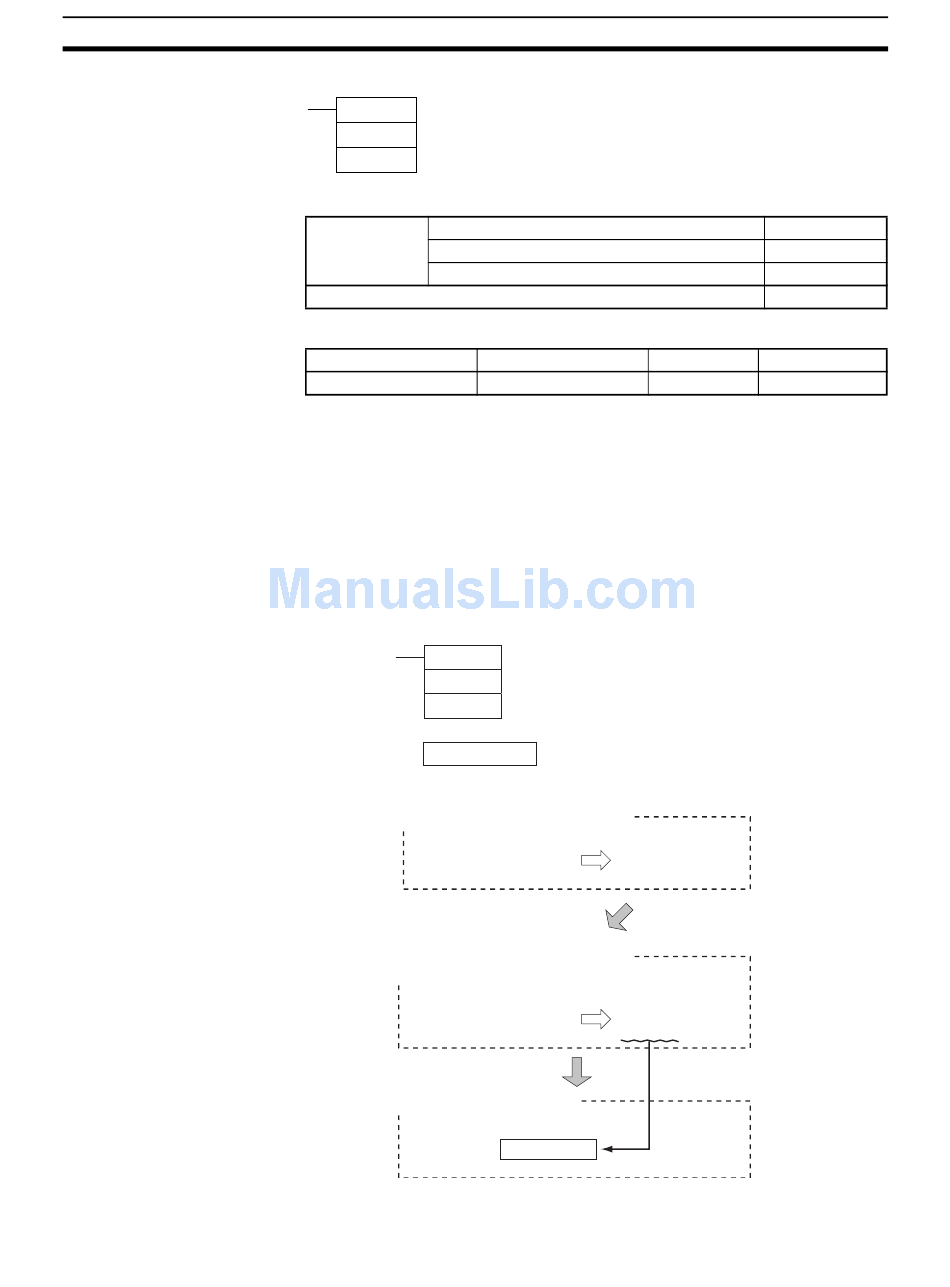

Ladder Symbol
Variations
Applicable Program Areas
Description
1176
FRMCV(284)
S: Word containing the CV-
series PLC memory address
S
D: Destination Index Register
D
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification
Block program areas
OK OK
When the execution condition is ON, FRMCV(284) executes the following
operations.
1. The CV-series PLC memory address specified in S is converted to its
equivalent CV-series data area address.
2. FRMCV(284) determines the CS/CJ-series PLC memory address that cor-
responds to the same CV-series data area address.
3. The CS/CJ-series PLC memory address is output to D. (An index register
(IR0 to IR15) must be specified for D.)
The following example shows FRMCV(284) used to convert the CV-series
PLC memory address for D00001.
FRMCV
D00000
IR1
D00000 #2001
1. The CV-series PLC memory address is
converted to its equivalent CV-series data
area address.
CV-series PLC
memory address
2001 Hex
2. The corresponding CV-series data area
address is converted to its CS/CJ-series
PLC memory address.
CS/CJ-series data
area address
D00001
3. The CS/CJ-series PLC memory
address is stored in D.
IR1
Step program areas Subroutines
OK
CV-series data
area address
D00001
CS/CJ-series
PLC memory
10001 Hex
Storage
10001 Hex
Section 3-31
FRMCV(284)
@FRMCV(284)
Not supported.
Interrupt tasks
OK
