Network Instructions
Operand Specifications
D: First Destination Word in Remote CPU Unit
Specifies the leading word address of the write destination in the remote CPU
Unit.

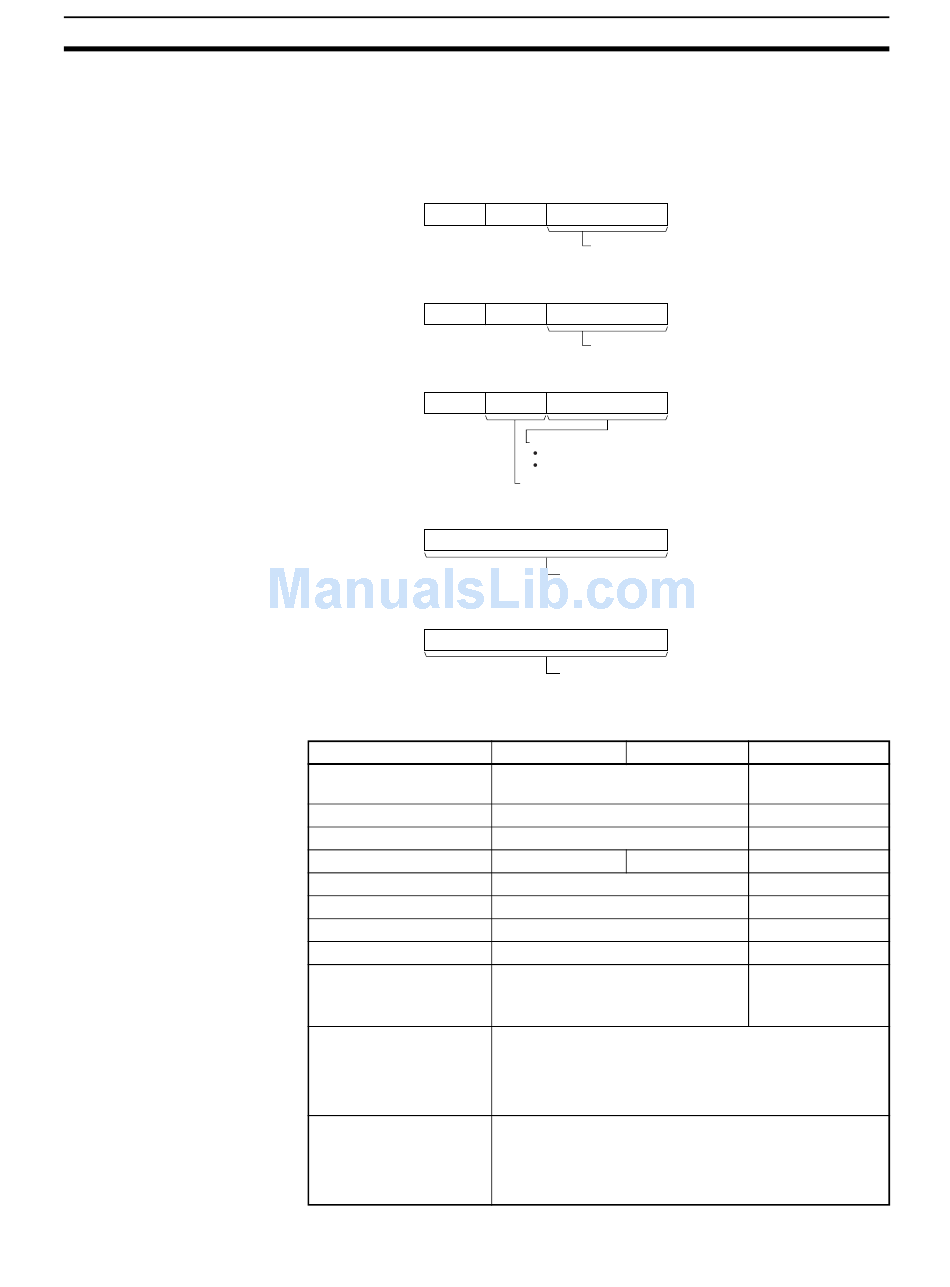

C: First Control Word
Specifies the first of five control words (C to C+4).
15 12
C 0
15 12
C+1 0
15 12
C+2 0
15
C+3
15
C+4
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
11 8 7 0
0
Source node address (remote CPU Unit)
(00 to maximum node address (hex))
Example: DeviceNet: 00 to 3F hex (0 to 63)
11 8 7 0
0
Write data size (words):
01 to 64 hex (1 to 100 words)
11 8 7 0
FINS unit address of relaying Communications Unit.
CPU Bus Unit: 10 to 1F hex (unit number + 10 hex)
Special I/O Unit: 20 to 7F hex (unit number + 20 hex)
Port number of the communications port (logical port)
for the network instruction: 0 to 7 hex
(F hex: Automatic allocation)
0
Response monitoring time
0001 to FFFF hex (0.1 to 6553.5 s)
0000 hex: 2 s (default setting)
0
Explicit message format0000 hex:
DeviceNet (same as using the 2801 FINS command)
S
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 to A959 A448 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
Section 3-25
D C
CIO 0000 to
CIO 6139
W000 to W507
H000 to H507
A000 to A955
T0000 to T4091
C0000 to C4091
D00000 to D32763
E00000 to E32763
En_00000 to
En_32763
(n = 0 to C)
