Run/Stop Command

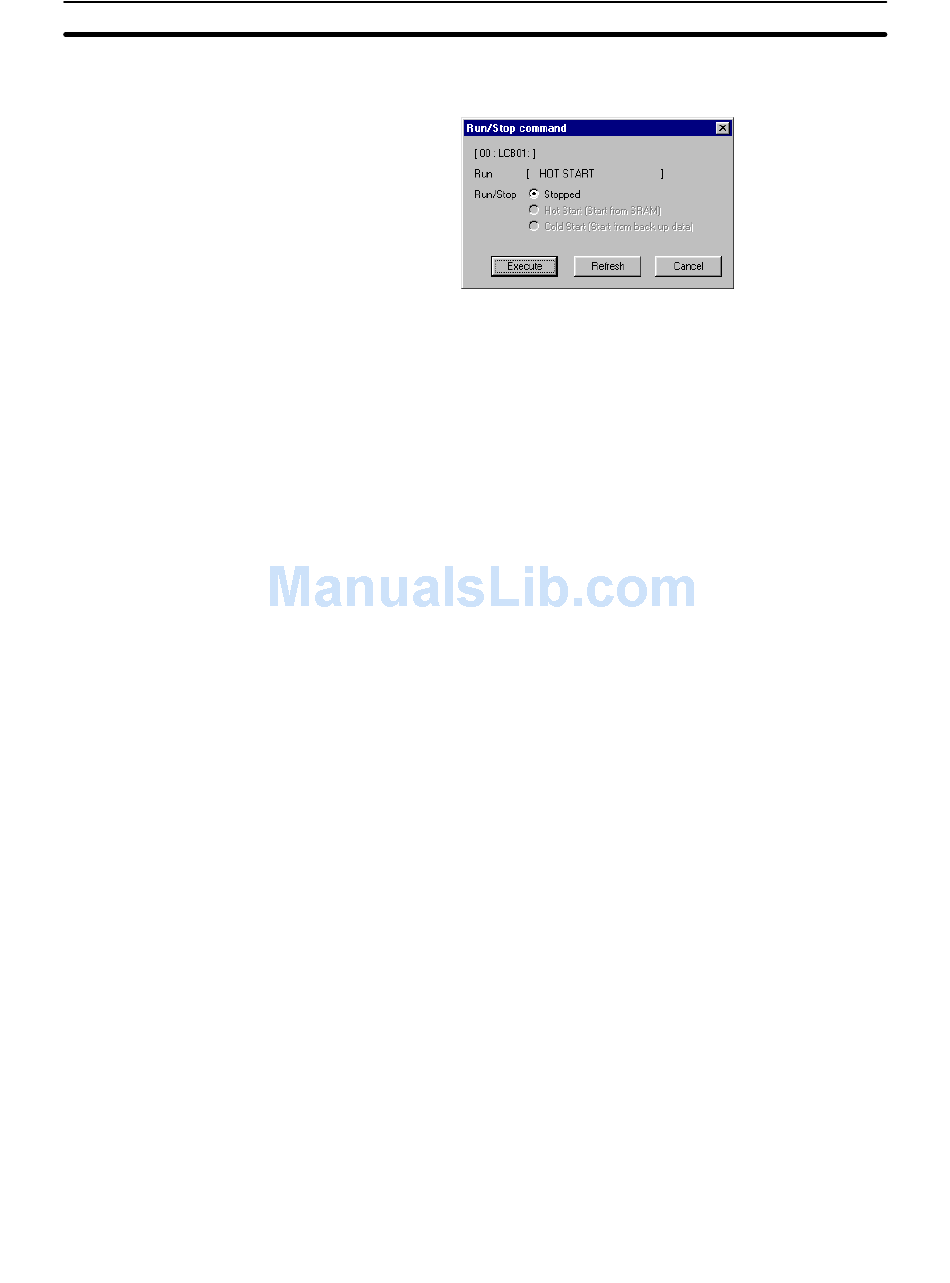

3. Click the Execute Button. As shown below, HOT START or COLD START
will appear in the Run Status Field.
4. To stop operating the Loop Control Unit/Board, select Stopped and click the
Execute Button.
Note The Run Status Field in the Run/Stop Command Dialog Box shows
the status of the dialog box opened or with the Execute Button
clicked. To refresh the status, click the Refresh Button.
Note 1. If Hot Start or Cold Start is selected after downloading function block data
that will change the operation cycle, a communications time-out error may
occur. In that case, close the Run/Stop Command Dialog Box for approxi-
mately 30 seconds, and then open the dialog box again and select Hot Start
or Cold Start.
2. A hot start or cold start will not be executed if Hot Start or Cold Start is se-
lected and the Execute Button is clicked when backing up data during op-
eration for the LCB01/LCB05 unit Ver. 1.5 or later, the LCB03, or the
LCB05D. If an attempt is made, an error will occur (error code: 110C).
