Creating Function Block
1, 2, 3...

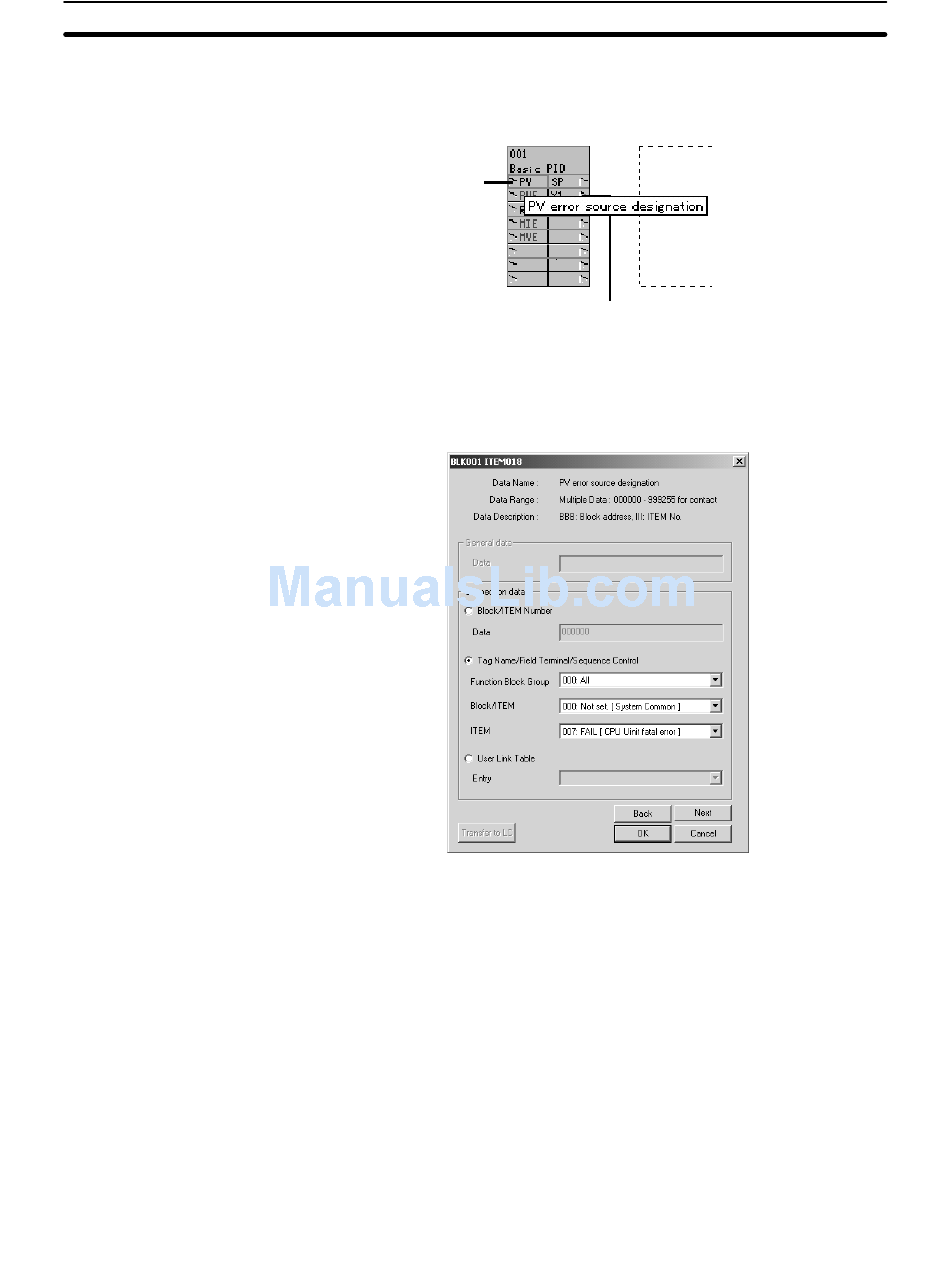

Example: Setting PV Error (PVE) Source in Basic PID Block
1. Select the blue ITEM.
2. Click the right mouse button and select Edit – Edit Connection from the
pop-up menu.
3. The following dialog box will appear. Select the Block/ITEM No. and input
the value, or select Tag Name/Field Terminal/Sequence Control and se-
lect from the Function Block Group, Block/ITEM, and ITEM pull-down
lists.
Note The pull-down list can be used only for LCBjj. If the destination is an ITEM, a
field terminal cannot be selected from the Block/ITEM pull-down list. To use a
field terminal, register a user link table and then select from the list.
