Timer and Counter Instructions
Description
Flags
Area
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers
When the timer input is OFF, the timer specified by N is reset, i.e., the timer's
PV is reset to the SV and its Completion Flag is turned OFF.
When the timer input goes from OFF to ON, TIM/TIMX(550) starts decrement-
ing the PV. The PV will continue timing down as long as the timer input
remains ON and the timer's Completion Flag will be turned ON when the PV
reaches 0000.
The status of the timer's PV and Completion Flag will be maintained after the
timer times out. To restart the timer, the timer input must be turned OFF and
then ON again or the timer's PV must be changed to a non-zero value (by
MOV(021), for example).
Timer input
SV
Timer PV
Completion
Flag

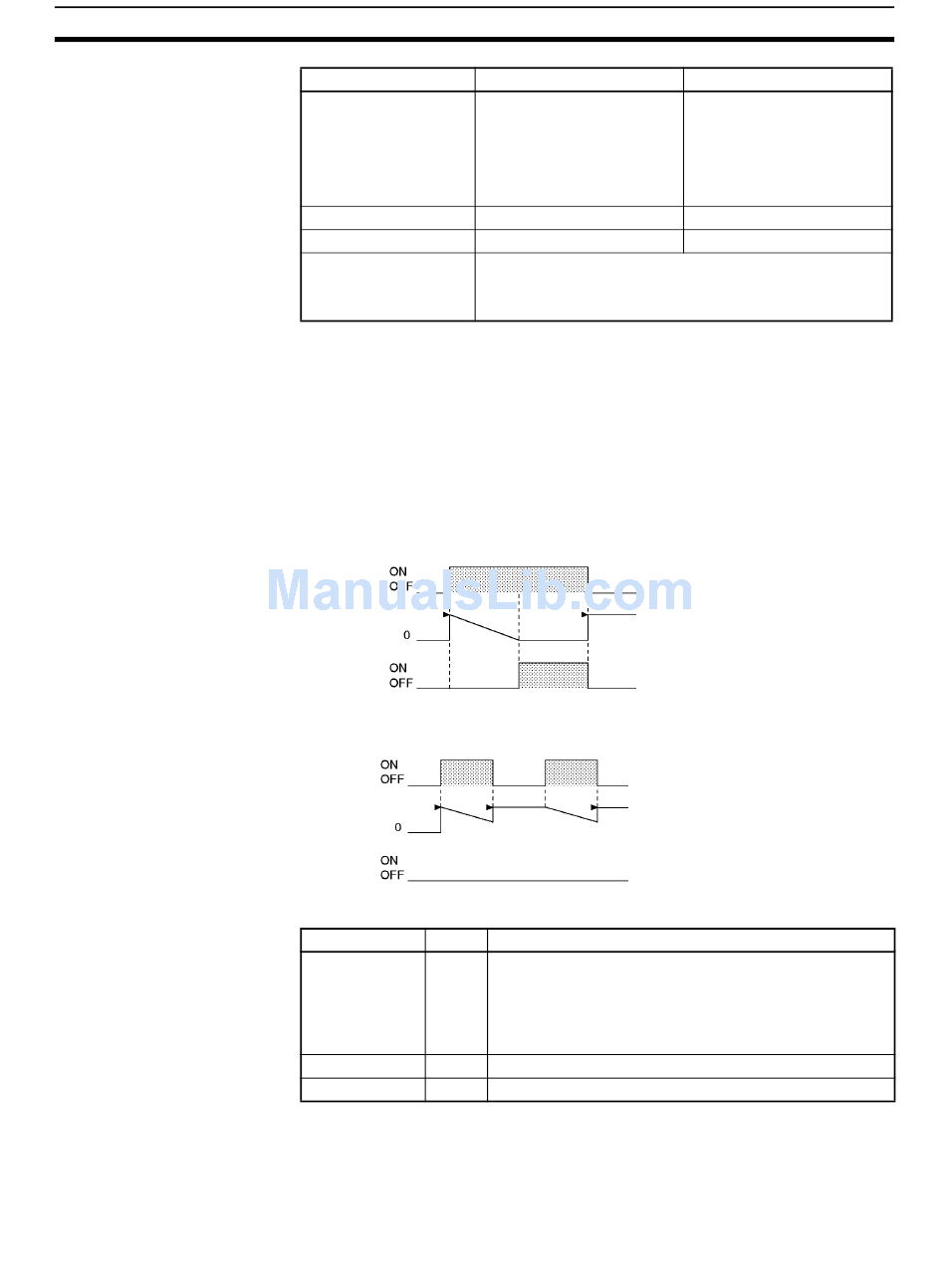

The following timing chart shows the behavior of the timer's PV and Comple-
tion Flag when the timer input is turned OFF before the timer times out.
Timer input
SV
Timer PV
Completion
Flag
Name Label
Error Flag ER
Equals Flag =
Negative Flag N
N
---
---
---
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
Operation
ON if N is indirectly addressed through an Index Register
but the address in the Index Register is not the PV
address of a timer.
ON if in BCD mode and S does not contain BCD data.
OFF in all other cases.
OFF or unchanged
OFF or unchanged
Section 3-5
S
BCD:
#0000 to 9999 (BCD)
"&" cannot be used.
Binary:
&0 to &65535 (decimal)
#0000 to #FFFF (hex)
DR0 to DR15
---
