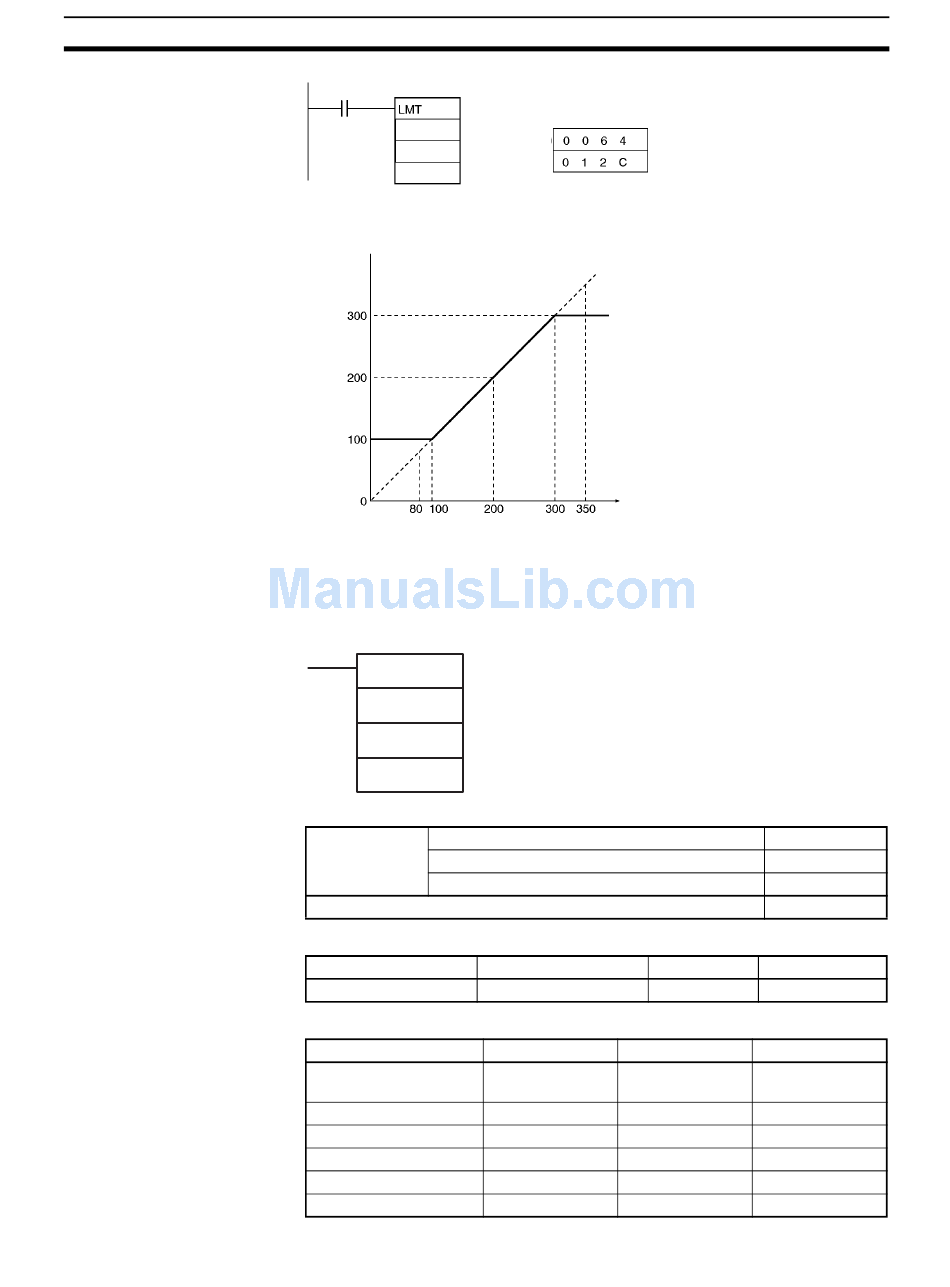

Data Control Instructions
3-17-4 DEAD BAND CONTROL: BAND(681)
Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
0.00
D100
D200
D300
D300
Controls output data according to whether or not input data is within the lower
and upper limits of the range (dead band range.)
BAND(681)
S: Input word
S
C C: First limit word
D D: Output word
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification
Block program areas
OK OK
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
Lower limit: 100
C: D200
D201 Upper limit: 300
D100
Step program areas Subroutines
OK
S
CIO 0 to CIO 0 to
CIO 6143 CIO 6142
W0 to W511 W0 to W510
H0 to H511 H0 to H510
A0 to A959 A0 to A958
T0000 to T4095 T0000 to T4094
C0000 to C4095 C0000 to C4094
Section 3-17
BAND(681)
@BAND(681)
Not supported.
Interrupt tasks
OK
C D
CIO 0 to
CIO 6143
W0 to W511
H0 to H511
A448 to A959
T0000 to T4095
C0000 to C4095
