LPOD-R Outdoor Amplifier / Block Up Converter
Ethernet Interface Operation
Alarm Mask
Use the drop-down list to select the Low Forward RF Power alarm as Fault,
Alarm, or Masked.
Click Change Alarm Mask to save these settings.

4.5.4.5 Status | Statistics

This page shows all unread, stored statistics. Use it to configure how the LPOD-R
handles and shows statistics. Refresh the page to see the latest data.

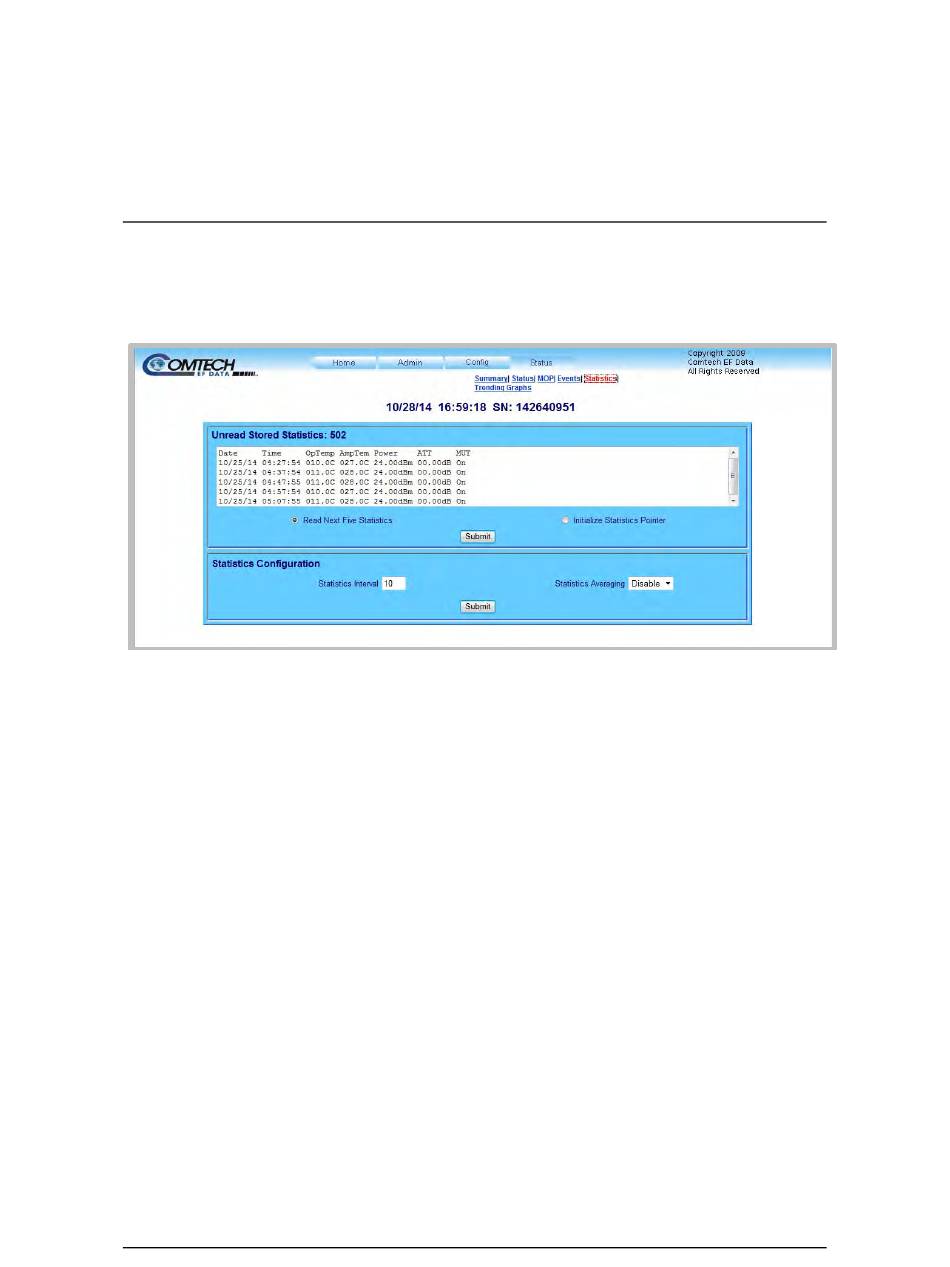

Figure 4-15. Status | Statistics Page
Unread Stored Statistics: ###
This window shows the unread stored statistics log in sequential, date-stamped
format. This page shows a running tally of the number of unread stored statistics
in the window header. The unit shows the five oldest stored statistics. All events
that are read from the log are removed from the log automatically.
• Select Read Next Five Statistics to cause the unit to return the oldest five
unread stored statistics that remain unread in the log. If fewer than five
events are available for retrieval, the remaining positions are padded
with zeros. If there are no new events, the counter in the header reads
000.
4–21
MN-LPODR
Revision 3
