LPOD-R Outdoor Amplifier / Block Up Converter (BUC)
System Connectors, Installation, and Startup
The assembled kit appears as shown in the top and side view example shown
in Figure 2-8. Depending on the application, you may proceed to the next
phase of installation.

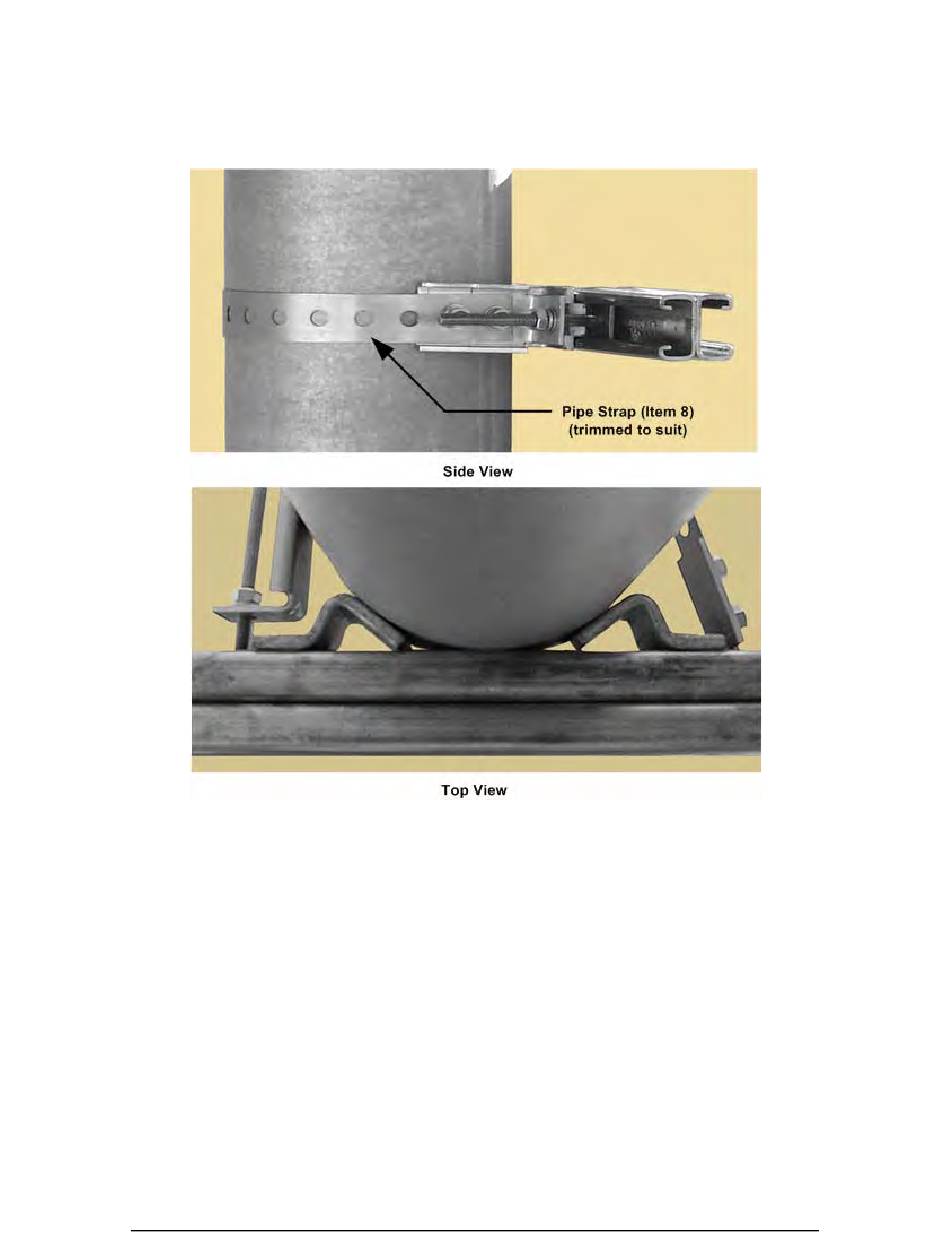

Figure 2-8. Universal Pole Mounting Kit – Final Assembly
2–18
MN-LPODR
Revision 3
