LPOD-R Outdoor Amplifier / Block Up Converter (BUC)
System Connectors, Installation, and Startup
2.3.1

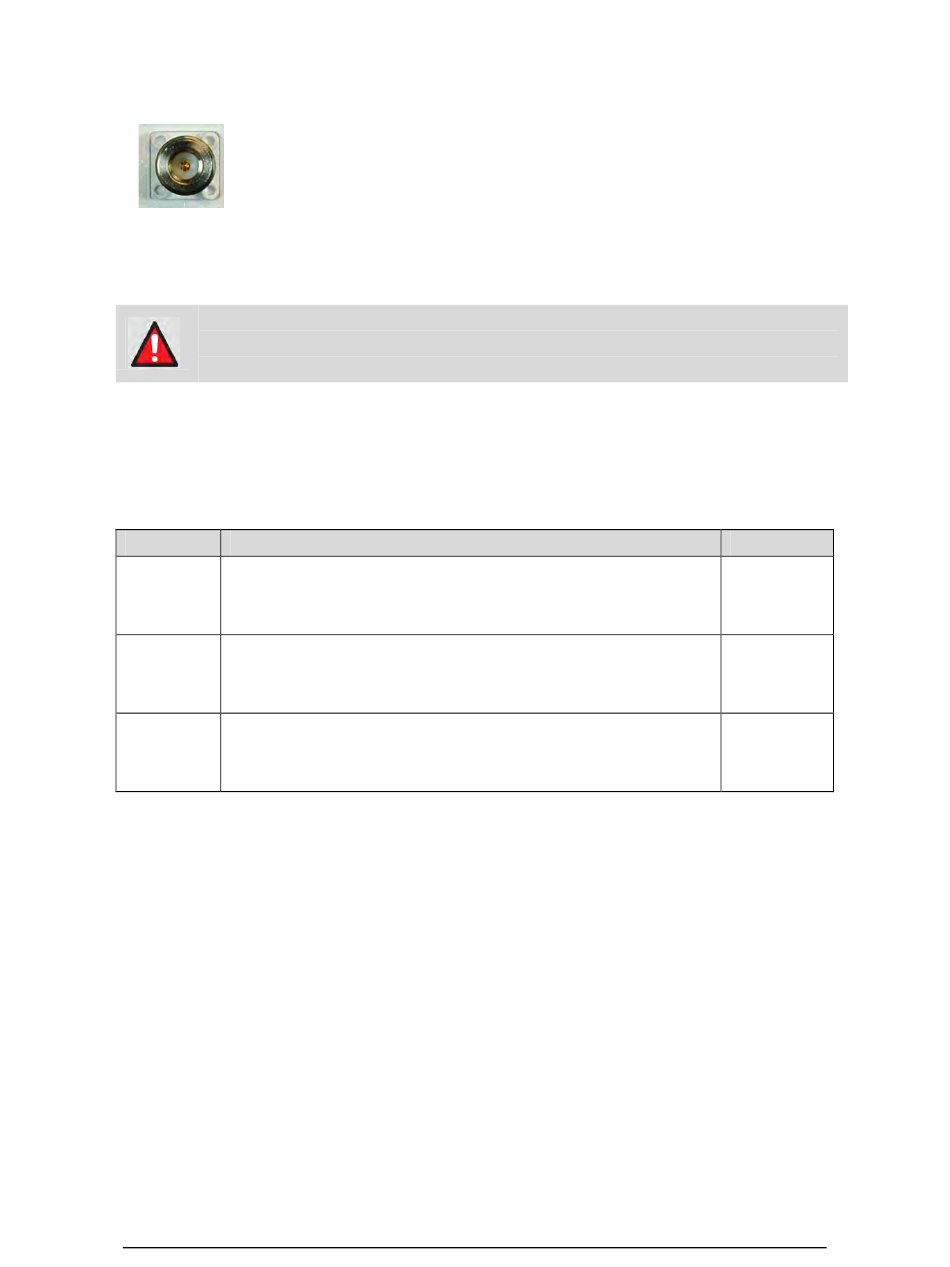

'J1 | LBAND IN' Signal Input Port

The 'J1 | LBAND IN' RF input connector is a Type 'N' female
connector. Typical input levels (-30 dBm) depend on desired output
power and unit attenuation. To prevent damage to the LPOD-R, RF
input levels must not exceed +15 dBm.
2.3.2

'J2 | RF OUT' Signal Output Interface

WARNING!
FOR SAFETY REASONS, NEVER LOOK DIRECTLY INTO THE WAVEGUIDE
OUTPUT.
The 'J2 | RF OUT' connector may be a waveguide or coaxial interface – this
depends on the LPOD-R model and/or frequency range of the unit. See Figure
2-1 through Figure 2-3 and Table 2-1.

Table 2-1. 'J2 | RF OUT' Interface Type

Unit Frequency / Output Type
C-Band: CPR137G (Grooved)
PS .5 Ku-Band: WR75G (Grooved) – 8W unit
C-Band: Type 'N' Female (optional CPR137G, Grooved)
PS 1 X-Band: CPR112G (Grooved)
Ku-Band: WR75 (No Groove)
C-Band: CPR137G (Grooved)
PS 1.5 X-Band: CPR112G (Grooved)
Ku-Band: WR75 (No Groove)
-OR- WR75 (No Groove) – 16W unit
2–4
MN-LPODR
Revision 3
See...
Figure 2-1
Figure 2-2
Figure 2-3
